7-34 Configuring Logix Controllers

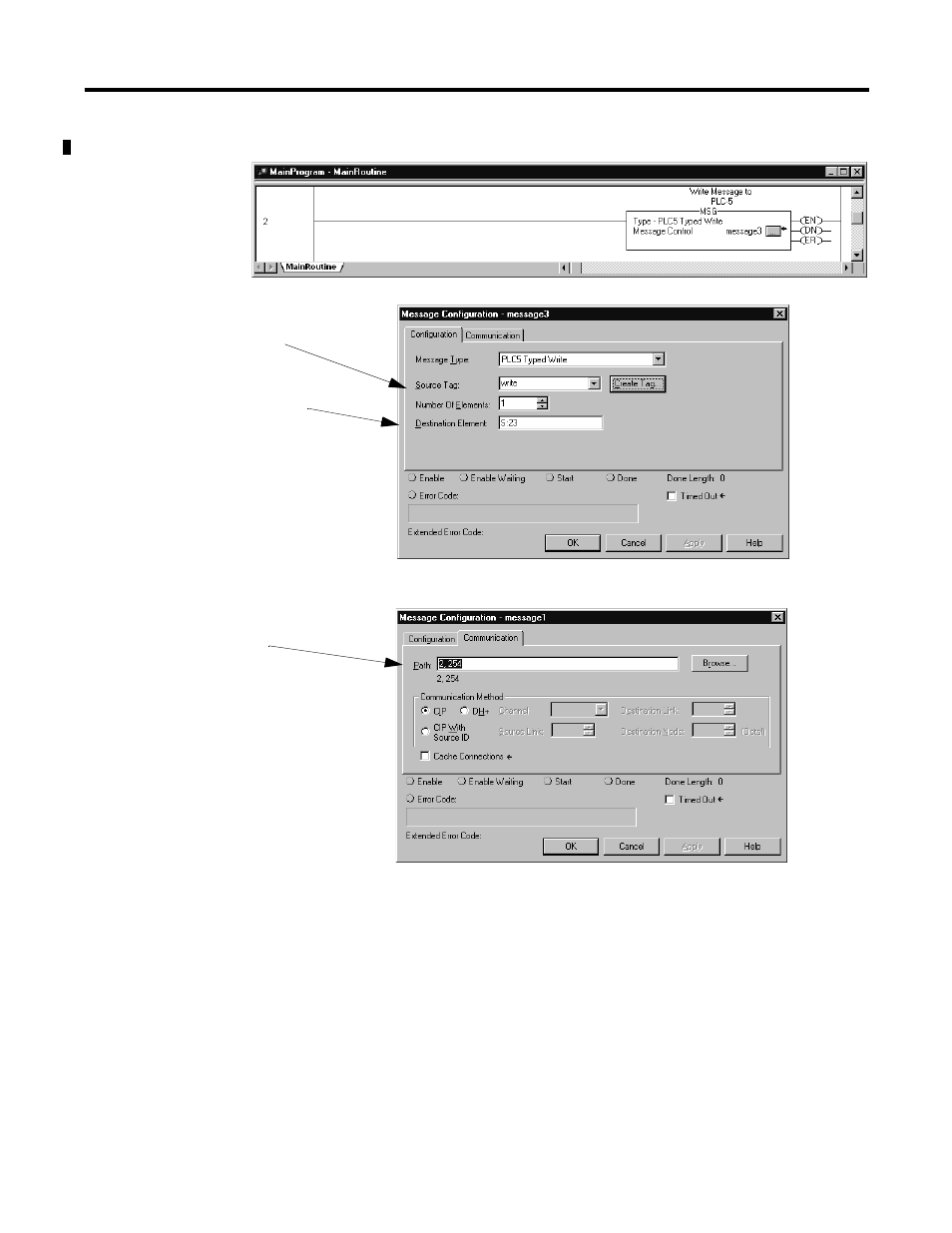

Figure 7.10 Example of a Write MSG From a Logix to a PLC-5 or SLC 500 Controller

Local controller scoped tag containing data
to be written.

Remote PLC-5 data table address into which
data will be written.

Path (out serial port) to station (199).
