Publication AG-UM008C-EN-P - February 2005
3-42 Configuring MicroLogix 1100/1200/1500 Controllers
Example MSG Control
Blocks

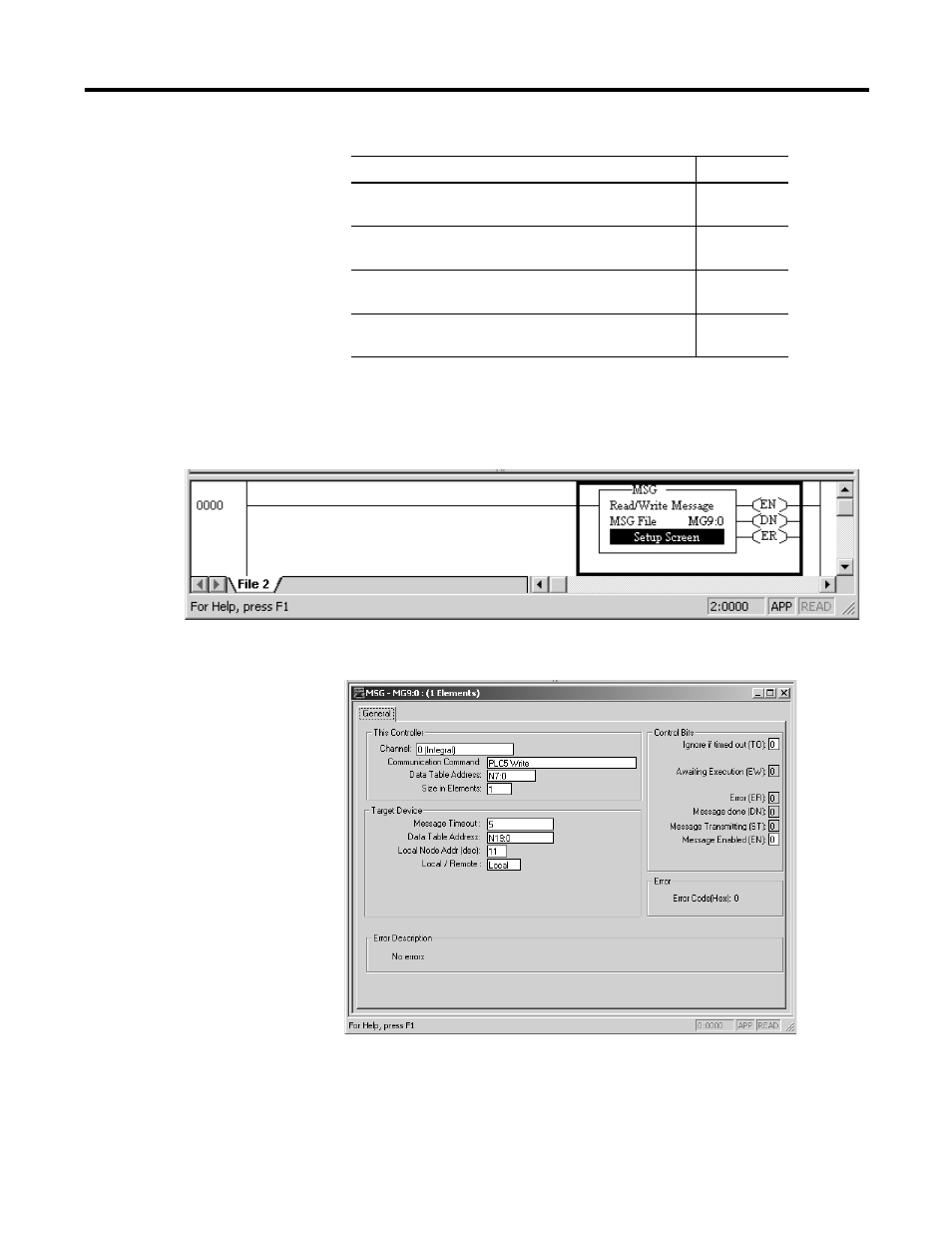

Figure 3.7 Write MSG from an MicroLogix 1100/1200/1500 controller to a PLC-5
Processor or Logix Controller
This MSG example tells the MicroLogix 1100/1200/1500 master station
to write the information from its N7:0 through its serial port to the
PLC-5 slave station 11
10
. The data’s destination is N19:0 of the PLC-5
Application See page
MicroLogix 1100/1200/1500 write message to a PLC-5 or
Logix controller 3-42
MicroLogix 1100/1200/1500 read message to a PLC-5 or
Logix controller 3-43
MicroLogix 1100/1200/1500 write message to another
SLC 500 or MicroLogix controller 3-44
MicroLogix 1100/1200/1500 read message to another
SLC 500 or MicroLogix controller 3-45
