Publication AG-UM008C-EN-P - February 2005
Configuring Logix Controllers 7-3
Installing the Controller For details about installing the controller, see the Logix Controller
Installation Instructions.
For cable pin assignments, see below, or page A-5.

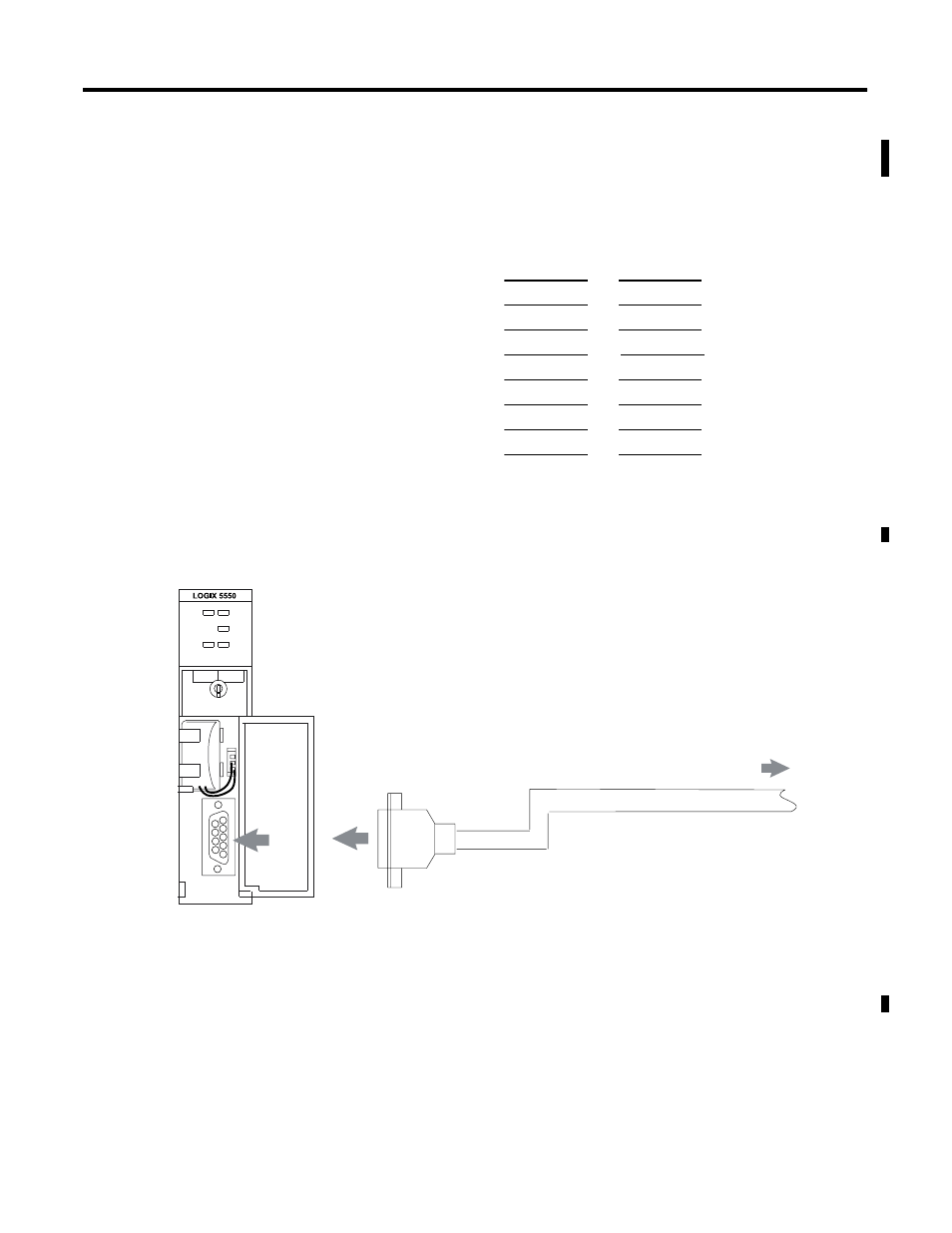

Figure 7.2 Logix Serial Port Pin Assignments
Using Modems that Support
DF1 Communication
Protocols The types of modems that you can use with Logix controllers include
dial-up phone modems, leased-line modems, radio modems and line
drivers. For point-to-point full-duplex modem connections, use DF1
full-duplex protocol. For point-to-multipoint modem connections, use
DF1 half-duplex master and slave protocols. In this case, one (and
only one) of the other devices must be configured for DF1 half-duplex
master protocol.
9-pin female 25-pin Modem 9-pin Modem
DCD.IN 1 8 1
RXD.IN 2 3 2
TXD.OUT 3 2 3
DTR.OUT 4 20 4
SIG.GND 5 7 5
DSR.IN 6 6 6
RTS.OUT 7 4 7
CTS.IN 8 5 8
RS-232
I/O RUN
OK
RUN REM PROG
BAT
9-pin female cable connector
to modem
