Publication AG-UM008C-EN-P - February 2005
Configuring MicroLogix 1000 Controllers 6-21

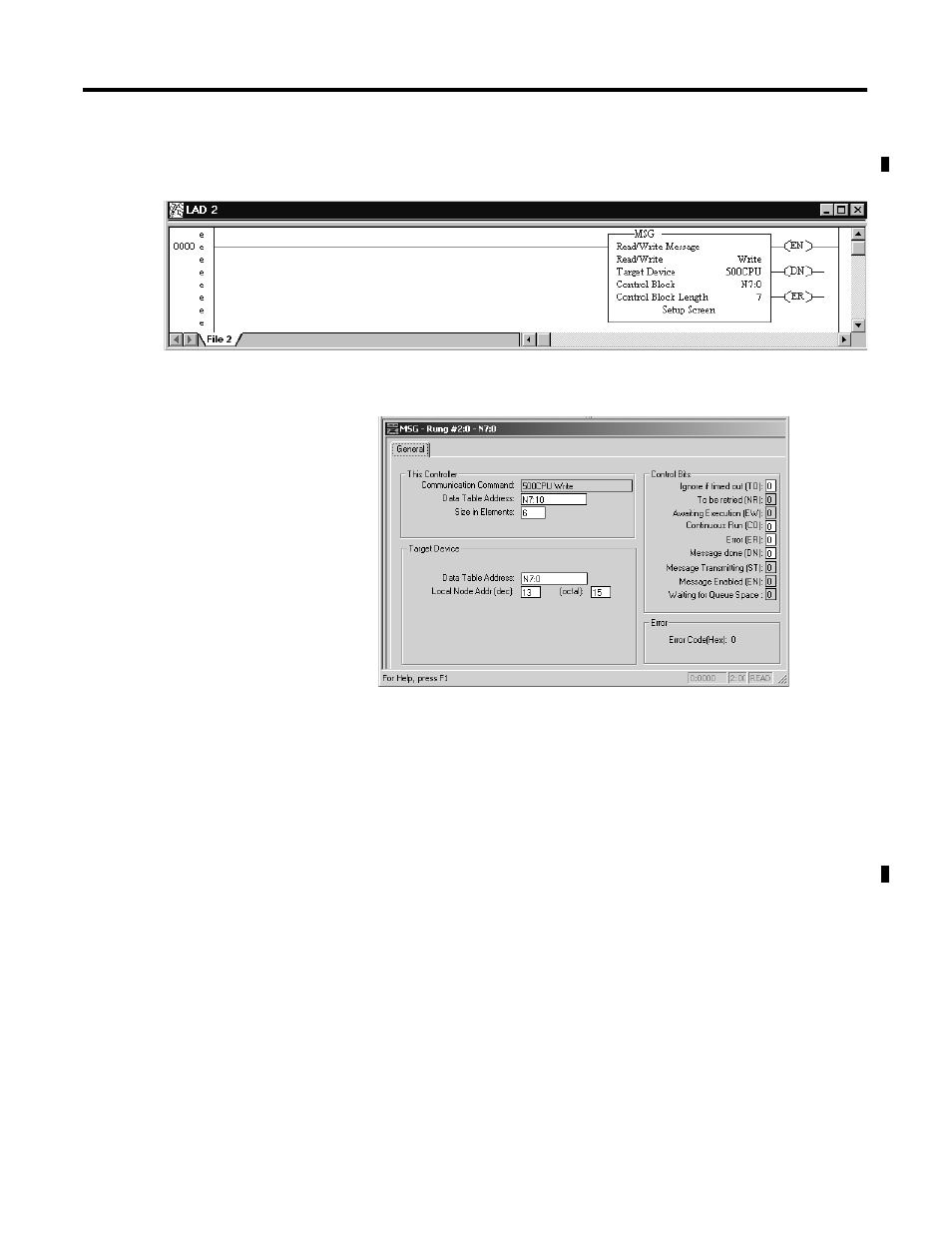

Figure 6.7 Write MSG Instruction from a MicroLogix 1000 Controller to a
Micrologix, SLC 500 or Logix Controller
In this example, MicroLogix 1000 station 3 is issuing a write request to
station 13
10
.
Station 3 wants to write the information from its N7:10-N7:15 into the
station 13
10
data files N7:0-N7:5.
For a Logix controller, a controller-scoped tagname must be mapped
to N7.
ladder rung
setup screen
