Rockwell Automation DAG6.5.8 APPLICATION GUIDE SCADA SYSTEM User Manual
Page 259
Publication AG-UM008C-EN-P - February 2005
Configuring Logix Controllers 7-33

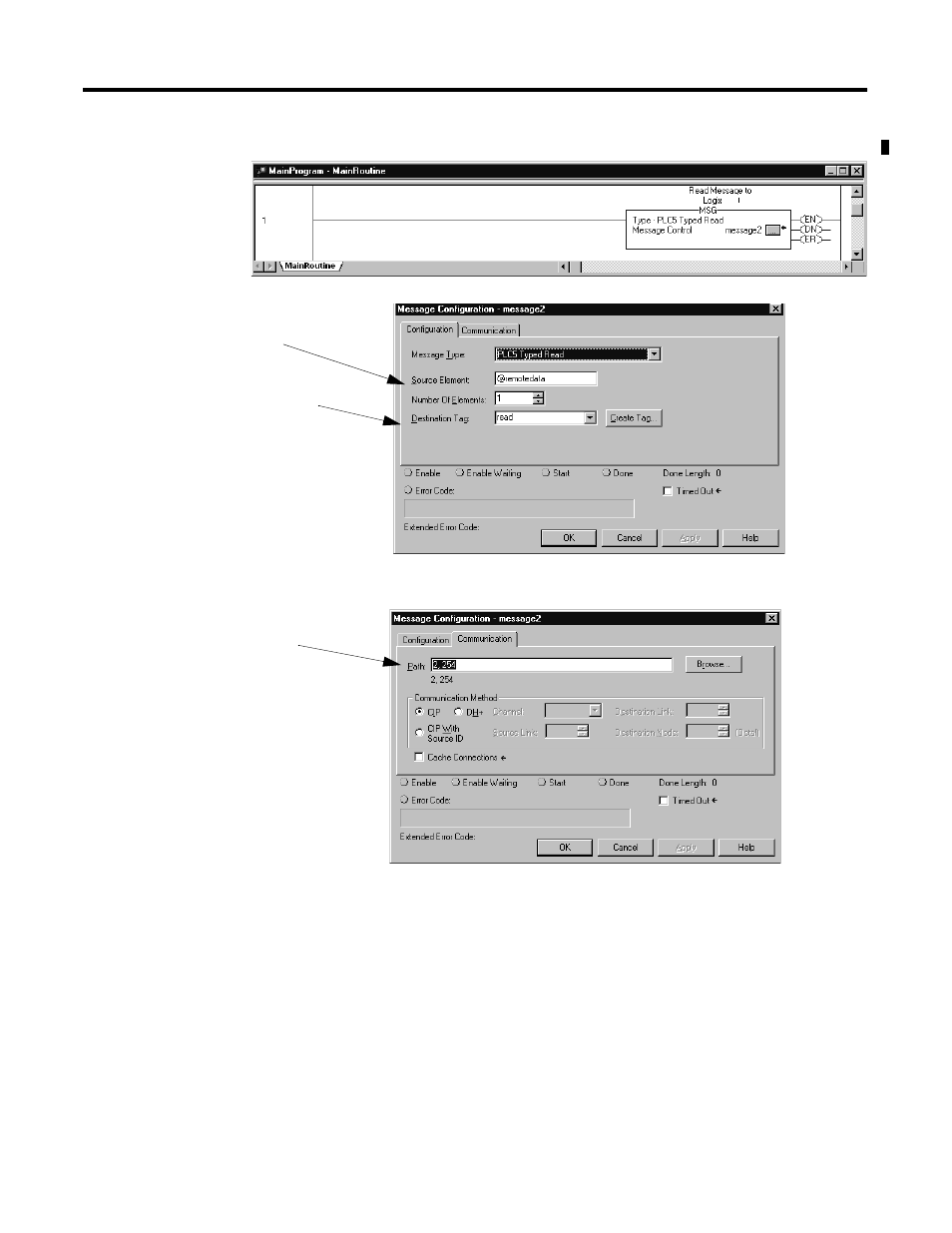

Figure 7.9 Example of a Read MSG from a Logix to a Logix Controller
Remote controller scoped tag where data
will be read from.
Local controller scoped tag into which data will
be copied.
Path (out serial port) to station (254).
