514 Appendix D Working with Apogee Hardware in Soundtrack Pro
Outputs Tab

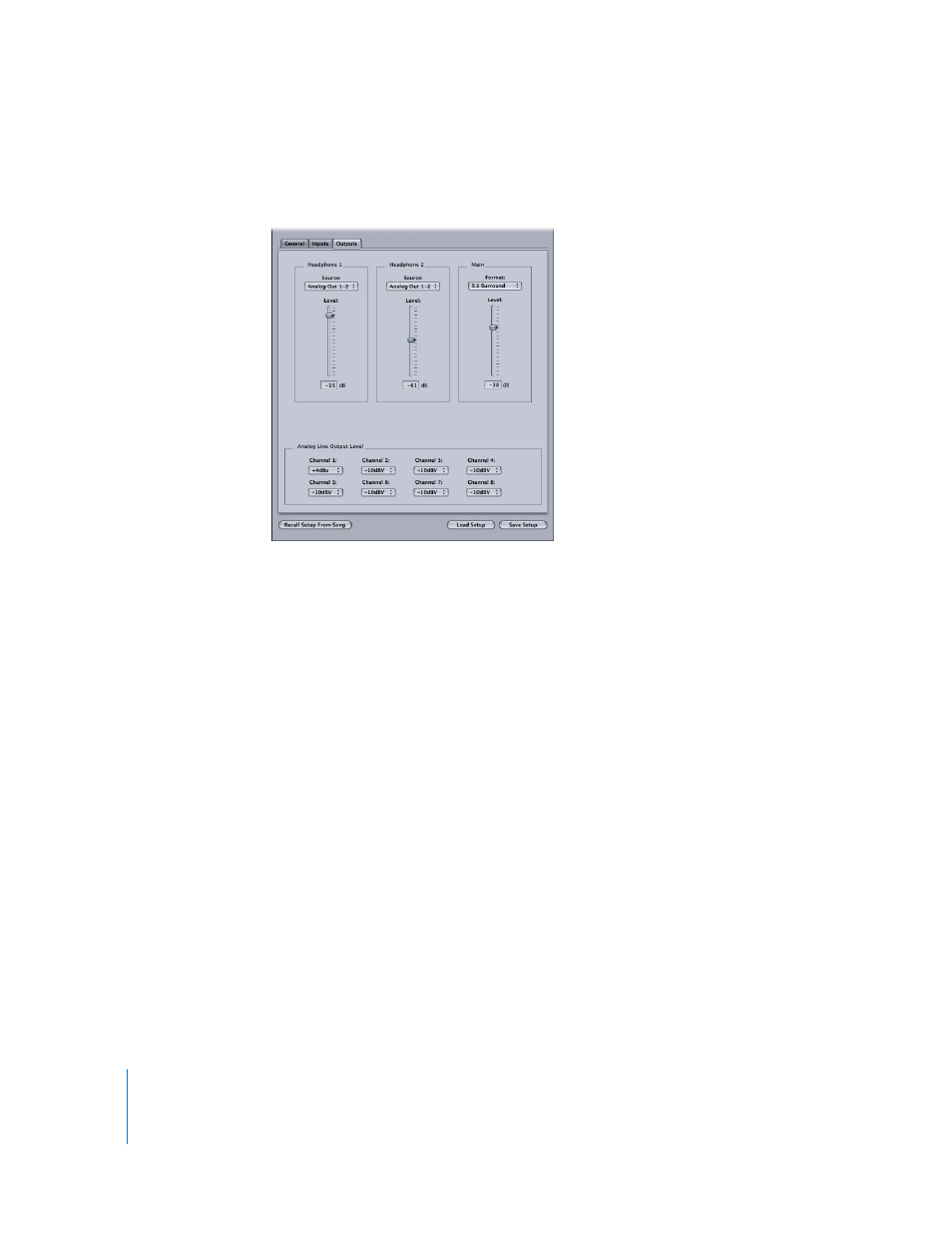

This tab is used to configure the outputs of your Apogee hardware.
Headphone Parameters
These options configure the output signal for the headphone outputs.
 Source pop-up menu: Determines which output pair is sent to the headphone outputs.
Options are Analog Out 1–2, Analog Out 3–4, Analog Out 5–6, Analog Out 7–8,
Optical Out 1–2, Optical Out 3–4, Optical Out 5–6, Optical Out 7–8, and S/PDIF Out.
 Level slider: Sets the level of the headphone outputs.
Main Parameters
The Format pop-up menu allows you to choose the output channels that you wish to
control with the Main Level slider. Values are Stereo, 5.1 Surround, and 7.1 Surround.
Analog Line Output Level Settings
Choose either the +4 dBu or –10 dBV option from the respective Channel pop-up
menu to determine the reference level for each of your eight analog line outputs.
Setup Buttons
The bottom of the Apogee hardware control panel offers three buttons that allow you
to load and save your configuration settings.
 Recall Setup From Song: Loads the configuration saved with the song.
 Load Setup: Opens a file selector box, allowing you to load a stored configuration.
 Save Setup: Opens a file selector box, allowing you to save the current configuration.
