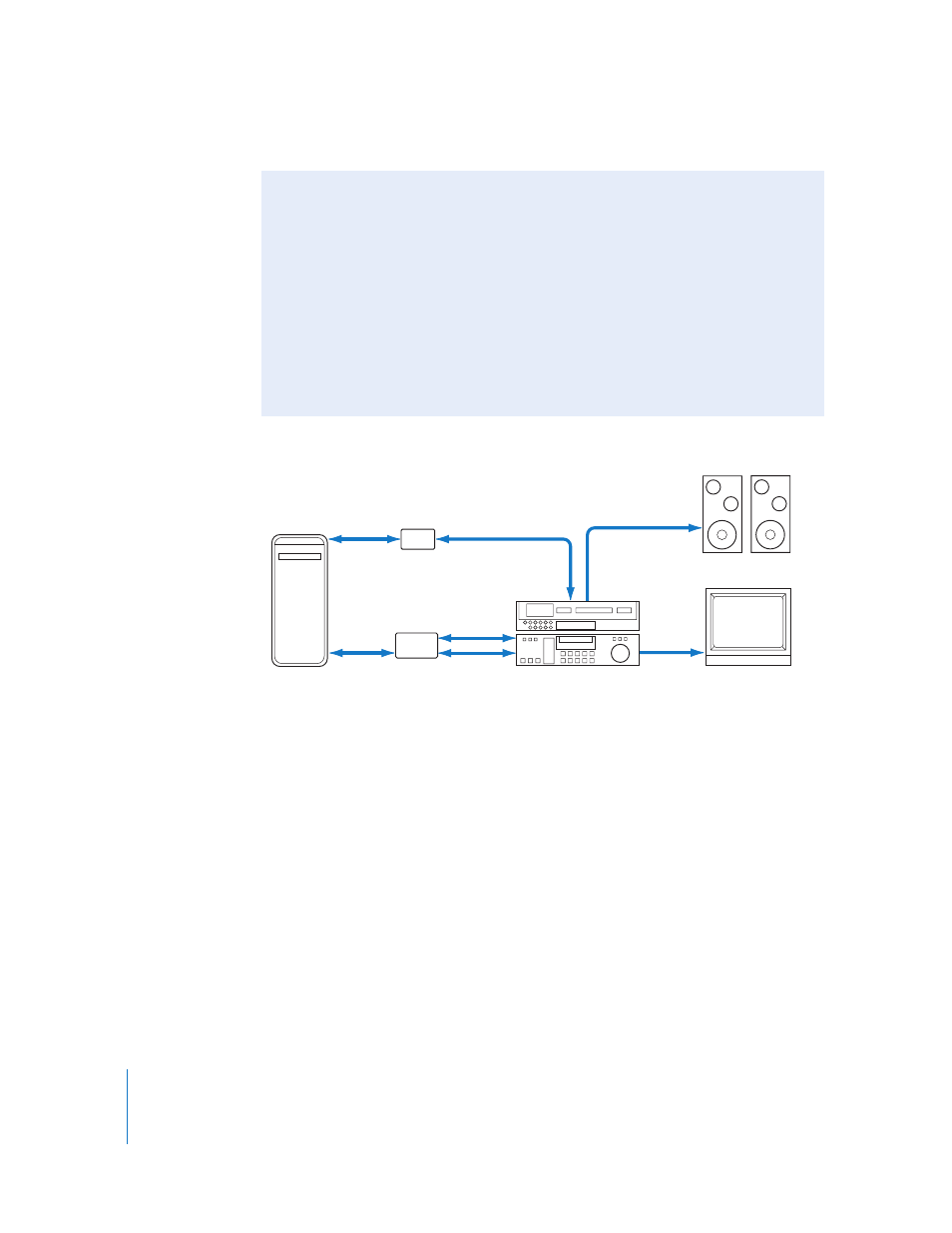

The following illustration shows a typical non-DV-to-DV setup:
To connect video and audio outputs from your VTR to your analog-to-DV
or digital-to-DV converter:
1 With your DV converter turned off, connect the 6-pin connector on the FireWire cable
to the FireWire port on your computer.
2 Connect the 4-pin connector on the FireWire cable to the DV converter.
3 Connect the video output of your VTR to the video input of the DV converter.
4 Connect the audio output of your VTR to the audio input of the DV converter.
Note: The DV converter mentioned above could possibly be a DV VTR that can convert
analog video and audio input to DV FireWire. Some decks need to be in record mode
to allow this conversion. Other decks may not support this.
5 Connect the remote device control.
A Recommended Non-DV-to-DV System Using Serial Device Control
You need the following equipment:
 Your computer and display
 A non-DV format playback device, such as a Betacam SP or Digital Betacam deck
 An analog-to-DV or digital SDI-to-DV converter
Note: Some DV camcorders and VTRs can also act as an analog-to-DV converter.
 A 4-to-6-pin FireWire cable, available at an electronics store or an Apple Authorized
Reseller
 A USB-to-serial adapter or internal modem serial port adapter
 An RS-422 video deck control cable
FireWire
USB
Analog or digital VTR Computer
USB-to-serial
adapter
DV converter Standard definition
monitor
Video
Audio
RS-422 serial
Audio
Video
Amplified speakers
