K-Config
–
Using the Triggers
87
10. Select Timer Trigger State Start and click Add to List:

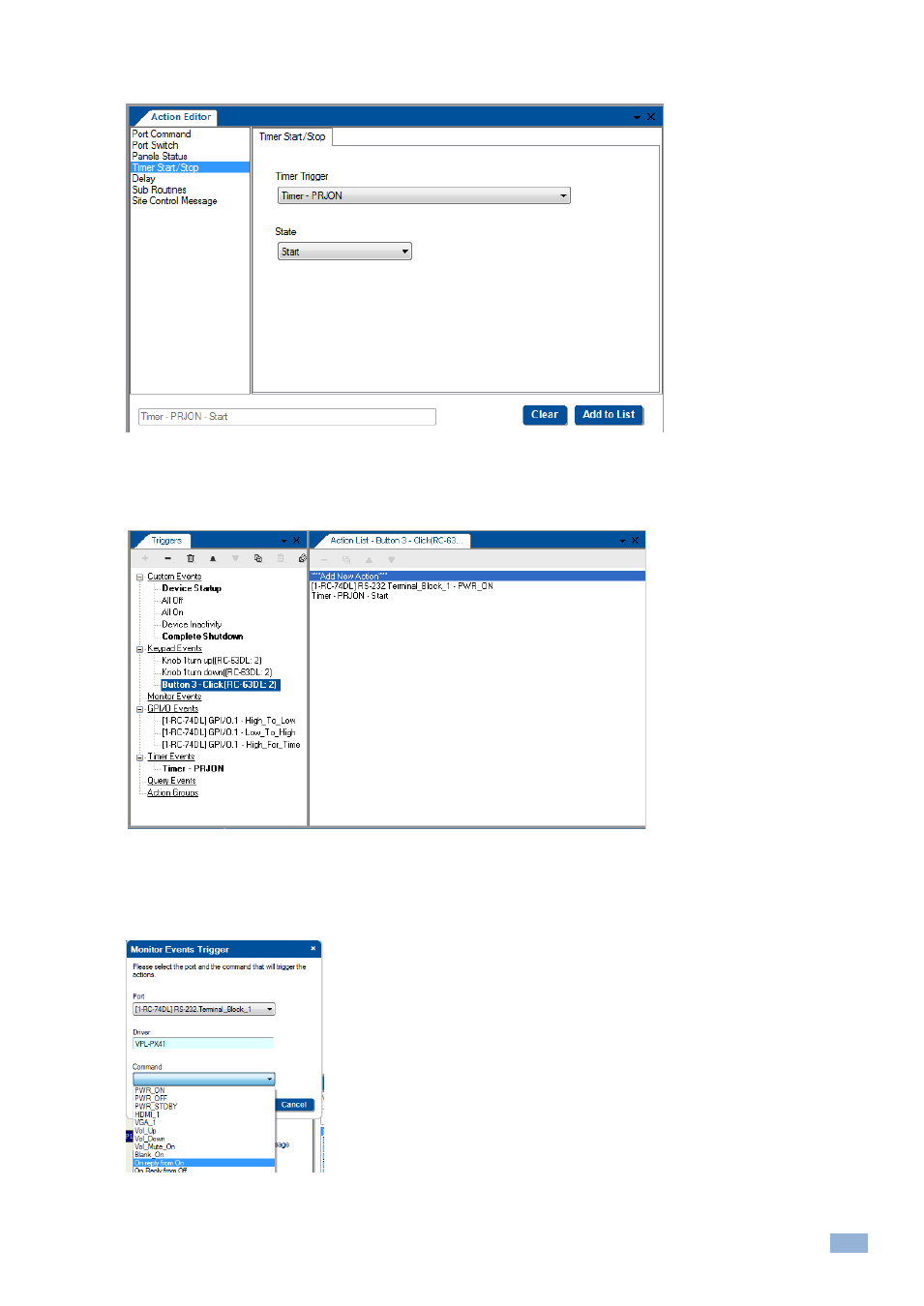

Figure 153: Timer Events
– Selecting the Timer Start/Stop Action (Start State Selected)
The button trigger includes powering on the projector and starting the Timer Trigger. The Timer trigger actions will be
executed within 5 seconds unless they are interrupted by the monitor event.
Figure 154: Timer Events
– Active Button Trigger Action List
Step III: Define the Monitor Event
11. Add a monitor event trigger and select the On reply from On command:
Figure 155: Timer Trigger
– Add the Monitor Event
