1 button behavior, Figure 130: keypad events, Selecting a button – Kramer Electronics WP-501 User Manual
Page 82: Figure 131: keypad events, Setting the button behavior, Figure 132: select the button behavior

K-Config
–
Using the Triggers
77

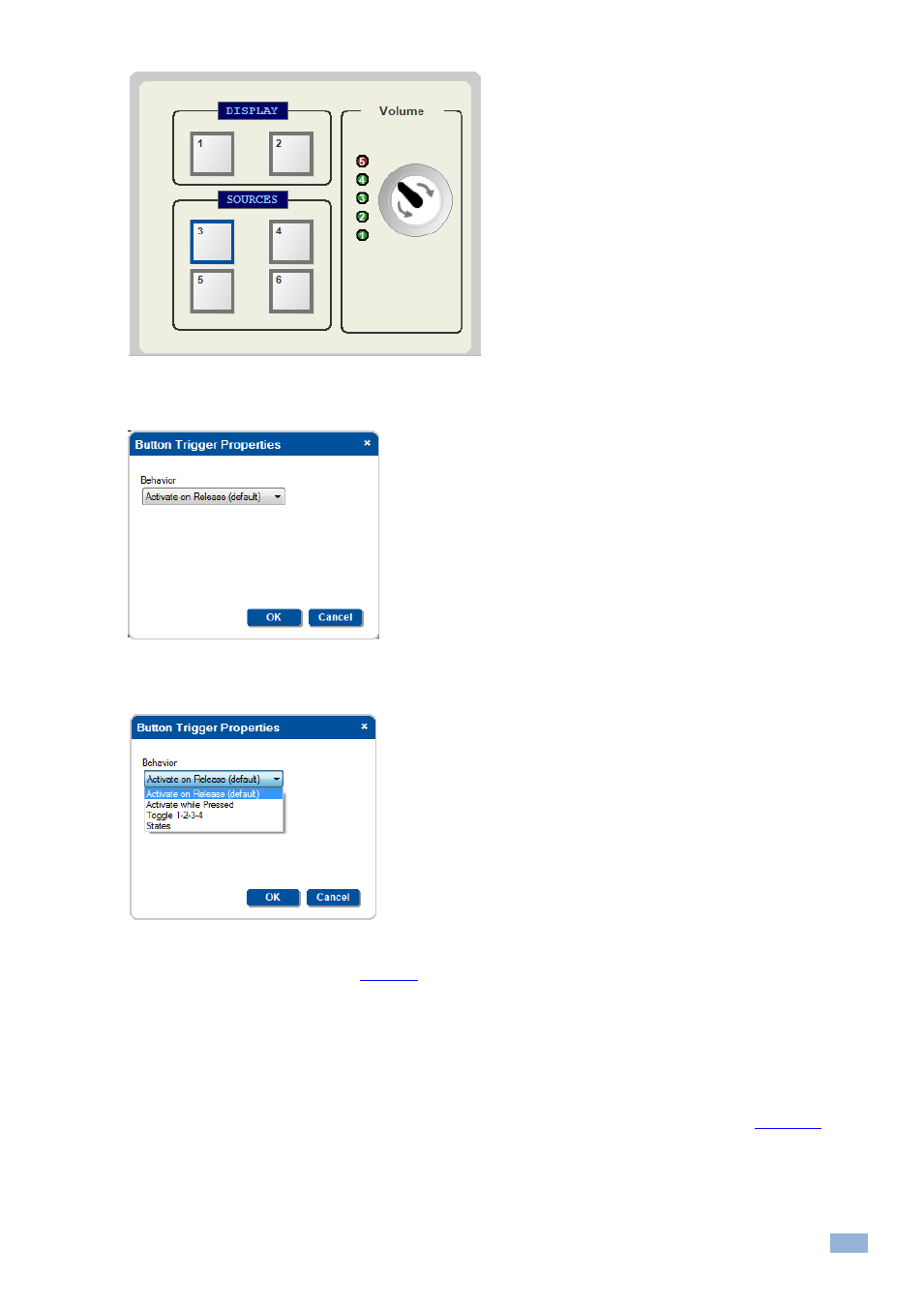

Figure 130: Keypad Events
– Selecting a Button
The Button Trigger Properties window appears:
Figure 131: Keypad Events
– Setting the Button Behavior
2.
Select the type of behavior:
Figure 132: Select the Button Behavior
3.
Add actions to the trigger (see
8.2.1
Button Behavior
You can select one of four button behavior options:
Activate on Release: activates the trigger upon release
Activate while Pressed: the trigger is activated again and again as long as the button is pressed. You can set
the trigger delay time (Start After
…), as well as the repetition delay time (Repeat Every…), see
Note that time is set in 1/10th of a second intervals
