82 K-Config - Using the Triggers

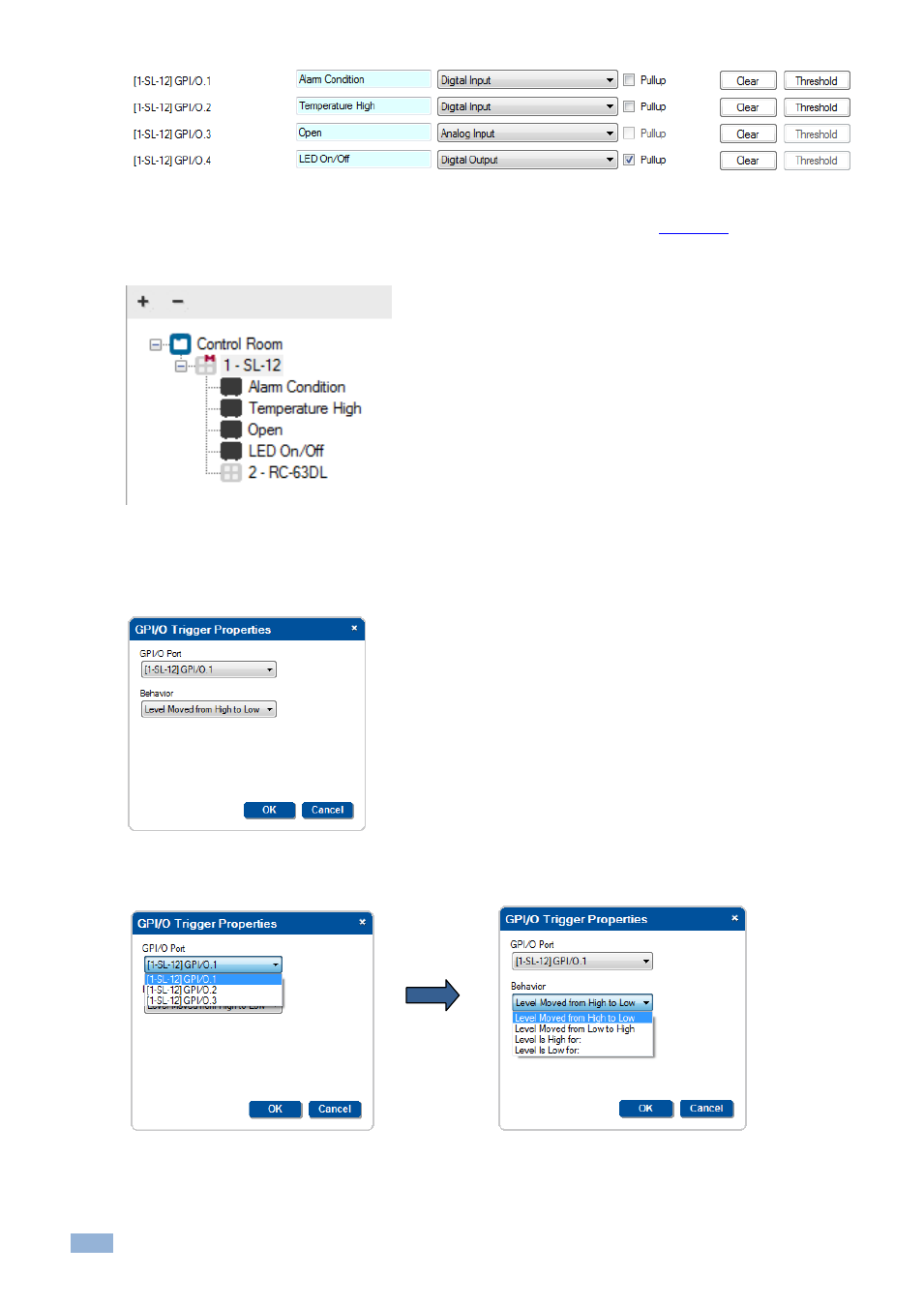

Figure 140: GPI/O Events – Port Manager Setup
Digital output acts in the same way as do relays so it cannot be used as a trigger (see Section 9.3 ).
Once the Master RC is set, the GPI/O Events appears in the Project Navigator:
Figure 141: GPI/O Events – GPI/O in Project Navigator
To create a GPI/O event:
1. Select GPI/O Events and click + to create a new GPI/O trigger. The following window appears:
Figure 142: GPI/O Events – GPI/O Trigger Properties
2. Select the GPI/O relay from the list and its behavior:
Figure 143: GPI/O Events – Digital Input: Selecting the GPI/O Port and Behavior
