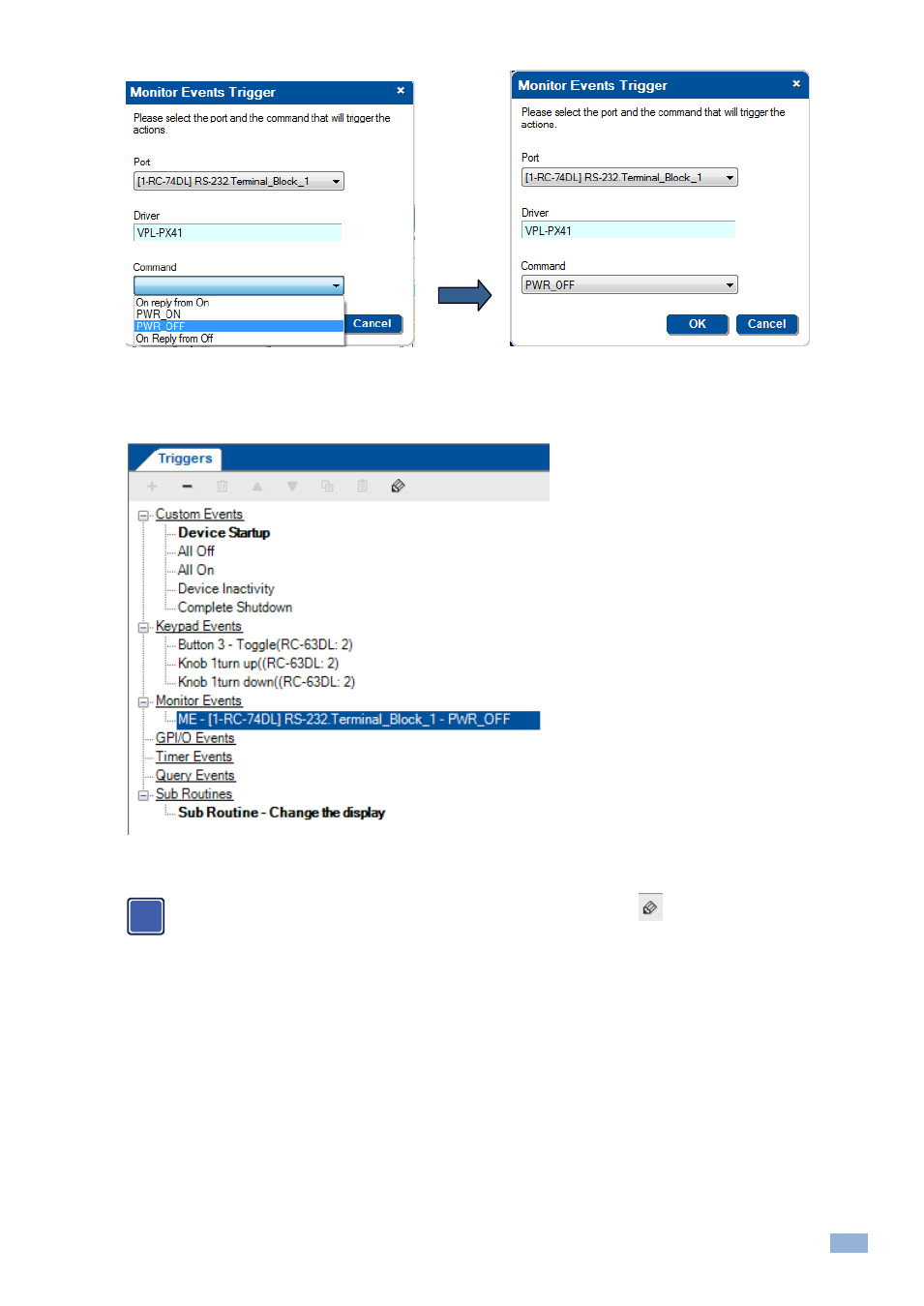

Figure 138: The Monitor Events Trigger Window
1.
Click OK.
The Monitor Event is added to the available Triggers list:
Figure 139: Adding a Monitor Event to the Available Triggers List
You can edit the trigger to respond to a different command by clicking the
button.
2.
Add actions to the trigger.
8.4
GPI/O Events
The GPI/O (General Purpose Input/Output) port can be configured via the K-Config software. Using GPI/O, you can
select a wide range of states that can trigger a series of actions, for example, when an alarm is set or if the room
temperature exceeds a certain value.
Only GPI/O ports on the Master RC can be used in the Room Control setup (SL-12 is the Master RC in this example).
The GPI/O relays are set in the port manager as follows:
i
