86

K-Config - Using the Triggers

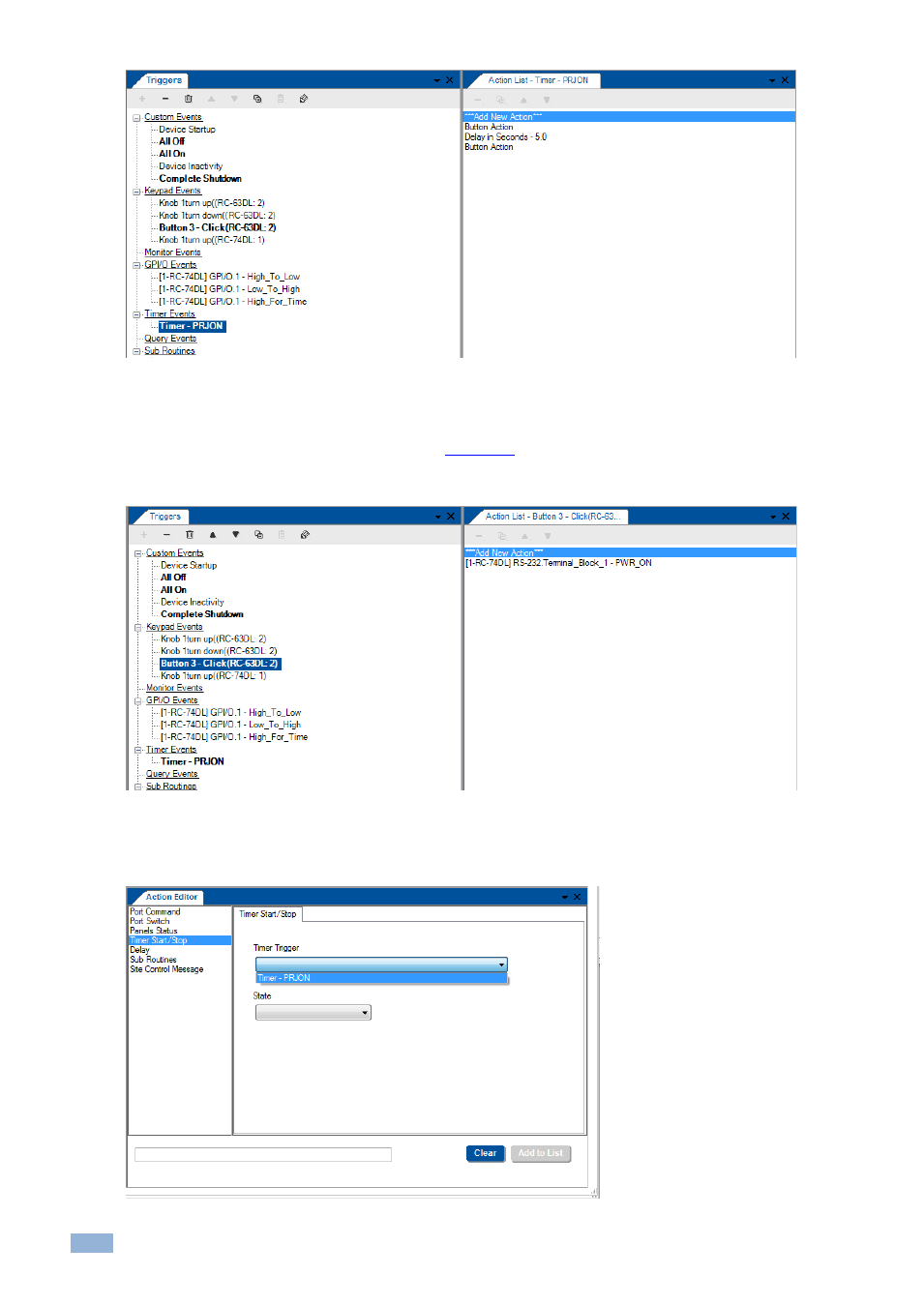

Figure 150: Timer Events

– the Timer Trigger Action List

Step II: Define the Button Trigger

7.

Define a button trigger: Button 3 - Click (see

Section

8.2

).

8.

From the Action Type list select Port Command and add the projector power on (PWR_ON) command:

Figure 151: Timer Events

– Projector Power On Command in the Button Trigger Action List

9.

From the Action Editor list select Timer Start/Stop and select the relevant Timer Trigger (in this example,

Timer

– PRJON):

Figure 152: Timer Events

– Selecting the Timer Start/Stop Action
