K-Config

Getting to Know K-Config

21

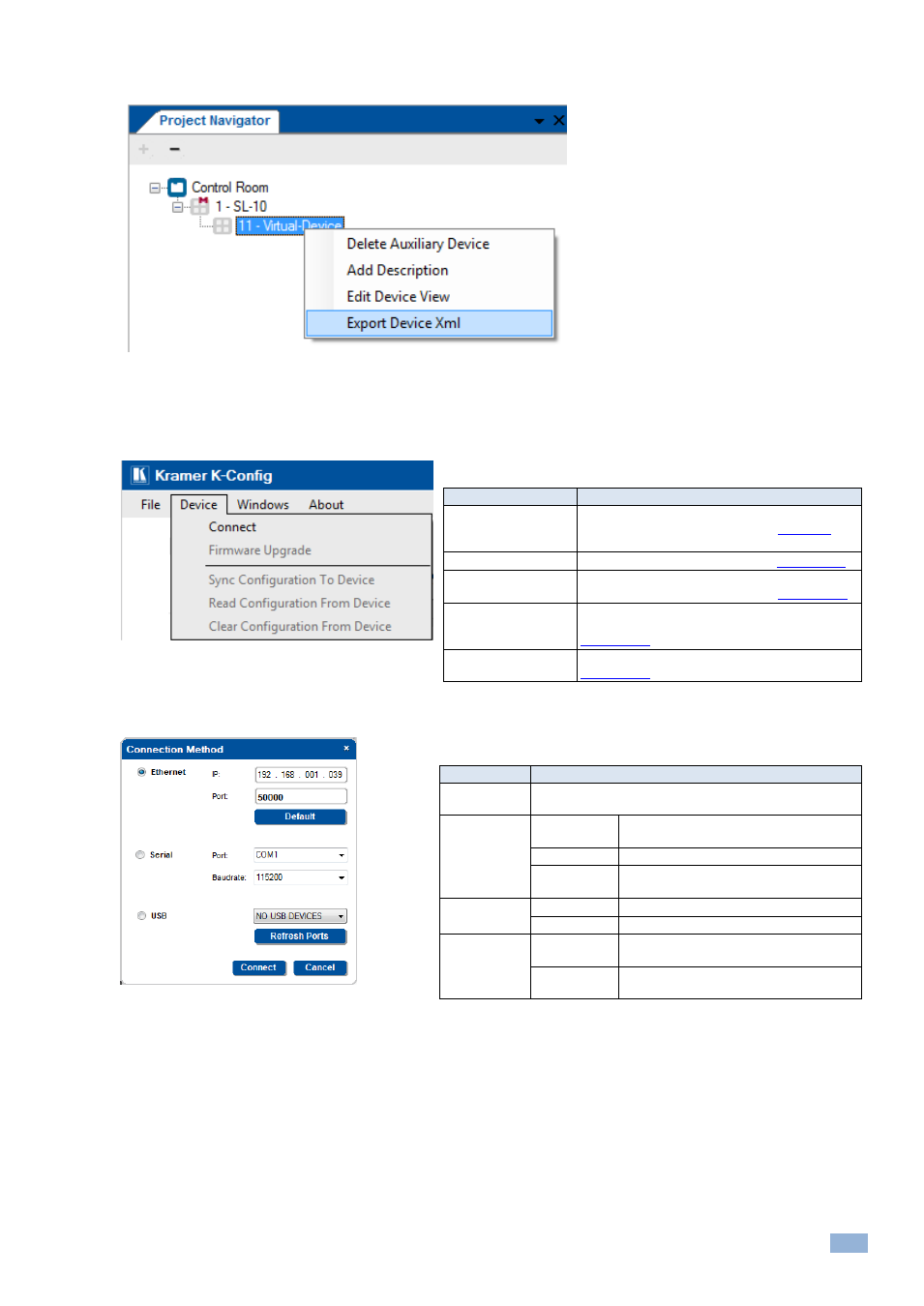

You can also export a virtual device by right clicking it and selecting Export Device XML:

Figure 35: Export Device xml

4.3.2

The Device Menu

This section defines the Device menu.

Figure 36: The Device Menu

Menu Command

Function

Connect/ Disconnect

Click to connect to a device via an IP number, a
USB connector or a serial port (see

Figure 37

) or

disconnect the device

Firmware Upgrade

Load file for firmware upgrade (see

Section

10.2

).

Sync Configuration to
Device

Writes the configuration to the device (active only
when the device is connected), see

Section

10.5

Read Configuration
from Device

Reads the configuration from the device (active
only when the device is connected via ETH), see

Section

10.6

Clear Configuration
from Device

Removes the configuration from the device, see

Section

10.7

Figure 37: The Connect Window











Feature

Function

Connection
Method

Check to select connection to the device via the Ethernet,
USB or Serial port

Ethernet Area IP:

Type the IP address of the device to which
you want to connect

Port:

Shows the port number

Default:

Click to reset the IP address to its default
value

Serial

Port:

Select the communication port

Baudrate:

Set the baud rate

USB Area

USB Device
Drop box:

Select the communication USB port

Refresh Ports: Click to check if there are ports ready to

connect on the Kramer device
