K-Config

Connecting to the Device

117

To connect a device:

1.

Click the Connect button in the quick access toolbar.

You can also select Connect from the Device menu

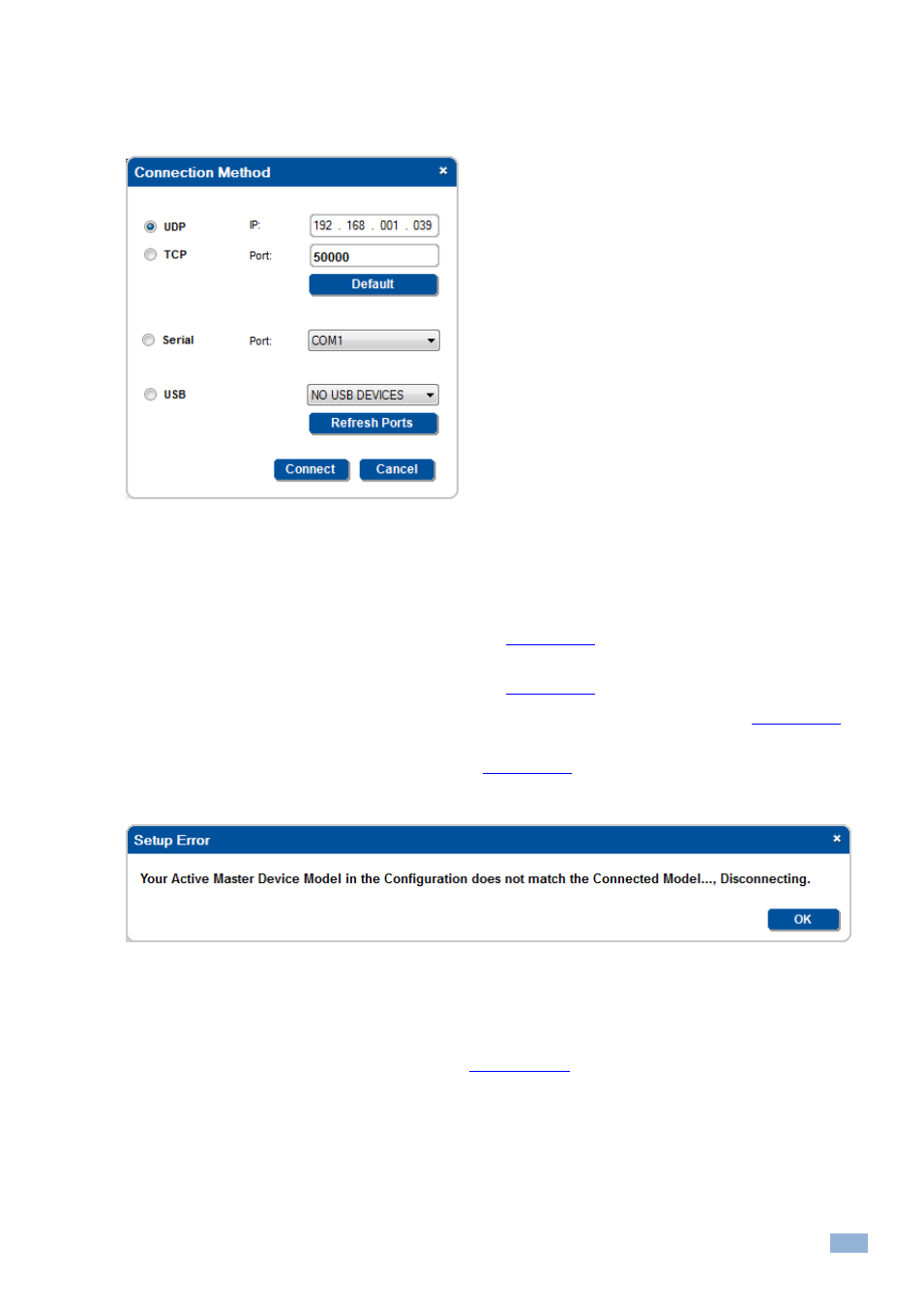

Figure 208: Connection Method Window

2.

Select the Connection Method (Ethernet, Serial or USB).

3.

Enter the data that is relevant to the selected connection method:

UDP

– the device IP number and the port number

Click Default to return to the default IP number (

Section

10.1.1

)

TCP

– the device IP number and the port number (note that you have to set the port number to 50000)

Click Default to return to the default IP number (

Section

10.1.1

)

Serial

– select the port number to which the device is connected and set the baud rate (

Section

10.1.2

)

USB

– select the USB port to which the device is connected

Click refresh ports if a new port was added (

Section

10.1.3

)

If the project navigator room configuration does not reflect the actual controlled room, the following warning appears:

Figure 209: Configuration Mismatch Warning

10.1.1 Connecting via the Ethernet

To connect via the Ethernet (UDP + TCP)

1.

Set your PC to enable Ethernet connection (see

Section

10.1.1.1

).

2.

Type the device IP number.

3.

For TCP only, set the port number to 50000

4.

Click Connect.
