102

K-Config - Adding Actions to a Trigger

9.2.1

Adding a Table Action

After creating tables via the Driver Manager (see

Section

5.5.4

) you can use it in the action editor Port Command list:

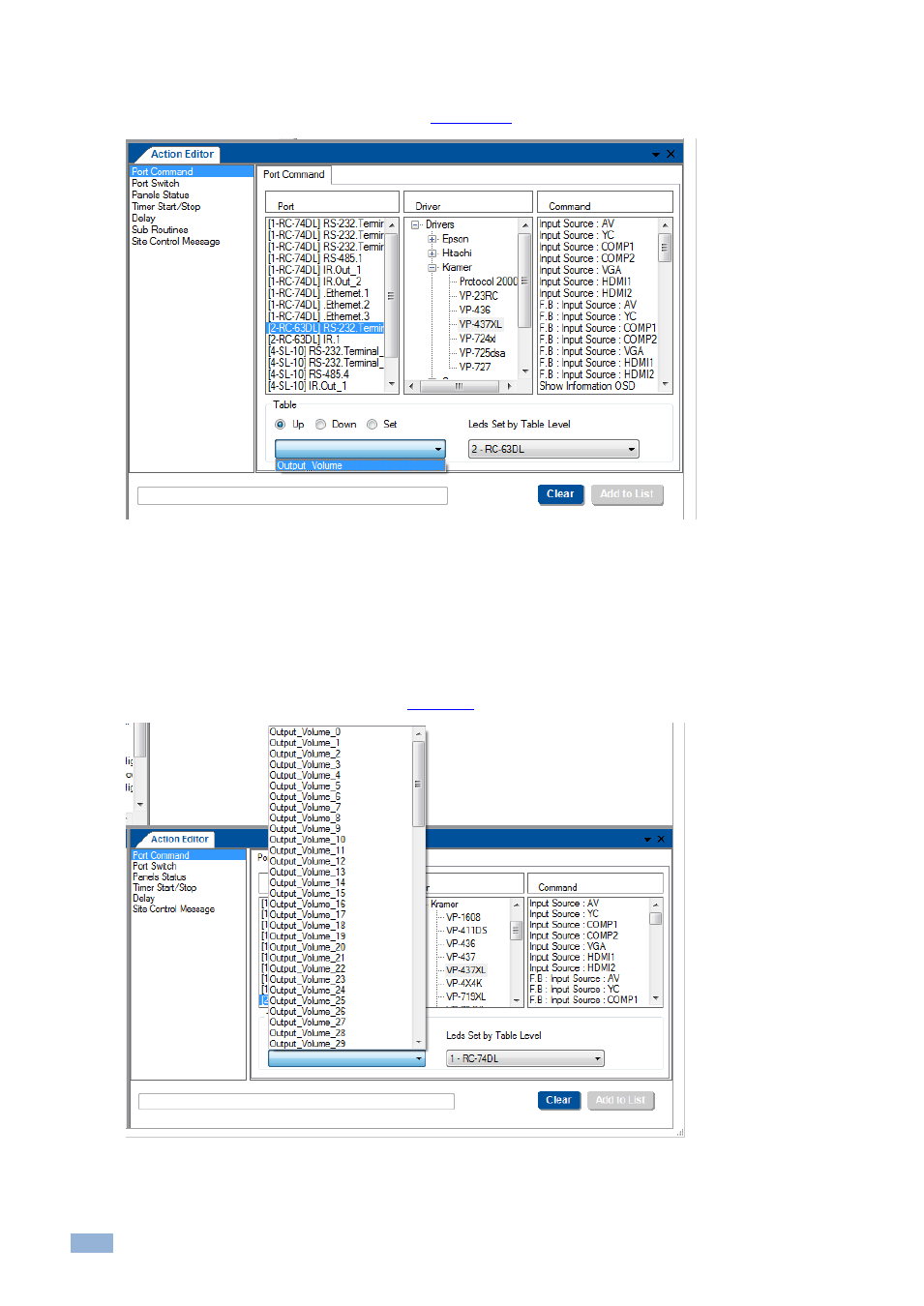

Figure 183: The Table Port Command

Select the:

Table (Output_Volume)

Select the RC device whose LEDs should behave as defined in the table (RC-63DL). Select None if you do not

want the LEDs to behave as defined in the commands table

Set the behavior of the table commands to go gradually up, down, or set to a specific value. If you click Set, you

can choose a specific volume level (see

Figure 184

):

Figure 184: The Table Port Command

– Setting a specific Volume Level
