K-Config - Assigning the Peripheral Devices to Master and Auxiliary Device Ports
7.1
Assigning a Peripheral Device Driver to an RS-232 / RS-485 / IR Port
1.
Click the Driver field next to [1-RC-74DL] RS-232.Terminal_Block_1.
The following window opens.
If the list does not include the drivers you need, you can import it by clicking the Import Drivers button.

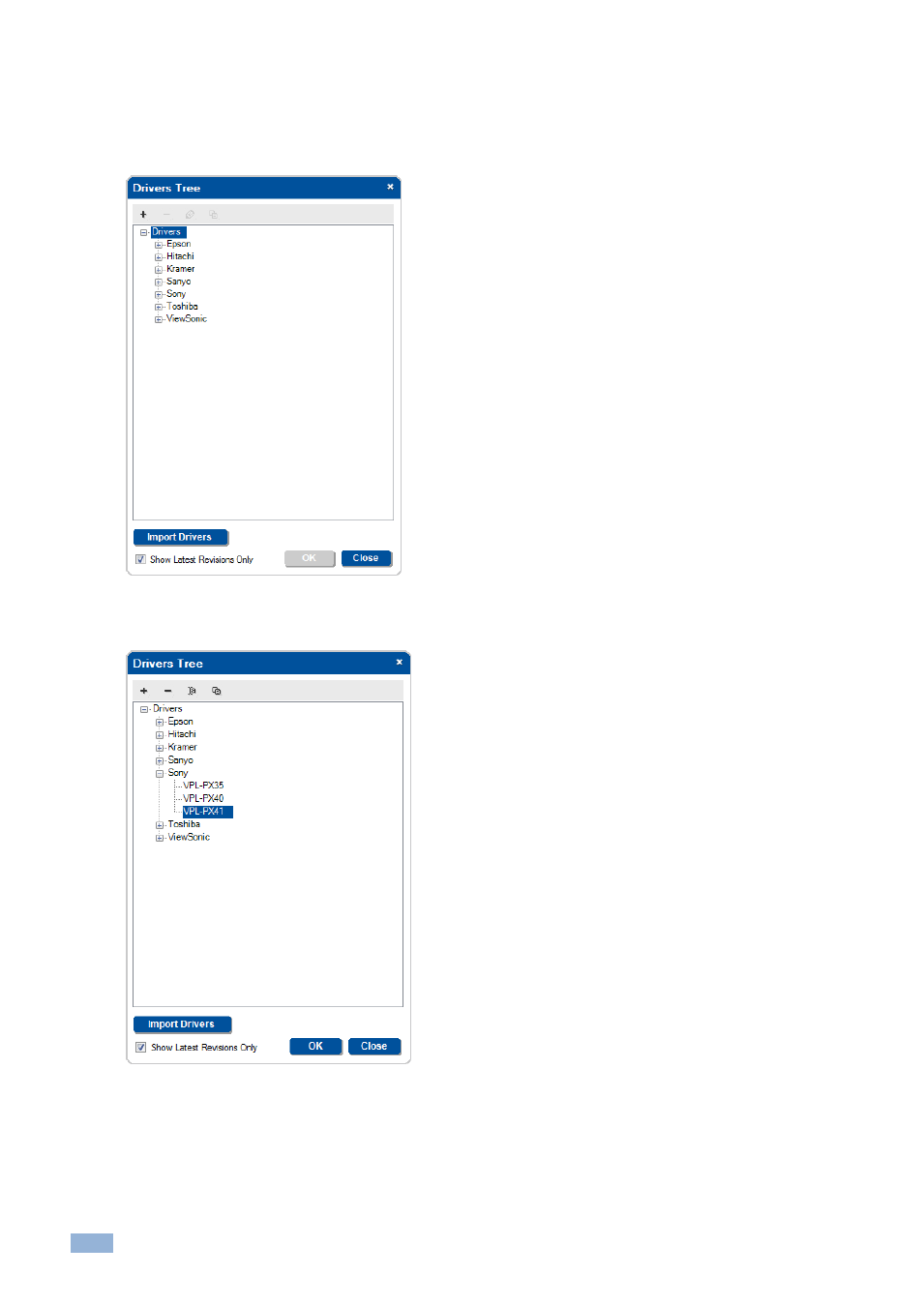

Figure 104: The Drivers Tree Window
2.
Select and double-click the manufacturer and then select the driver.
Figure 105: Select the Driver
3.
Click OK.
The projector driver is assigned to the RS-232 port.
