76
K-Config - Using the Triggers

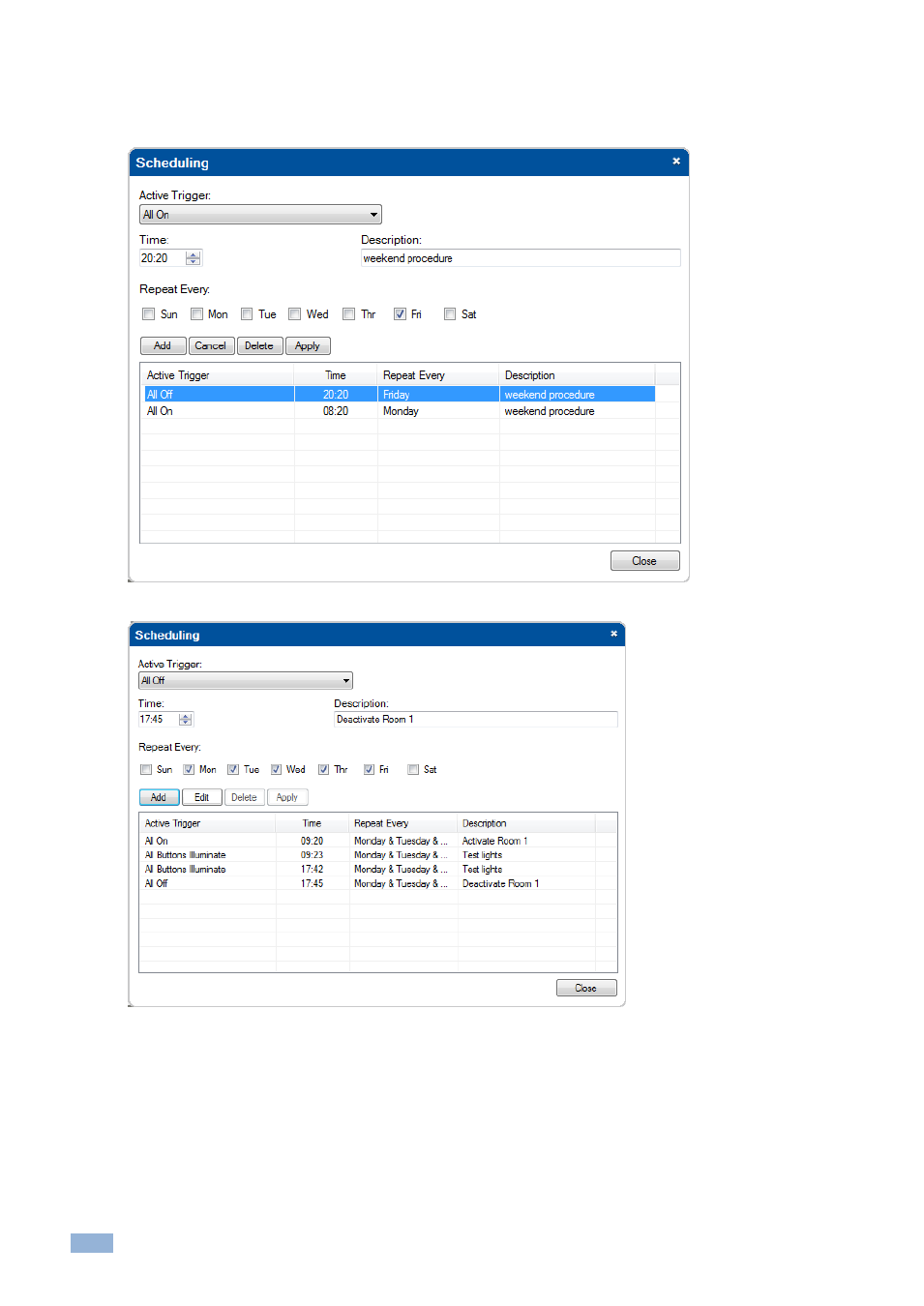

The following examples show different schedules setup for deactivating a room. In each example, the Time, the
Active Trigger, the Description of the selected schedule and the required days (Repeat Every) are set, and custom
triggers are added as needed:
Figure 128: Custom Events
– The Scheduling Example 1
Figure 129: Custom Events
– The Scheduling Example 2
8.2
Keypad Events
Trigger Event triggers include actions that are triggered by pressing a certain button on a device in the controlled room.
To set a Keypad trigger, for example, pressing the SOURCES button (3) on the RC-63DL auxiliary device:
1.
Click the SOURCES button.
The selected button frame turns blue:
