K-Config

Using the Triggers

85

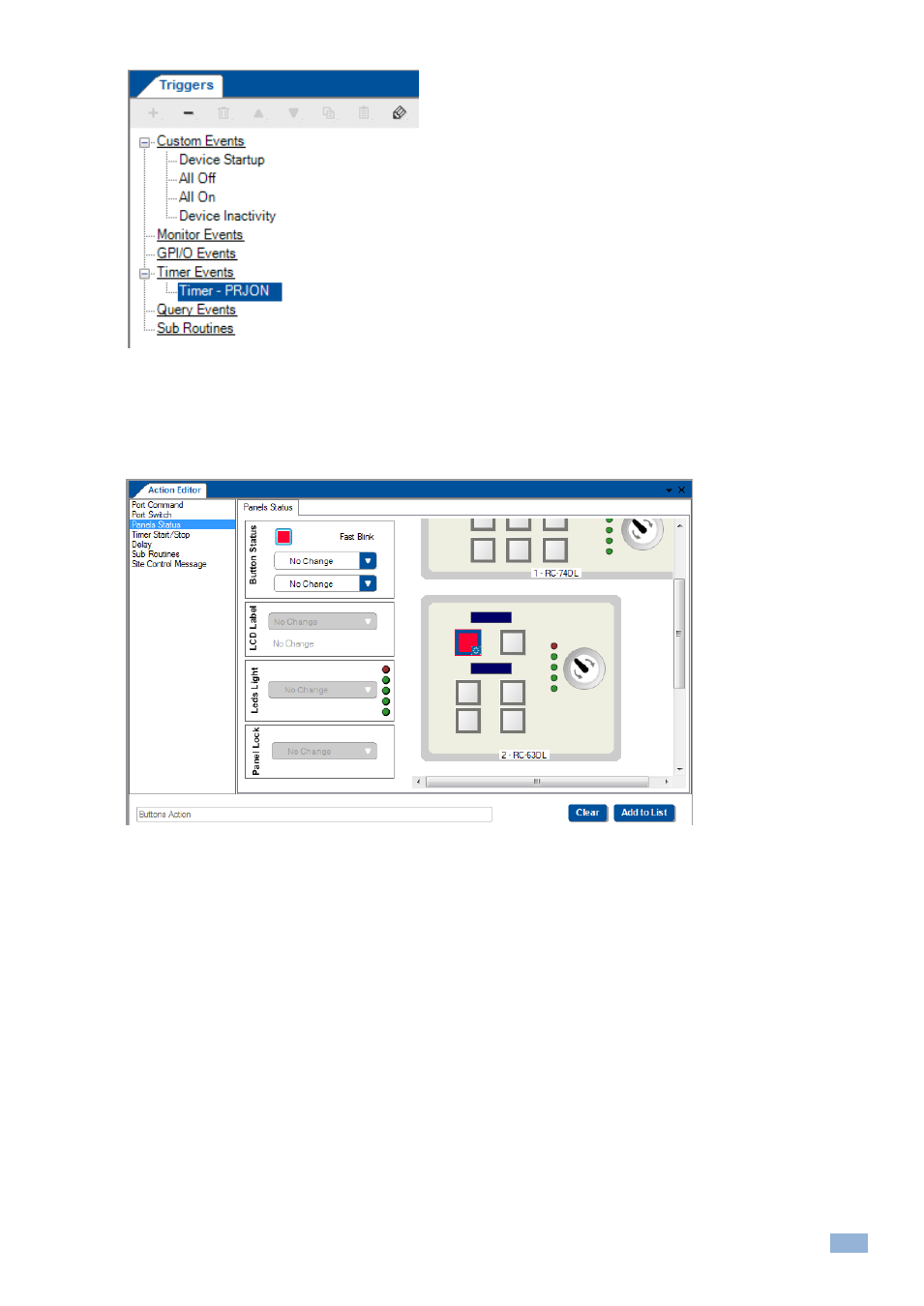

Figure 148: Timer Events

– the Timer Trigger in the Triggers List

3.

Add the following actions (Button 3 blinks in red for 5 seconds (to indicate a problem) and then illuminates in

green:

4.

Click OK.

Figure 149: Timer Events

– adding Button Status

5.

Click the Add to List button.

The command is added to the Action List.

6.

Add a 5-second delay and then button illuminates green.

The PRJON Timer trigger action list appears as follows:
