38 K-Config - The Driver Manager – Getting Started
4. Type the command and click the Set button:

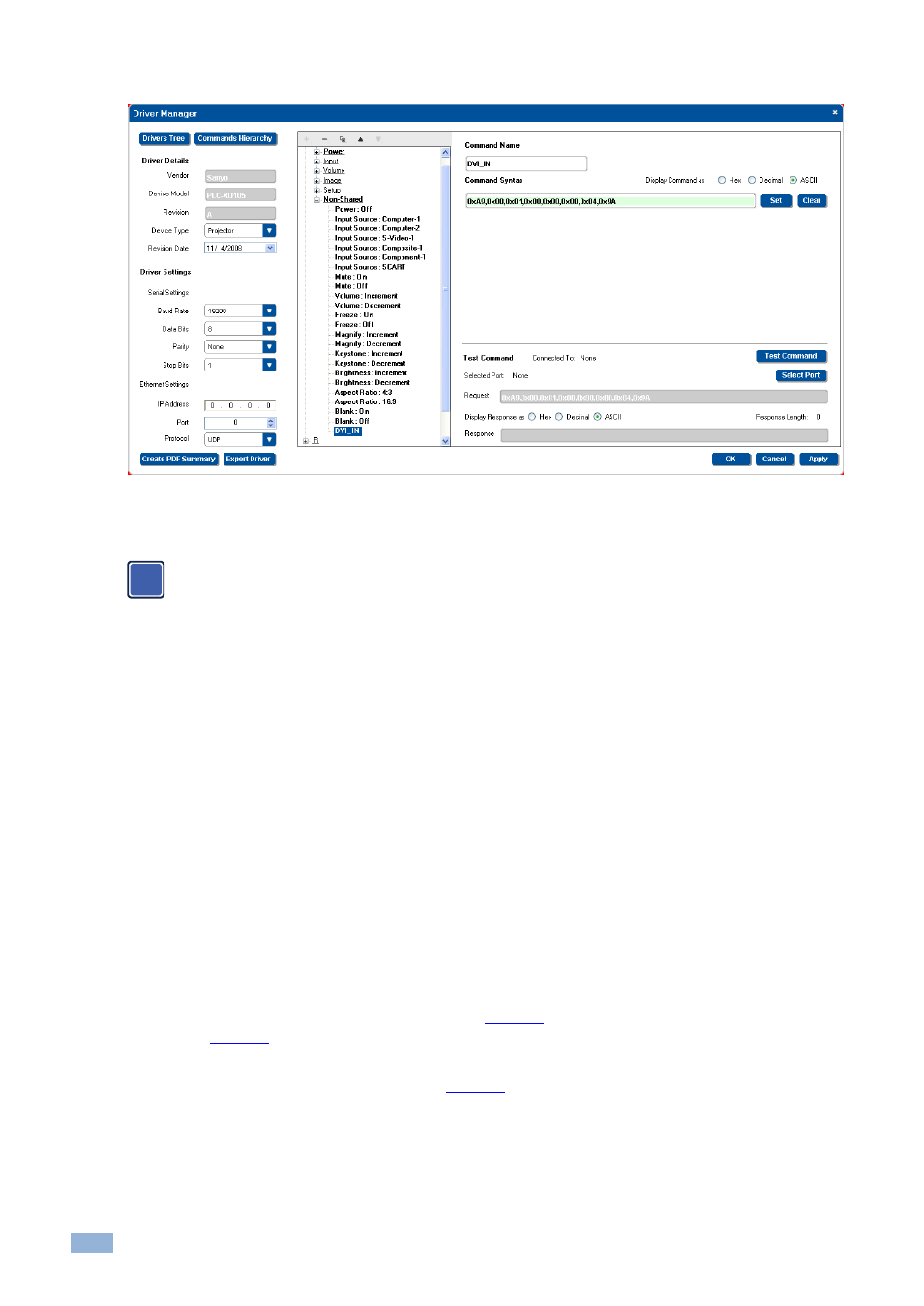

Figure 65: Serial Commands –New Command Added
The DVI_IN command was added to the commands non-shared list and appears bold.
Note that when writing a serial command:
- if you enter ASCII commands, enclose the strings in quotation marks (for example, "MUTE OFF")
- Prefix the hex characters with 0x or "$" (for example, 0x0D), unprefixed values are in decimal
(for example, 13)
- String and byte values should be separated by commas or spaces (for example, "BRIGHT
DEC",0x0D)
- If a protocol command states Carriage Return () and/or Line Feed () following the
command line, add 0x0D or 0x0A, respectively, outside the command quotation marks, separated by
a comma.
For example, “PWR” should appear as “PWR”,0x0D,0x0A
If required, you can test the command
1. If the control device is not connected, connect it now and connect the auxiliary device (for example, a DVD or
projector).
2. In the Driver Manager window select the command to be tested.
The command syntax appears in the text box on the top right.
3. Click the Test Command button.
 If the connection type between the RC and the PC was not yet established, the connection window will
appear and you should select the connection method (for example, the RC-74DL is connected to the
PC via the Ethernet) and click Connect (see Figure 66 ) after that the Device Ports window appears (see
Figure 67 )
 If the RC is connected, the Device Ports window appears and you will need to select the port to which
the auxiliary device is connected (see Figure 67 )
i
