K-Config

Adding Actions to a Trigger

105

Figure 188

shows Panels Status commands that were added to the action list. The list shows a general name for each

action. For example, even though

“Buttons Action” appears twice, it includes different actions related to the panel

buttons.

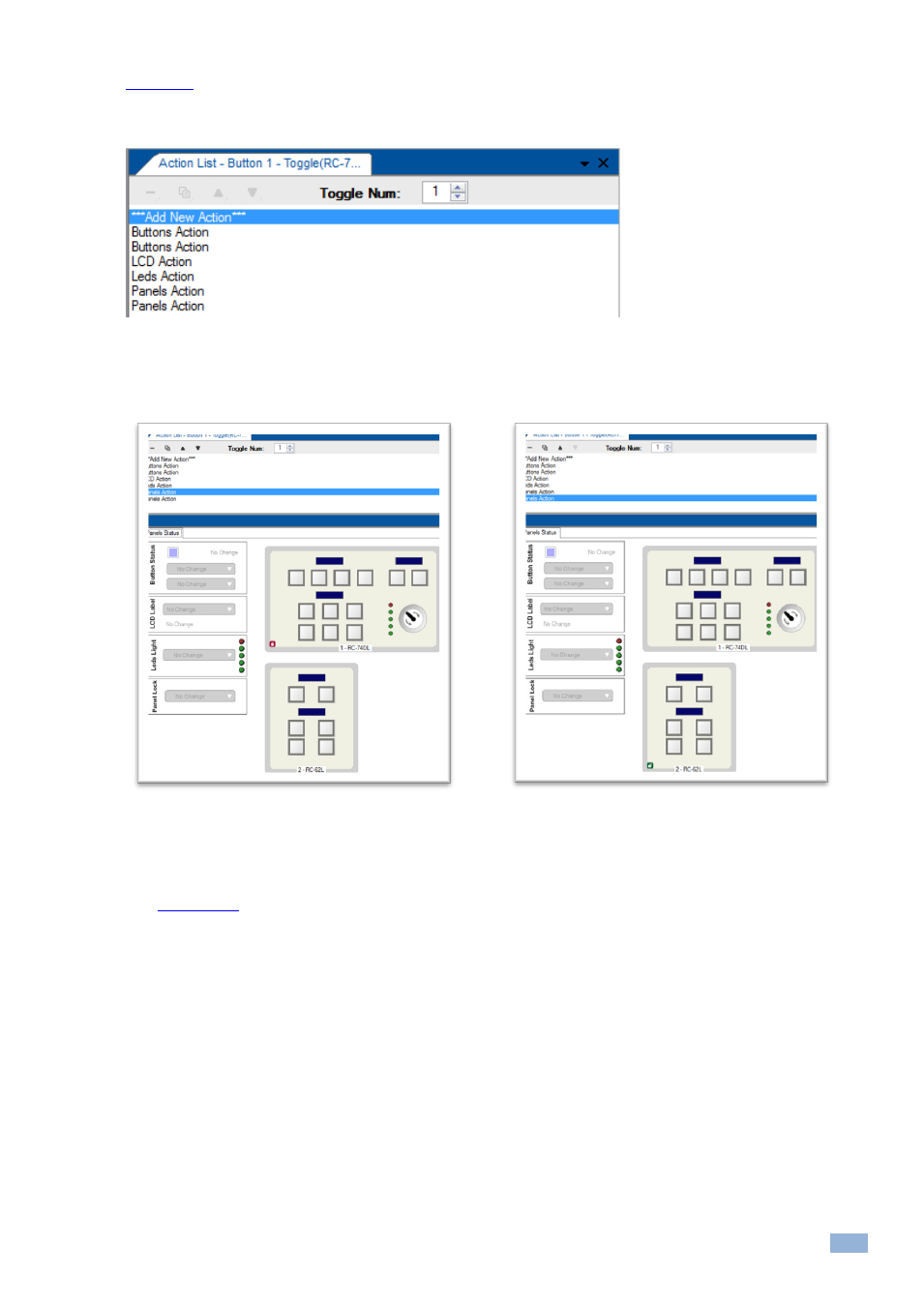

Figure 189: Panels Status Action List

When an action is selected, the details of that action will appear in the Action Editor. For example, selecting the first

Panels Action shows that RC-74DL

is locked, while the second “Panels Action” shows the RC-62L unlocked:

Figure 190: Panels Status Action List Names

9.4.1

The Button Status

The Button Status lets you set a button light color and define its behavior, as well as enable/disable it or set its state

(see

Section

8.2.1

).

To define the button status:

1.

Click a front panel button in the Action Editor (for example button 1 on the RC-74DL).

The button frame turns blue:
