Page 119: Select the status

114
K-Config - Adding Actions to a Trigger

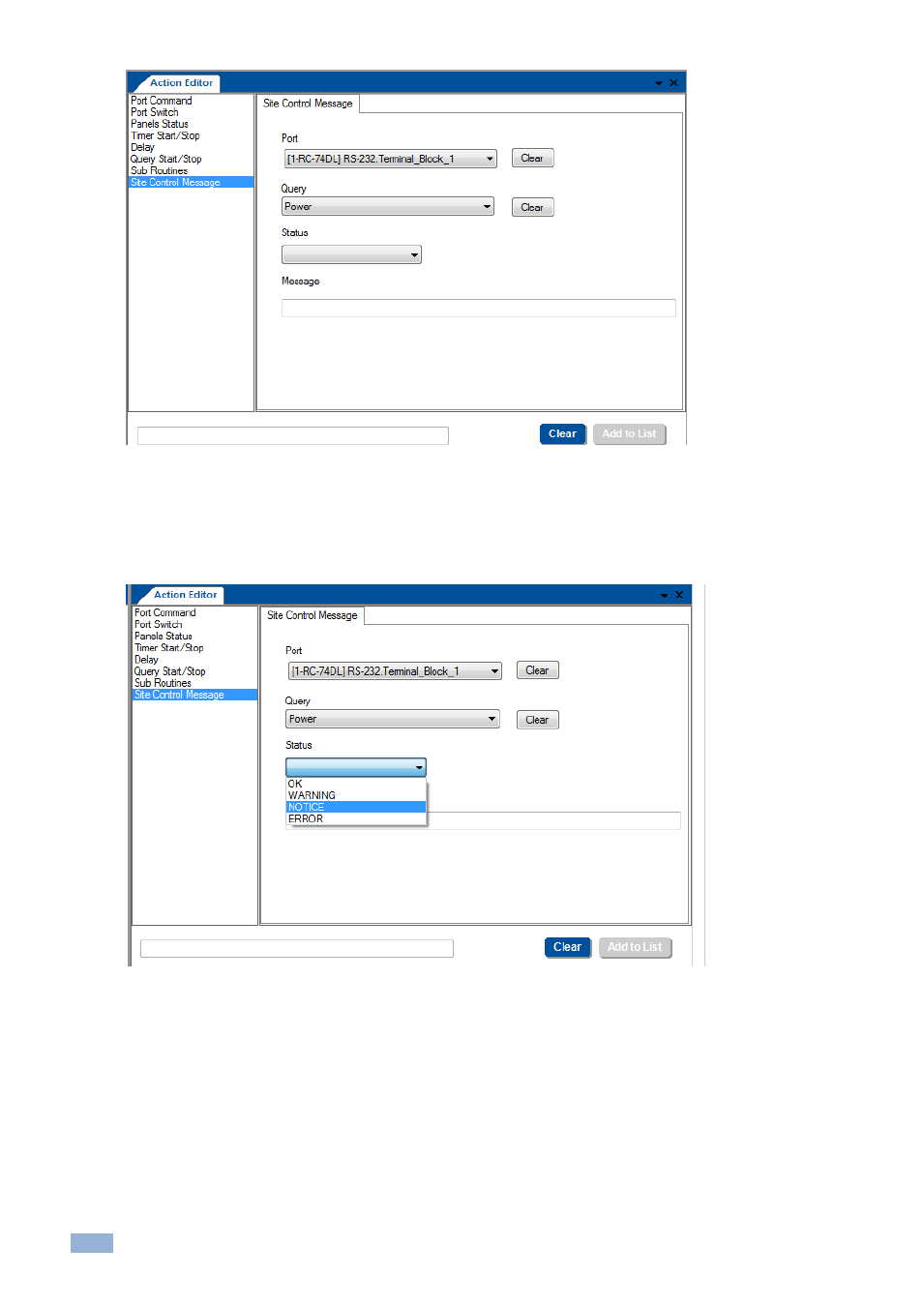

Figure 205: Site Control Message
– Select Port and Query
4.
Select the Status.
Status sets the level of the displayed message so that when in Site-CTRL messages can be filtered according
to their levels of risk or importance this message will also be filtered in accordance with the Site-CTRL filtering
levels.
Figure 206: Site Control Message
– Select the Status
5.
Select NOTICE.
Note that if you select the LampHour query you need be sure that "Send parsed value" is checked, to allow the
SiteCTRL main screen to show the Lamp Hour life in percentage.
6.
Type the Message:
