The Kramer SI-1VGA Step-in Module
Congratulations on purchasing your Kramer SI-1VGA Step-in Module which is ideal for
boardrooms and presentation rooms.
The Kramer SI-1VGA is a VGA and unbalanced stereo audio remote control panel that
can, for example, fit into the Kramer TBUS-10 Table Connection Box (see Figure 3 ) or
the K-POD301 Podium Table Bus. The SI-1VGA is used for remotely taking control of
a compatible switcher, for example, the VP-81KSi.
Figure 1 and Table 1 define the SI-1VGA Step-in Module.

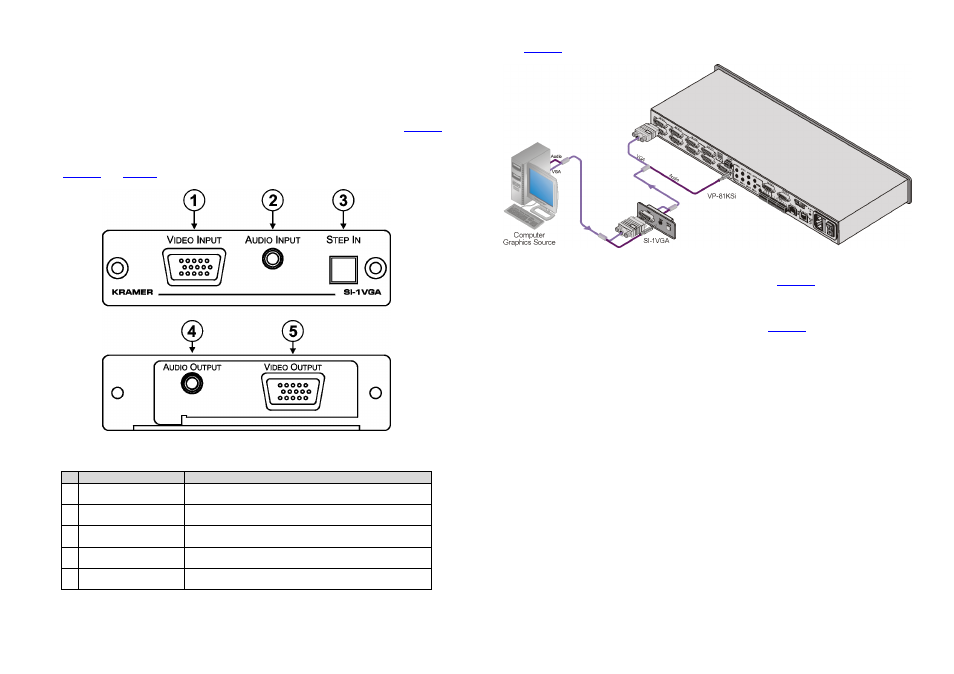

Figure 1: SI-1VGA Step-in Module Front Panel and Rear View
Table 1: SI-1VGA Step-in Module Front and Rear Features
# Feature Function
1 VIDEO INPUT VGA 15-pin HD
(F) Connector
Connect to the video source
2 AUDIO INPUT 3.5mm Mini
Jack
Connect to the unbalanced stereo audio source
3 STEP IN Button Press to switch the input to this remote control panel. LED lights yellow
when active
4 AUDIO OUTPUT 3.5mm Mini
Jack
Connect to the unbalanced stereo audio input of the switcher
5 VIDEO OUTPUT VGA 15-pin
HD (F) Connector
Connect to the video input of the switcher. (The cable used must connect
all pins, for example, Kramer cable CP-GMA/GMA/XL)
Figure 2 shows the wiring connections of the SI-1VGA.
Figure 2: SI-1VGA Wiring Connections
To install and connect the SI-1VGA as illustrated in Figure 2 :
Note: The following steps assume that you have video (with 15-pin HD (M)
connectors) and audio (with 3.5mm mini jacks) cables running from the switcher
inputs to the inside of either the TBUS-10 (see Figure 3 ) or the
K-POD301, depending on which you are using.
1. Connect the video cable in the TBUS-10/K-POD301 to the 15-pin HD VIDEO
OUTPUT connector on the rear of the SI-1VGA.
2. Connect the audio cable in the TBUS-10/K-POD301 to the 3.5mm mini jack
AUDIO OUTPUT connector on the rear of the SI-1VGA.
3. Insert the SI-1VGA into the required cutout of the TBUS-10/K-POD301.
4. Insert the two screws to secure the module in place and tighten the screws.
5. Plug the video source (for example, a computer) into the 15-pin HD VIDEO
INPUT connector on the front panel of the SI-1VGA.
6. Plug the audio source (for example, a computer) into the 3.5mm mini jack AUDIO
INPUT connector on the front panel of SI-1VGA.
7. Press the STEP IN button to take control of the switcher input.
