K-Config
–
Connecting to the Device
125

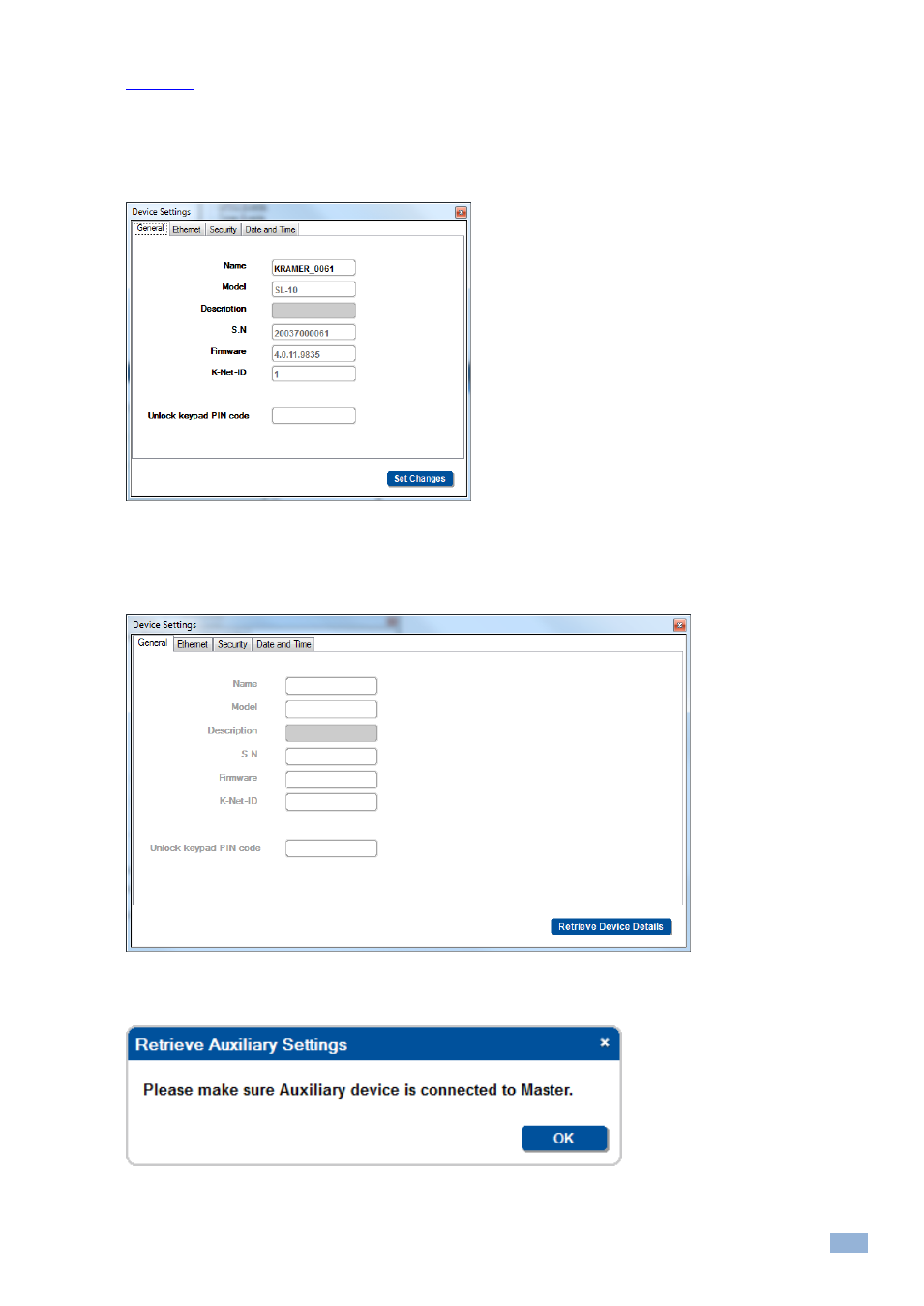

shows the general device settings tab, which includes the (master and auxiliary) device information: Name,
Model, Description, S.N (Serial Number), Firmware, K-Net-ID and the Unlock keypad PIN code text box where you can
set the key sequence to press to unlock the keypad in case it is locked by a trigger (activated by pressing a button, a
schedule or via Web Access).
Since the button number does not appear on the actual keypad, the system integrator should inform the user regarding the key
sequence
Figure 225: General Device Settings
If you want to view the auxiliary device settings select that device in the Project Navigation area:
The Device Settings appears empty:
Figure 226: Selecting an auxiliary device
Click the Retrieve Device Details button. The following window appears:
Click OK. The system retrieves the device settings and the following window appears:
