K-Config
–
Adding Actions to a Trigger
111
9.5
Adding a Switcher Command
The Switcher Command lets you select an input to switch to the outputs

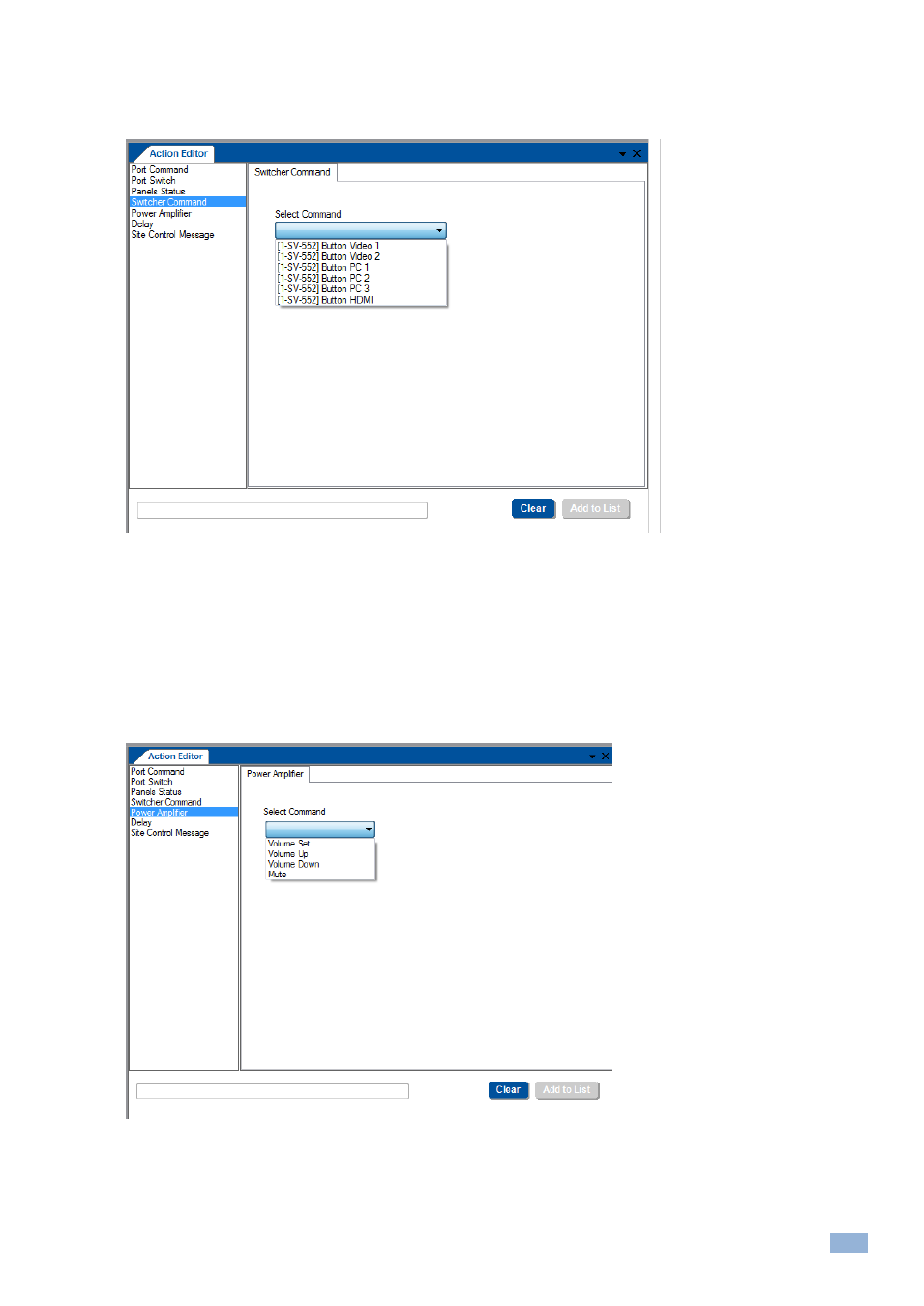

Figure 199: Switcher Command
– Select an Input
After selecting the input click the Add to List button. The new command appears in the selected trigger.
9.6
Adding a Power Amplifier
The Power Amplifier action lets you set the output volume for devices with built-in power amplifiers (SV-552 in this
example).
You can set the volume to a certain level, increase or decrease it or mute the volume (On or Off).
Figure 200: Power Amplifier
– Select an input
After setting the desired volume behavior, click the Add to List button.
