16

K-Config - Getting to Know K-Config

In the same way you can also add additional windows, for example, the Port Manager window, as illustrated in the

example in

Figure 25

. Select Port Manager from the Windows menu and click the drag and drop tool:

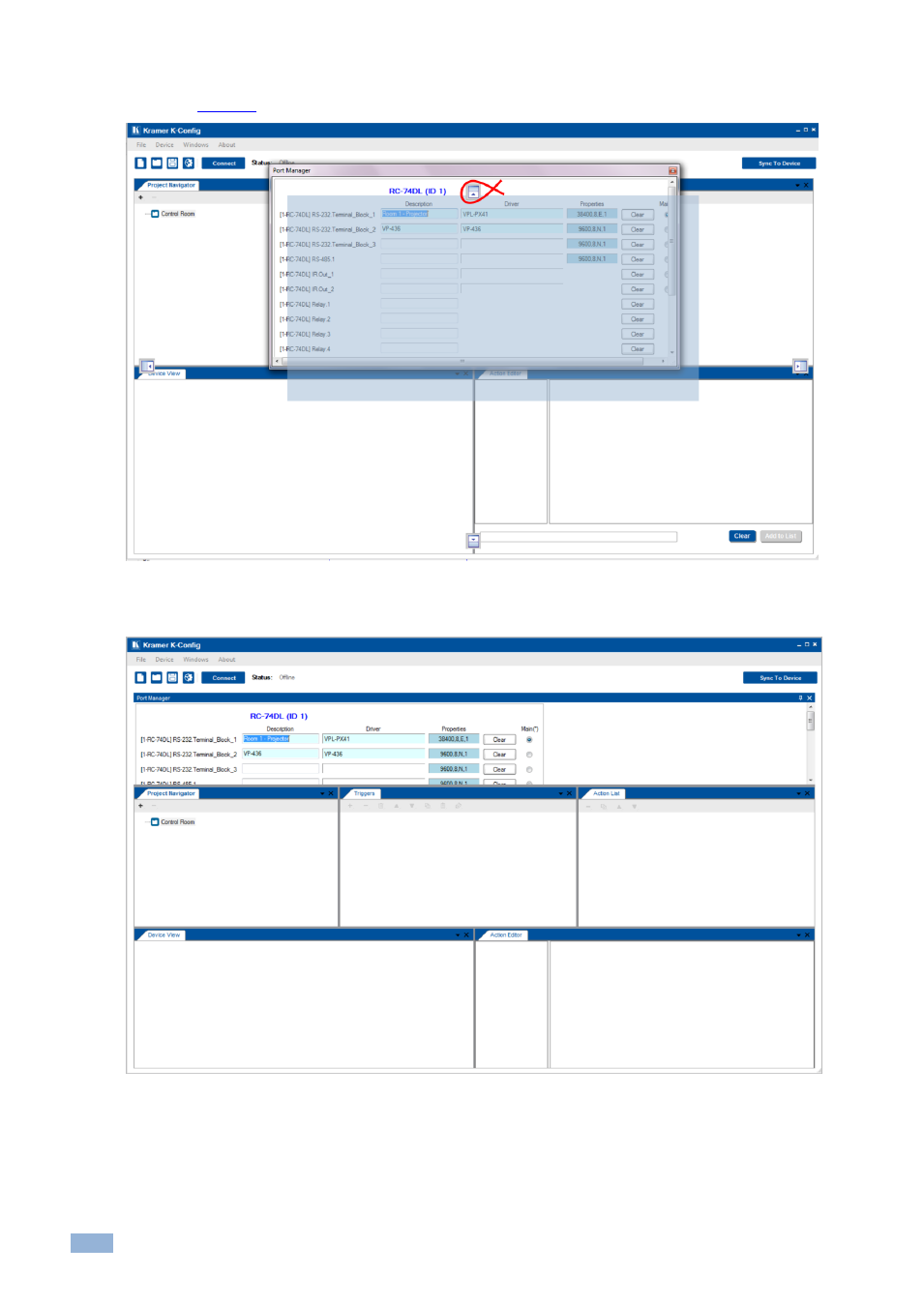

Figure 25: Adding the Port Manager Window to the K-Config Layout

The Port Manager window is added to the main window:

Figure 26: The Port Manager Window Added to the K-Config Layout

The same setup will reappear the next time you launch K-Config. At any time you can reset to the factory default view

by clicking Default Layout in the Windows menu.
