K-Config - Using the Triggers

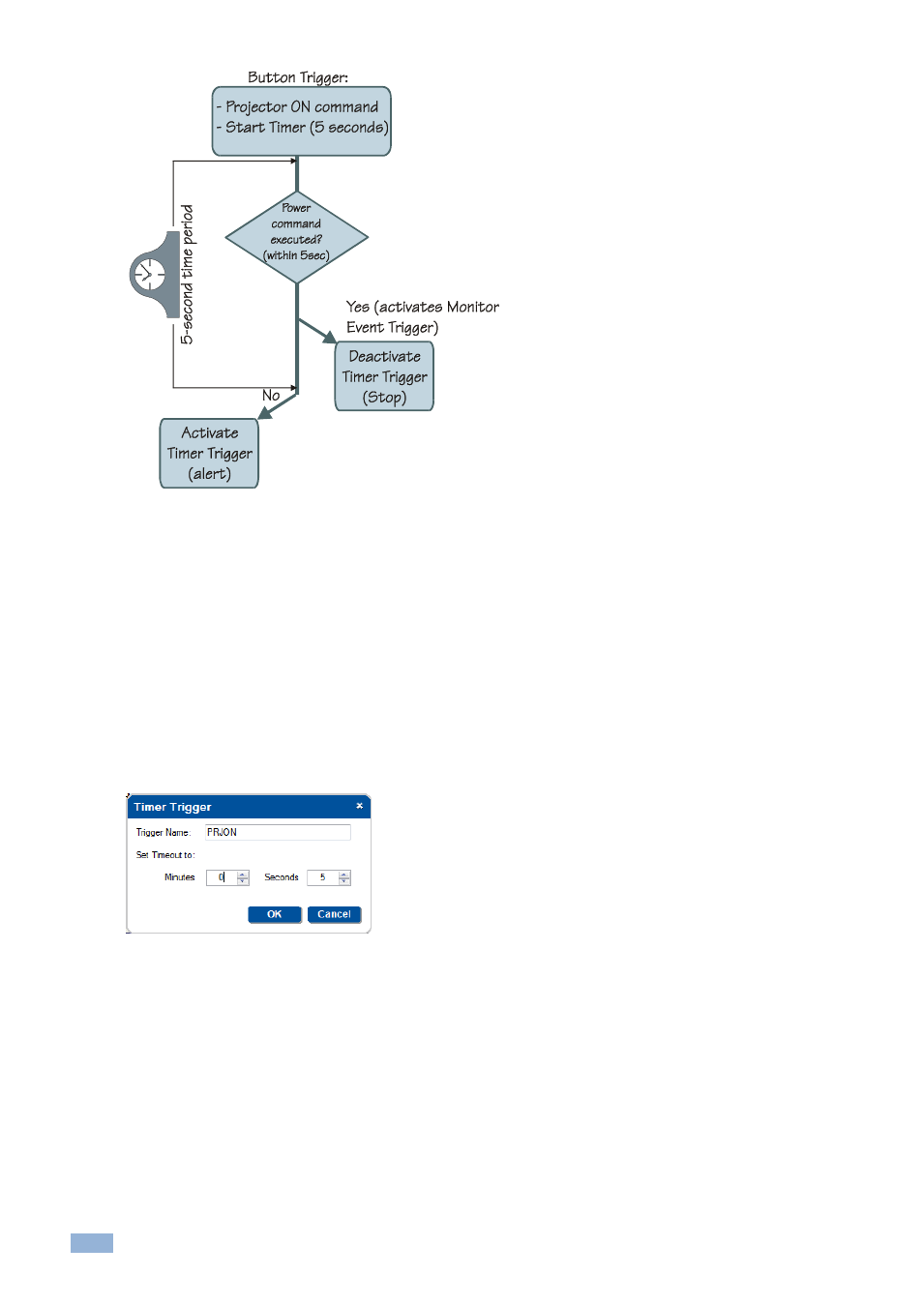

Figure 146: Timer Events

– Timer Trigger Flowchart: Power ON Example

This setup includes three simple steps:

Step I: Define the Timer Trigger

Step II: Define the Button trigger (which includes the Timer Trigger Start state)

Step III: Define the Monitor Event Trigger (which includes the Timer Trigger Stop state)

Step I: Define the Timer Trigger

Select Timer Events and click the + icon to add a new timer trigger.

The Timer Trigger name window appears. Type the Trigger Name (for example, PRJON) and set the

timeout:

Figure 147: Timer Events

– Adding the Trigger Name and Timeout

Click OK.

The Timer trigger appears in the available Timer Events list:
