K-Config
–
Assigning the Peripheral Devices to Master and Auxiliary Device Ports
63
The following window appears:

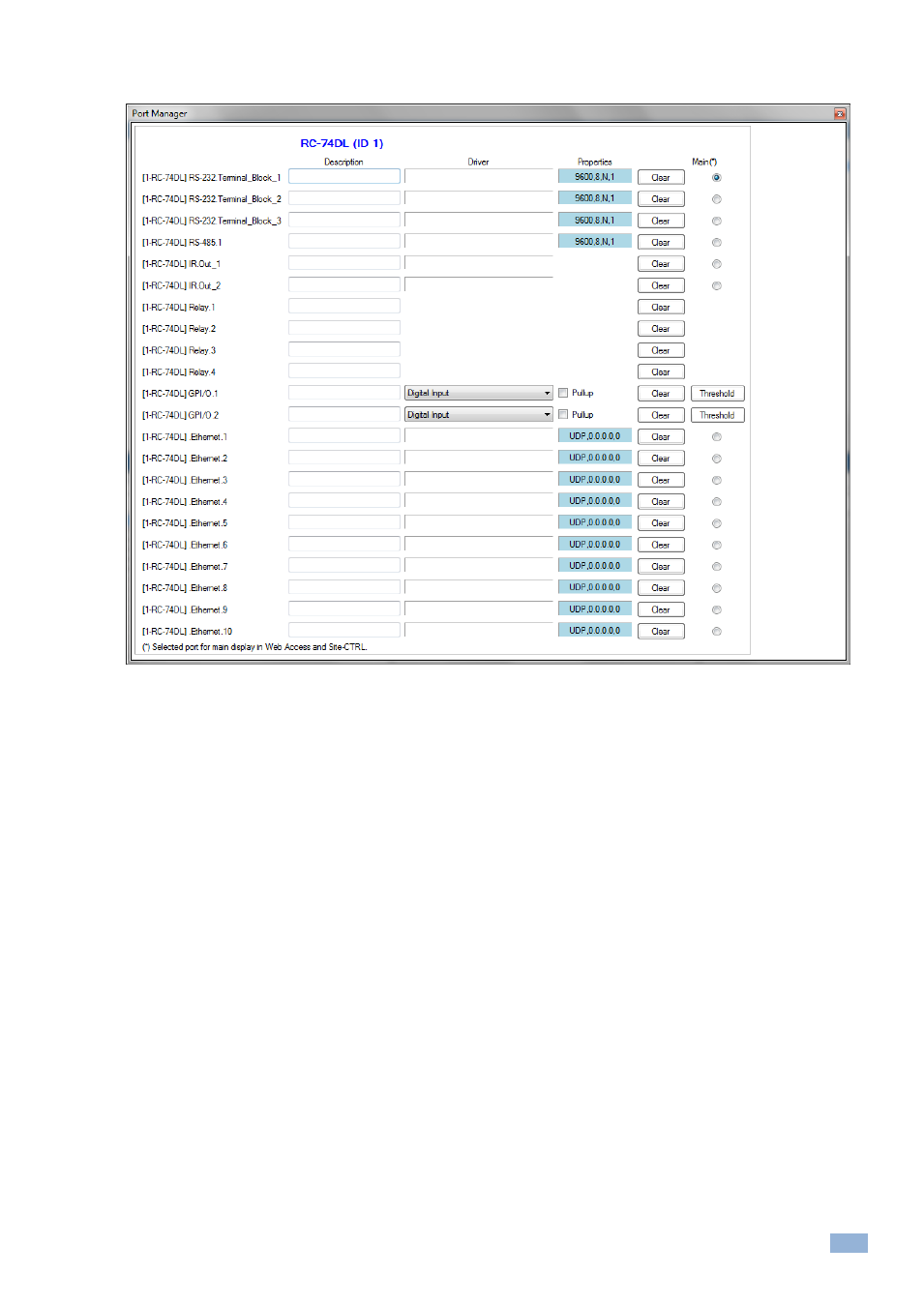

Figure 103: The RC-74DL Port Manager
The list on the left shows the various RC-74DL ports:
RS-232 and RS-485
IR out
Relays
GPI/O
Ethernet ports
