K-Config
–
Assigning the Peripheral Devices to Master and Auxiliary Device Ports
69

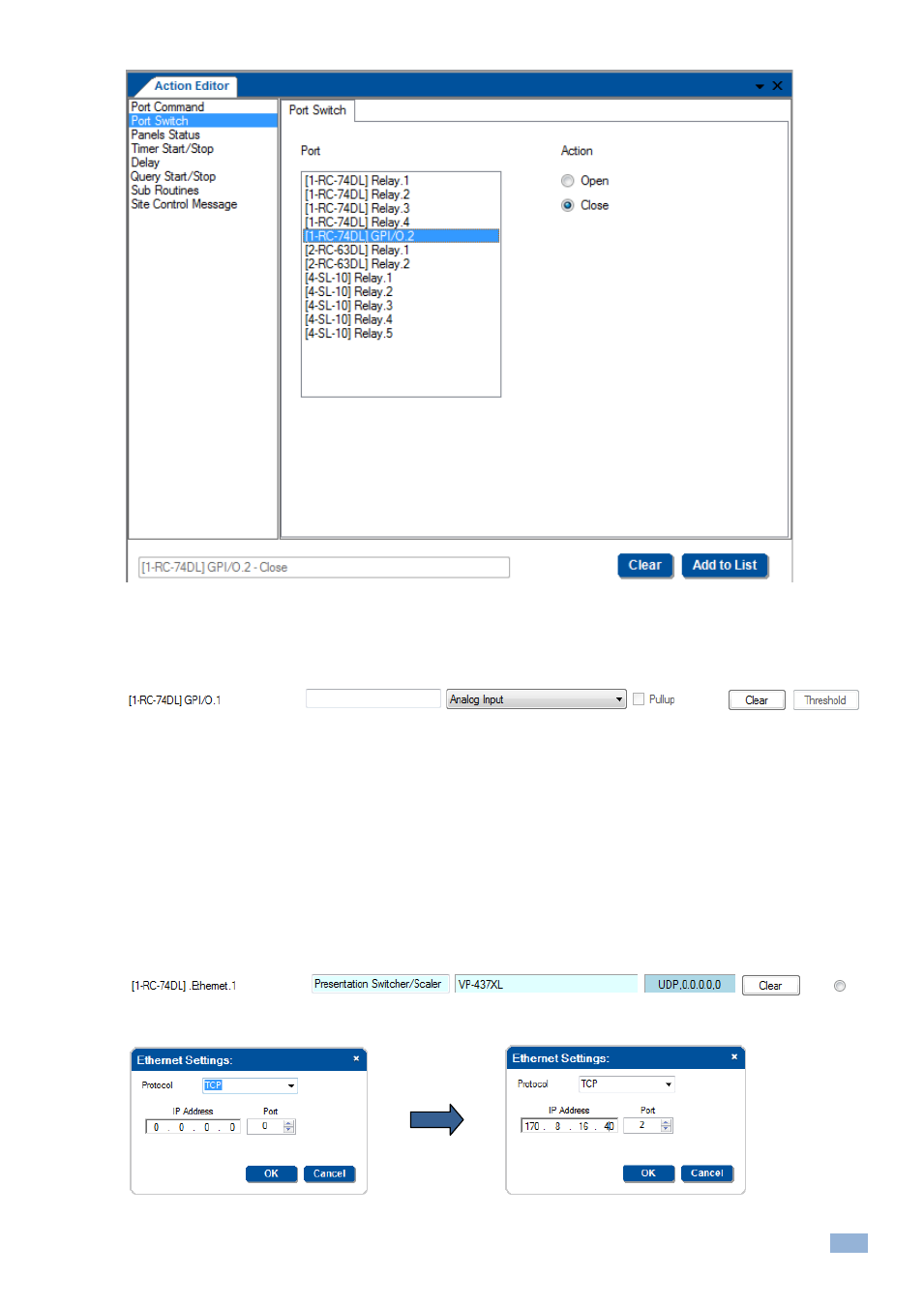

Figure 114: The GPI/O Defined as Digital Output
7.2.3
Analog Input
The analog input accepts an analog signal from an auxiliary device:
The Pullup and Threshold features are disabled.
The trigger is activated once when the voltage is within a certain range of voltages.
7.3
Assigning a Peripheral Device Driver to an Ethernet Port
The Ethernet ports let you send serial commands via the Ethernet port to up to 10 IP addresses located on the same
subnet.
To define an Ethernet port, do the following:
1.
Set the Ethernet port Driver and Description.
2.
Click the Properties field to define the Ethernet Settings:
Figure 115: Ethernet Settings Example
