Figure 106: assigning a driver to a port, Figure 107: writing the port description, Figure 108: serial settings window – Kramer Electronics WP-501 User Manual
Page 70

K-Config
–
Assigning the Peripheral Devices to Master and Auxiliary Device Ports
65

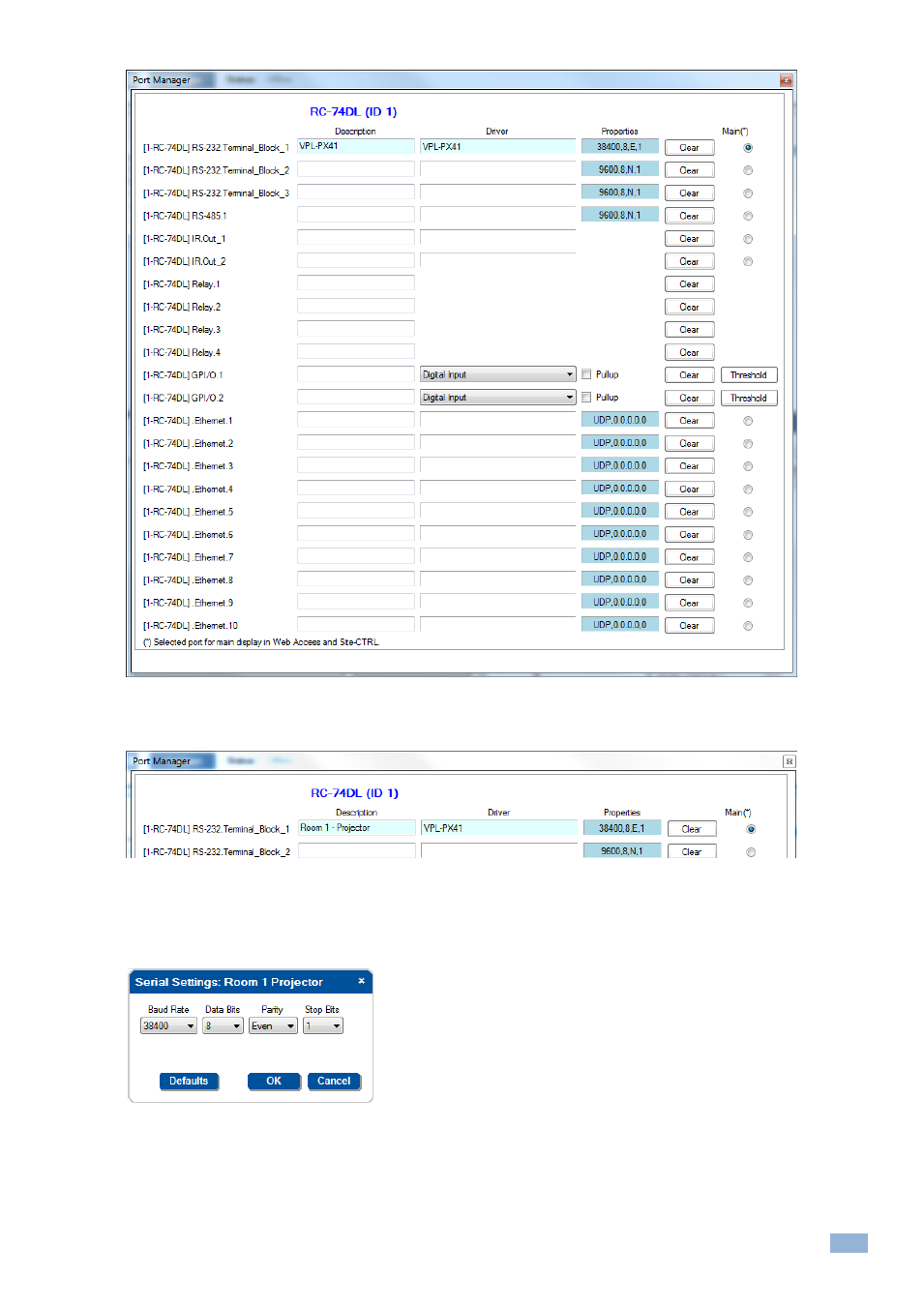

Figure 106: Assigning a Driver to a Port
4.
If required, click the Description field to change the description:
Figure 107: Writing the Port Description
5.
In the same way add a driver to each of the other ports.
6.
Click the Properties field to define the Serial Settings for the serial ports:
Figure 108: Serial Settings Window
