Section 8. Working with Data Files on the PC
8.1.7.4.1 Selecting Data to be View
From a Rainflow Histogram Screen
When a Rainflow Histogram screen is first opened with no rainflow histogram

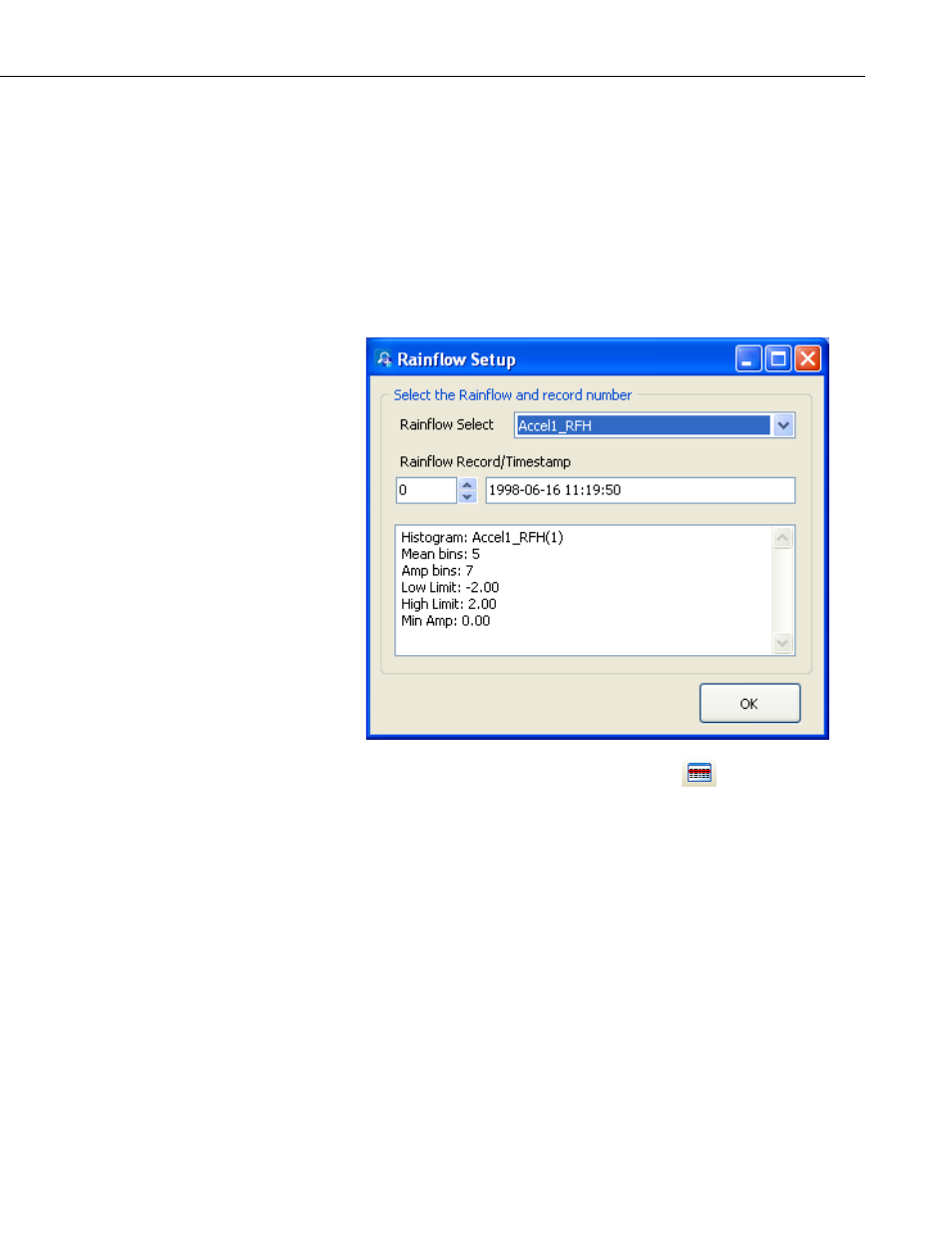

records selected in the data file, the Rainflow Histogram Setup dialog box will
open which allows you to set up the Rainflow Histogram. The first option is a
drop-down list that shows the available rainflow histograms in the currently
selected data file. Select the rainflow histogram that you would like to view.
The second option allows you to choose which record of the rainflow
histogram you would like to view initially. Type in a number directly or use the
arrow keys to the right of the box to change the value.
This dialog box can also be opened from a button, , on the Rainflow
Histogram toolbar. This allows you to change the options for the rainflow
histogram record that is selected in the list on the left side of the Rainflow
Histogram screen.
Additional rainflow histogram records can be added by pressing the New
button. (These additional records can be from either the same rainflow
histogram or a different rainflow histogram in your data file.) You can then
choose which rainflow histogram record is being displayed by selecting it in
the list.
From the Data Grid
You can also select rainflow histogram records directly from a data file to be
displayed on a Rainflow Histogram screen. Clicking on any data value in a
rainflow histogram record will select that rainflow histogram record. Rainflow
histogram records can be selected before the Rainflow Histogram screen is
opened with the Selected Graph set to None. When the Rainflow Histogram
screen is opened, all selected rainflow histogram records will be listed on the
