Section 7. Creating and Editing Datalogger Programs

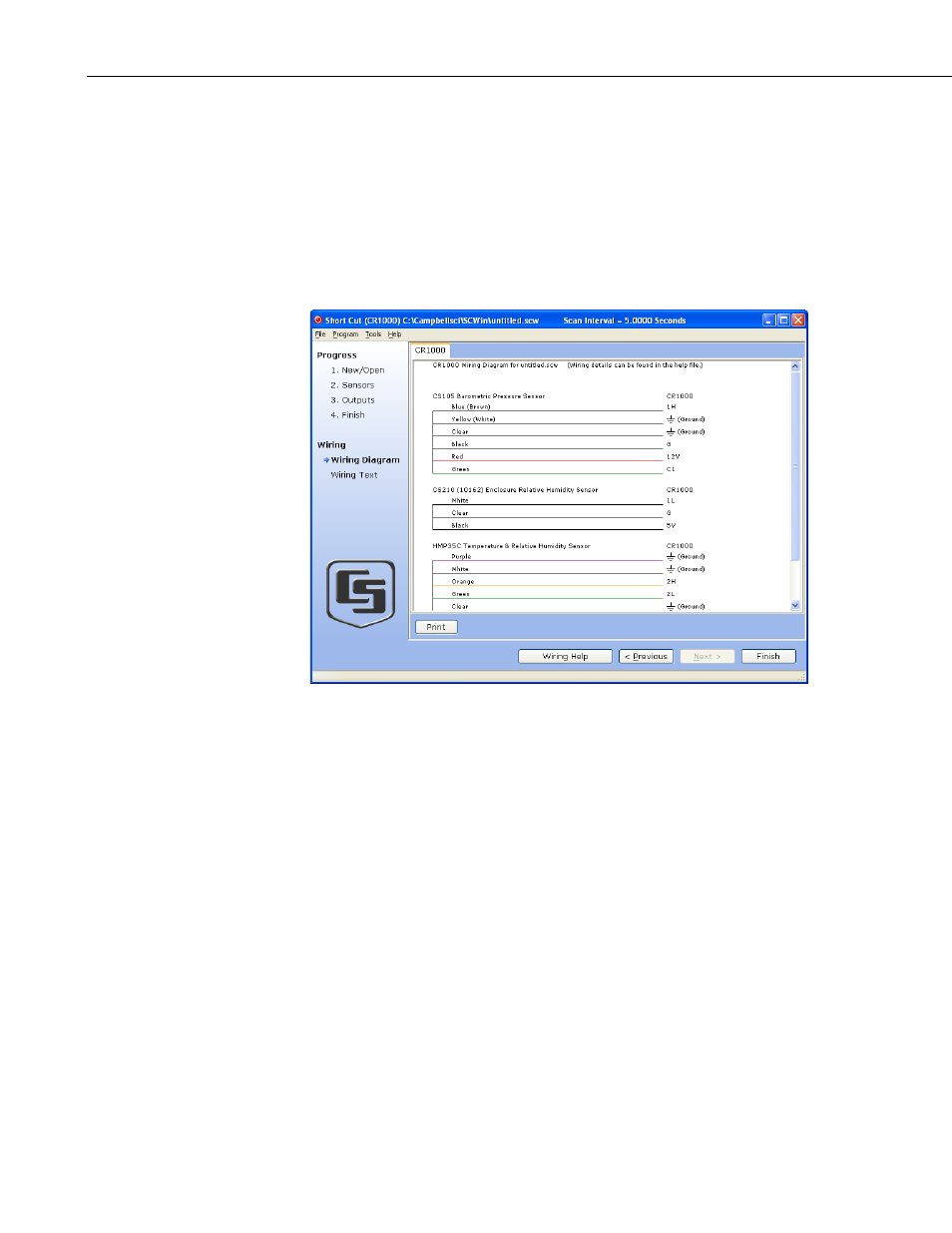

Short Cut provides you with a wiring diagram by clicking on Wiring Diagram
on the left side of the Sensors window. In the example below, Short Cut was
told to measure a CS105 Barometric Pressure sensor, an HMP45C Air
Temperature and Relative Humidity sensor and a 05103 Wind Speed and
Direction sensor. Each sensor was allocated the necessary terminals. Short
Cut will not let you add more sensors than there are terminals on that
datalogger or device. You can print this diagram (or the textual equivalent) by
choosing the Print button. Many users find it handy to leave a printed wiring
diagram in the enclosure with the datalogger in case a sensor has to be
replaced.
