Section 4. Setting up Datalogger Networks
Source Device – Specifies the device that will initiate the activity. This choice
box will be populated with the list of all devices in the model that are capable
of originating activities. These devices will be identified by their station names
and device names (generally the device type) separated by a colon character.
Target Device – Specifies the device that will be targeted by the activity. This
choice box will be populated with the list of all devices in the model that are
capable of receiving an activity. Like the source devices, devices in this list
will be identified by their station names and devices names separated by a
colon character.
Activity Types List – This list box will be populated with the set of activities
that are compatible with the two selected devices serving as source and target.
If a given type of activity has already been specified between two devices, that
activity will not be present in this list.
Once the source device, target device, and activity type has been chosen and
the OK button has been pressed, another dialog box will appear which requires
you to specify the properties for that activity. At the minimum, the properties

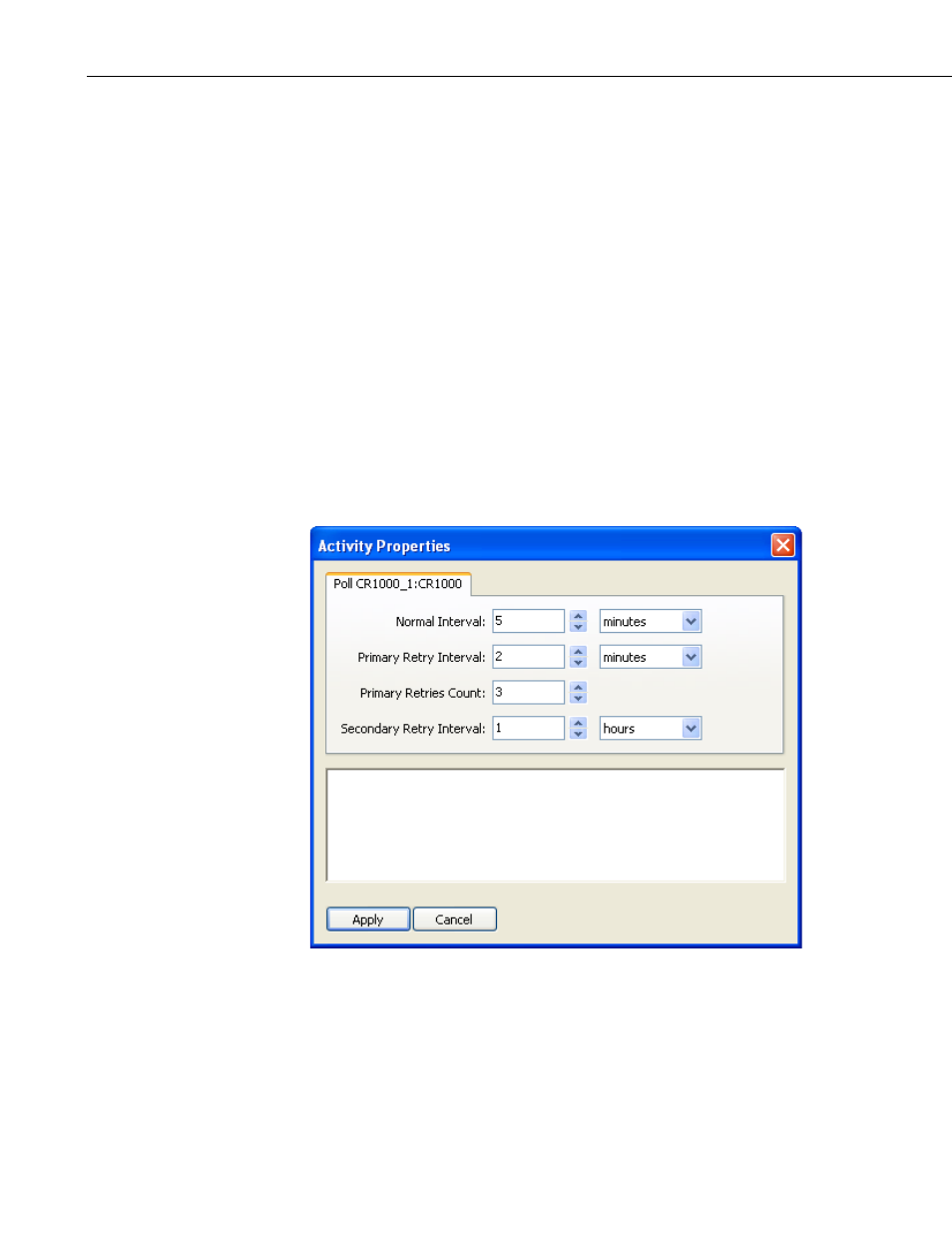

for an activity will specify the time interval for that activity. An example of
such a property sheet is shown below. After specifying the properties, press the
Apply button the add the activity to the model.
By default, activities between station devices are not represented on the
drawing canvas. They can be displayed by selecting Layers/Show Activity
Links from the Network Planner’s View menu. The activities associated with a
station can be seen in the station summary.
