62 System description

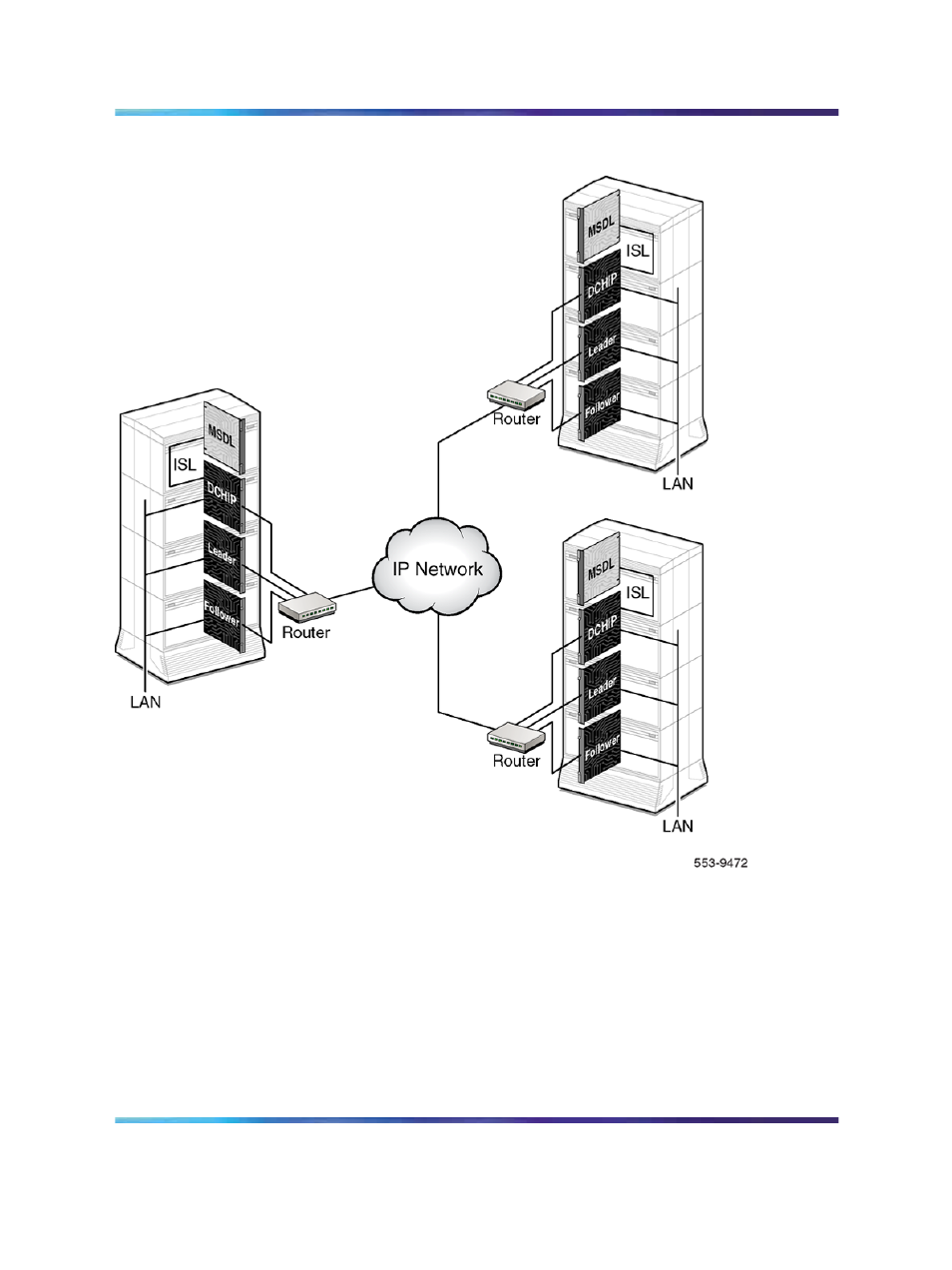

Figure 17
ITG configuration
ISDN signaling between the Meridian 1 and IP Trunk 3.01 (and later)
supports the delivery of Calling Line Identification (CLID) and feature
messaging. ISL DCH signaling provides the necessary signaling connection
over which data, including CLID and feature-specific messaging, can be
passed.
On Large Systems, the DCH interface to the Meridian 1/CS 1000M uses the
MCDN or QSIG GF protocols and their variants to transmit call and feature
control messages to the DCHIP card. Small Systems use only MCDN
