Configure IP Trunk 3.01 (and later) data in TM 3.1
247
Subnet mask = 255.255.255.0
Subnet = 23.11.42.0
IP Trunk card TLAN IP = 23.11.42.121
Subnet mask = 255.255.255.0
Subnet = 23.11.42.0
23.11.42.0 = 23.11.42.0.
Therefore, the SNMP traps will be sent to the TLAN router.
WARNING
Nortel recommends the SNMP client (that is, the TM 3.1 PC) not
be put on the TLAN subnet.
Placing the TM 3.1 PC on the ELAN subnet is a more secure
configuration. Additionally, incorrectly configuring the SNMP trap
IP address can adversely affect routing on the IP trunk card, which
can prevent the IP trunk card from sending or receiving calls.
Procedure 22
Configuring SNMP Traps/Routing and IP addresses tab
Step
Action
1
Click SNMP Traps/Routing and IPs tab. See
addresses/Routing table IP addresses tab" (page 247)
.

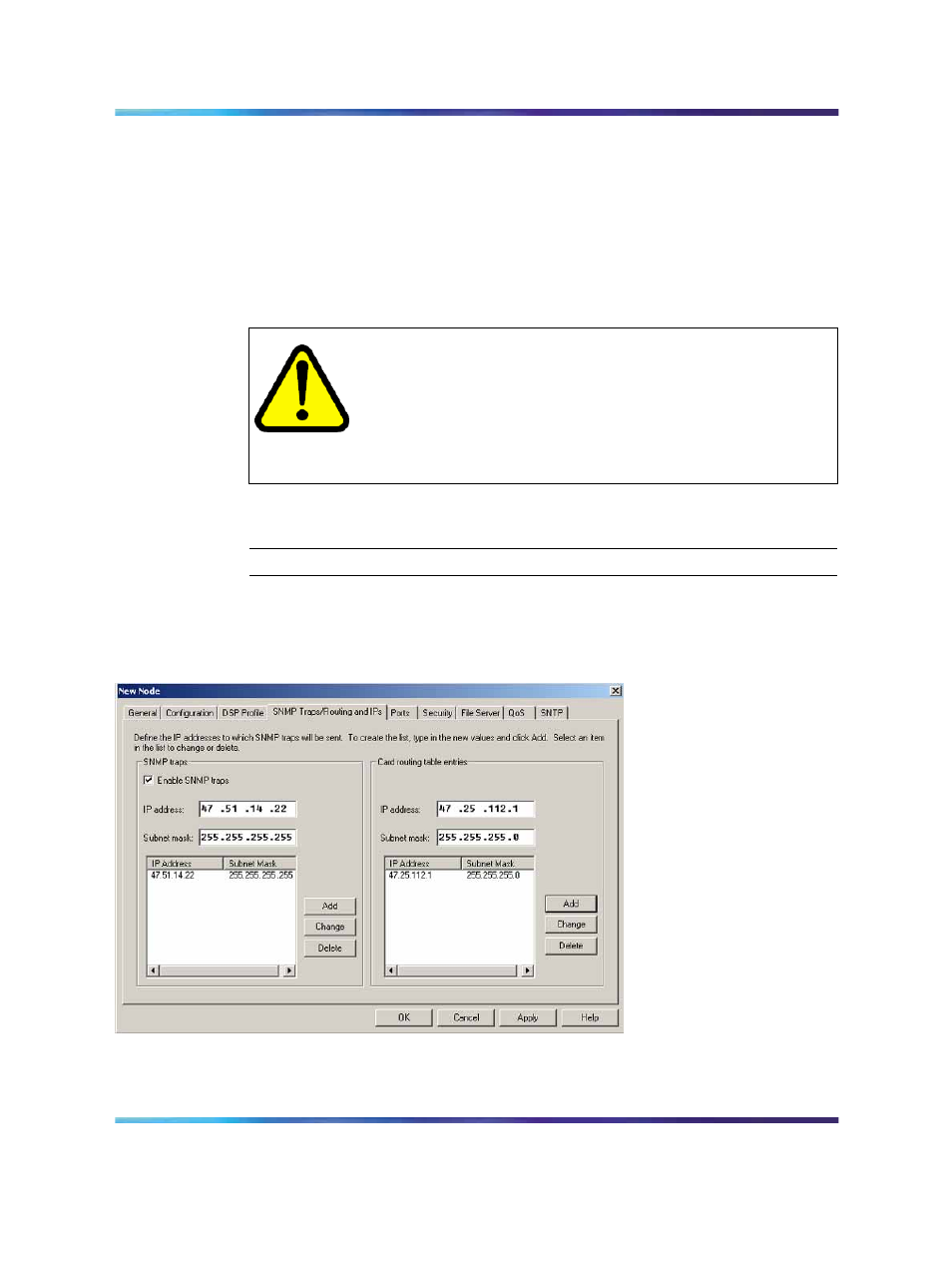

Figure 56
SNMP trap addresses/Routing table IP addresses tab
2
Check the Enable SNMP traps check box to enable sending of
SNMP traps to the SNMP trap destinations that appear in the list.
