Provisioning IP Trunk 3.01 (and later) in TM 3.1

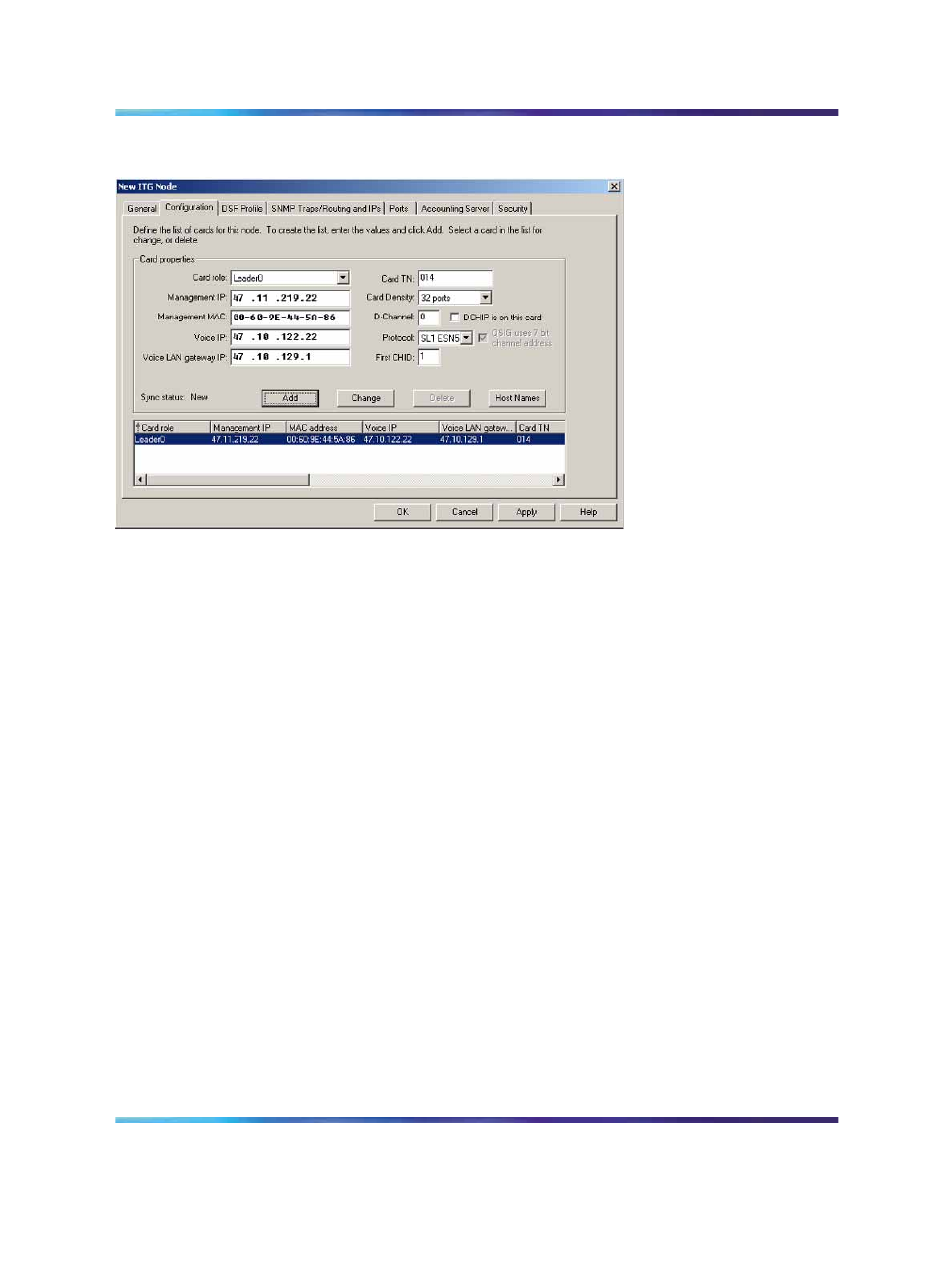

Figure 96
New ITG Node Configuration tab window with Leader 0 provisioned
In the window, where the saved card data is displayed, the column
width can be increased or decreased to see more or less information.
Use the scroll bar slider to see more information hidden from view. If
more than one card is listed in the window, selecting a card enables
TM 3.1 to display that card’s configuration in the applicable fields
in the data entry section.
Provision the DSP data
12
Click the DSP Profile tab of the New ITG Node window to provision
the DSP data. See
Figure 97 "New ITG Node – DSP Profile tab -
General sub-tab - Profile 1" (page 307)
.
The Control packets and Voice packets can be assigned a different
DIFFSERV/TOS value to assist in QoS in the IP network. Only
change these values if it is found to be necessary and ensure that
all network routers have been updated with the new TOS value. For
more information see
"IP Trunk 3.01 (and later) DiffServ support
