NTCW84LA and NTCW84MA upgrade cables

443

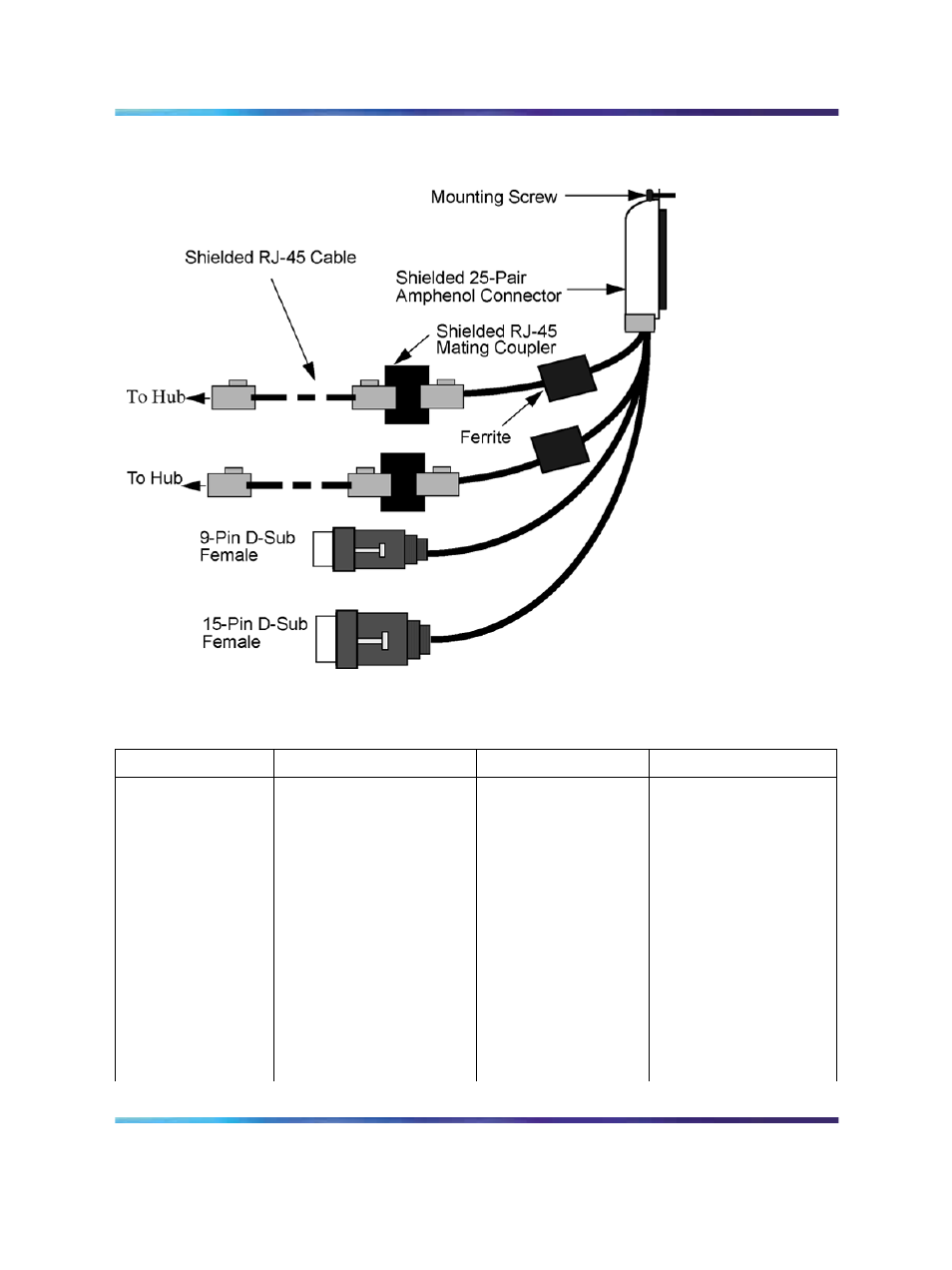

Figure 154
NTMF94LA upgrade cable

Table 77
NTMF94LA cable connections

I/O Panel: P1

Signal Name

P2, P3,P4

Color

P1-21

BSOUTB-

P2-2

RED

P1-22

BDTRB-

P2-4

GREEN

SGRND

P2-5

BROWN

P1-45

BSINB-

P2-3

BLUE

P1-46

BDCDB-

P2-1

ORANGE

P1-47

BDSRB-

P2-6

YELLOW

P1-25

SHLD GRND

P1-50

SHLD GRND

P1-18

RXDB+

P5-3

GRN/WHT

P1-19

TXDB+

P5-1

ORG/WHT
