538 Rev 3.0 • 25 Mar 10
B. Control Panels
NV9641
This is a sample information statement:
AES 3/4 on IRD5 is switched to AES 1/2 on IRD1.
Configurable Functions
The NV9640 can be configured to perform the following functions:
• Previous Source, Free Source, and Quick Source.
• Lock/Release and Protect/Release for both sources and destinations.
• Return to a pre-defined (or default) state.
• Hold breakaway levels.
• System salvos.
• Change Panel ID and button illumination.
• In a multiple-panel configuration, a Force Release of a locked or protected device can be con-
figured for each NV9640. However, note that Normal Release and Force Release are mutually
exclusive on the same panel.
Additional Features
The following additional features are provided:
• The NV9640 supports multiple source breakaways in X-Y mode. This lets you route multiple
sources to the same destination on different levels.
• The panel supports gang or dub switching in multi-destination mode. The operator may route
single or multiple sources to multiple destinations.
• In “Info” mode, the panel displays error messages, lock or protect status, tieline information,
swapped level status, etc.
If you assign an X-Y/Multi-Destination button on your panel, it is a toggle: press it once for X-
Y mode (it turns green) and press it again for Multi-Destination (it turns amber).
NV9641
The NV9641 is an X-Y/multi-destination control panel featuring 16 LCD function buttons and 2
up/down (scroll) buttons. In X-Y mode, it can function as a “button-per-source” panel. This 1RU
panel is organized as shown in Figure B-1.

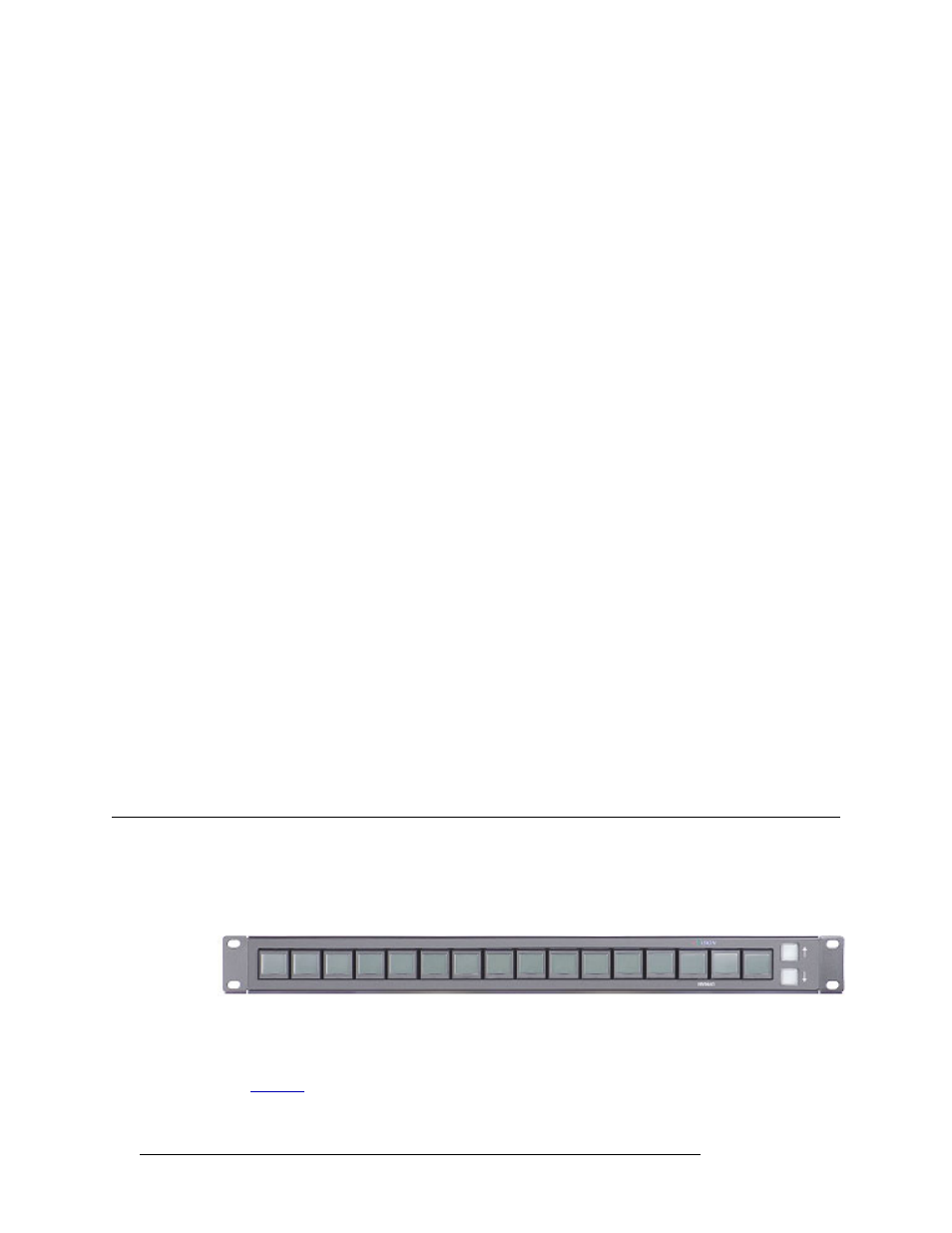

Figure B-1. NV9641 Front
At the rear, in addition to power, serial, and network connectors, is a 25-pin GPIO (tally) connector
that supports 4 optically isolated relay outputs and 8 optically isolated inputs.
See NV9641 on page 311 for information about using the ‘NV9641’ configuration page.
