Page 41: Configurations
NV9000-SE Utilities • User’s Guide
21
4. Configurations
Working With Configuration Files
Enter the first characters of a user name in the ‘User Filter’ field. The list only displays panels
with that assigned user.

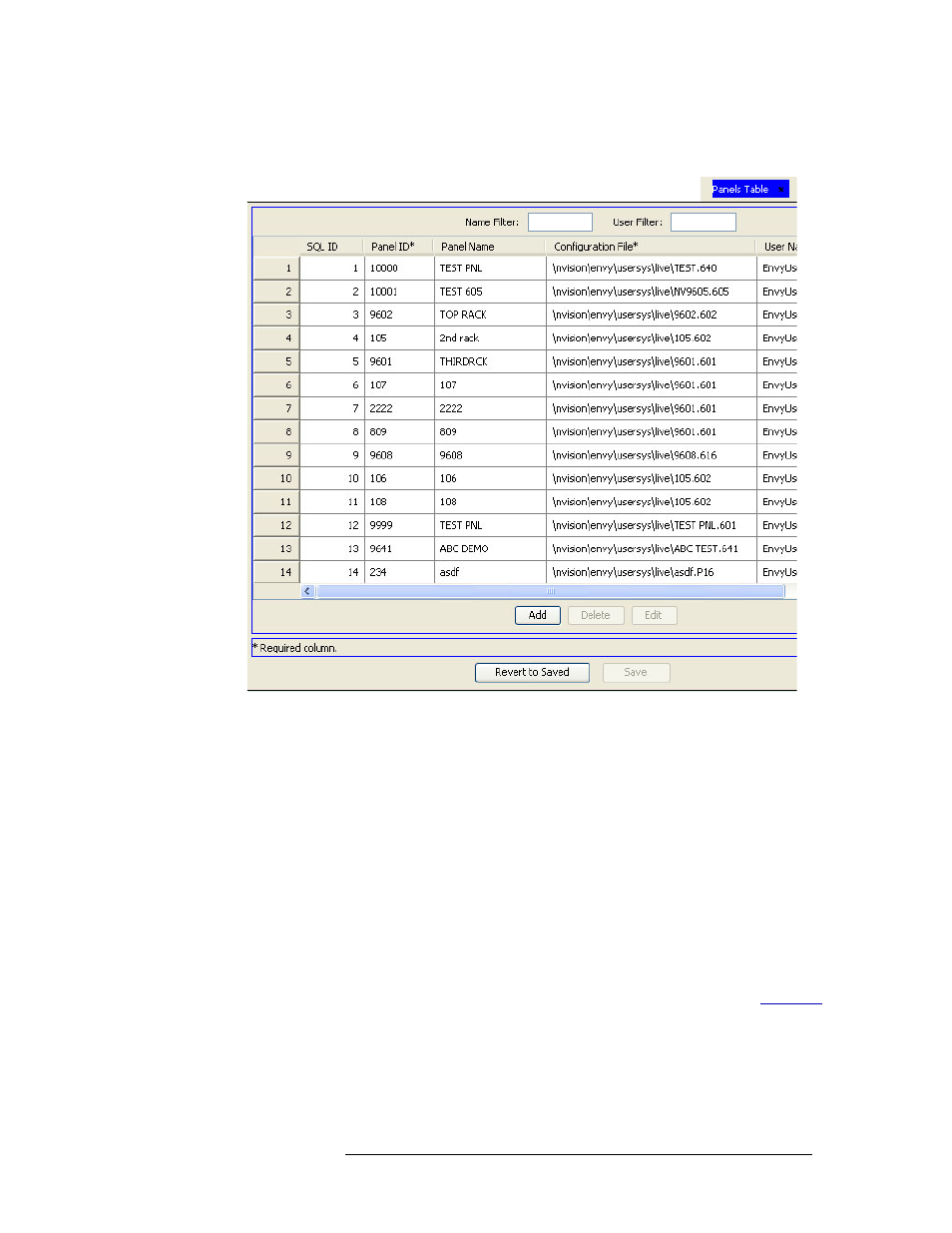

Figure 4-4. Panels Table
3 Locate the row listing the control panel being updated.
4 Click on the ‘Configuration File’ field to activate it, and from the drop-down list, select a new
configuration file.
5 Click
Save
.
Or
To revert to the previously saved configuration, click
Revert to Saved
.
6 Click
X
on the window title tab to close the table.
Saving Configuration Changes
A configuration is created whenever a control panel is added using the NV9000-SE. Similarly, con-
figurations are updated whenever an existing control panel is modified. To save an updated config-
uration, click
Save
located at the bottom of any control panel configuration page. (See
