NV9000-SE Utilities • User’s Guide 285
11. Control Panels
Adding a Control Panel
b Click a button in the control panel image. The ‘Multi-Destination Display Entry’ dialog box
appears:

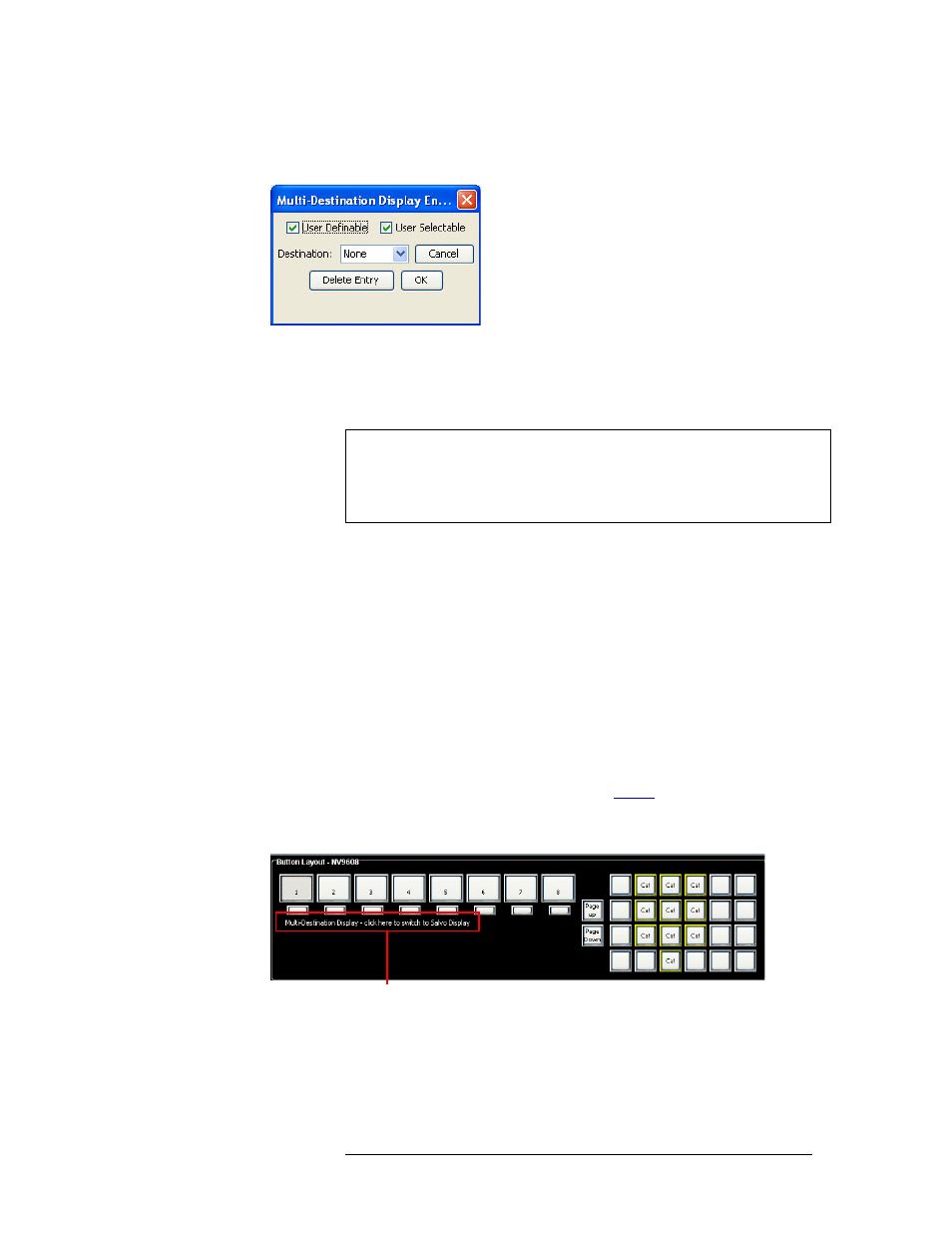

Figure 11-21. Multi-Destination Display Entry Dialog Box
c Select if the line is ‘User Definable’ and/or ‘User Selectable’:
‘User Definable’ allows the operator to change a destination that appears in the display area.
Uncheck the ‘User Definable’ check box if the destination is to remain fixed.
‘User Selectable’ allows the operator to select the device (using the selection buttons) and
preset a new source. Uncheck the ‘User Selectable’ if check box if the destination is to be
“view only.” In view-only mode, the user cannot route to the destination, but other control
panels and automation may.
d Select a ‘Destination’ from the drop-down list and click
OK
. The destination displays on the
selected line in the control panel window.
e Click OK to close the dialog box and save your changes.
Or
Click
Cancel
to close the dialog box without saving changes.
f Repeat steps b through e until all destinations you want are listed.
g To remove a destination, click
Delete Entry
on the dialog box.
6 Set up salvos as needed. For information about salvos, see Salvos on page 431:
a Click on the line of text ‘Multi-Destination Display - Click here to switch to Salvo Display’,
as shown in as shown in Figure 11-22. The text is a toggle.
Figure 11-22. Salvo Display Switch
Note When a multi-destination button is user definable, a
Destination Mode
but-
ton must be added to the control panel. This allows the user to select a new
destination from that location in the destination list using the category/
index buttons. If selected, the new destination is retained, even after reset.
Click to activate Salvo mode
