11. Control Panels
Adding a Control Panel
The ‘NV9601’ page appears:

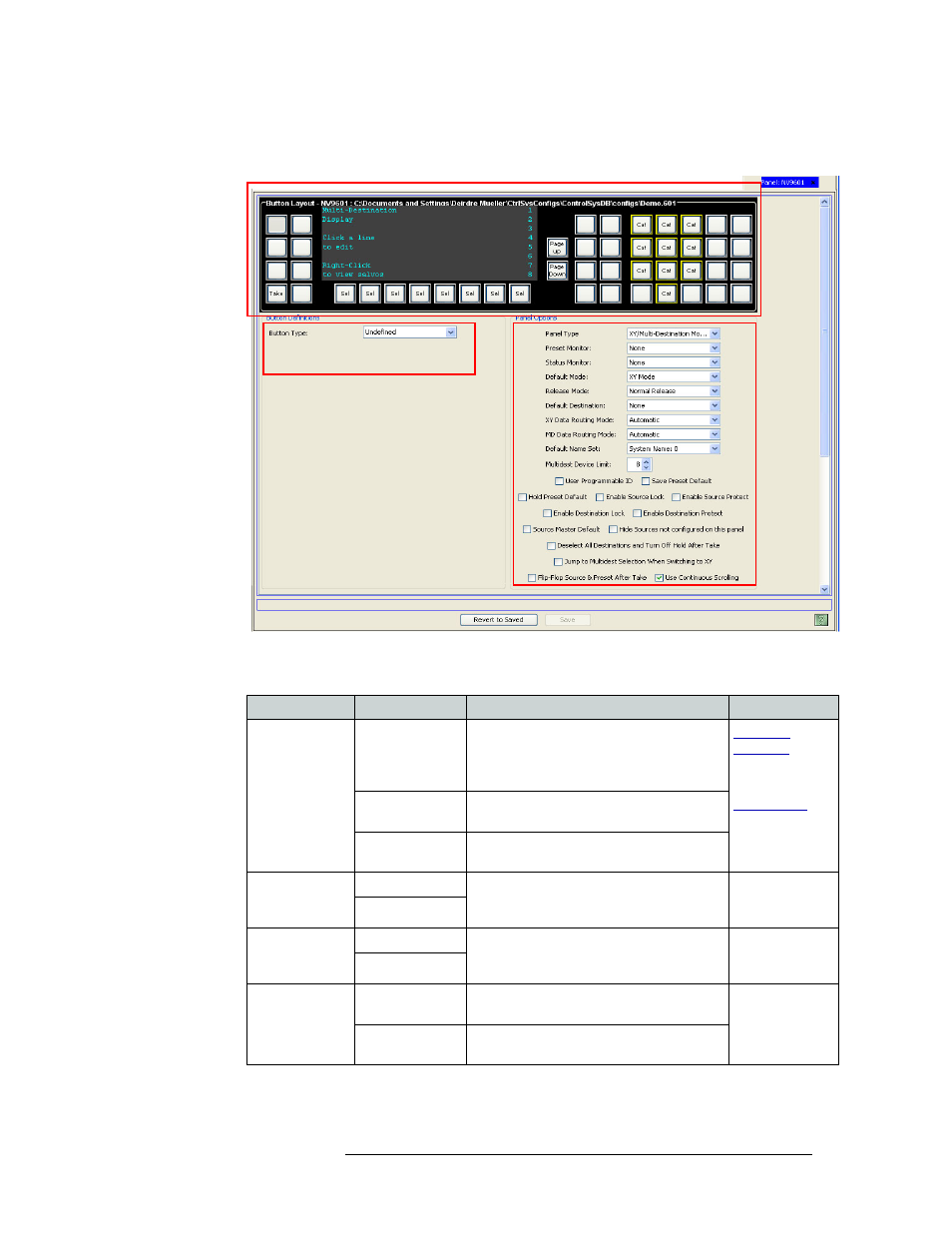

Figure 11-6. NV9601 Page
2 In the ‘Panel Options’ section, select control panel behaviors from the drop-down lists.
Button Layout section
Button Definitions section
Panel
Options
section
Field Option Description Related Topic
Panel Type XY / Multidest
Mode Panel can be used in either XY or multi-
destination (MD) modes. If this option is
chosen, place an XY/MD (multi-destination)
button on the control panel.
Modes of
Operation
on
page 357
and
Default State on
page 356
Multidest Mode
Only
Locks the control panel in MD mode. XY
mode cannot be accessed.
XY Mode Only Locks control panel in XY mode. MD mode
cannot be accessed.
Preset Monitor None Monitor the selected preset by defining a
destination that the preset source can be
routed to. —
‹device›
Status Monitor None Selected destination used as a monitor to
switch the source that is in ‘status’ mode for
the selected destination. —
‹device›
Default Mode XY Mode Starts the control panel in XY mode after a
reset. —
Multidest Starts the control panel in MD mode after a
reset.
