382 Rev 3.0 • 25 Mar 10
12. Master Control
Deleting Master Controls
From the ‘Hosts’ drop-down list, select the master control processor’s host. The list is automat-
ically reduced to display only master control processor having the same host as the one
selected.

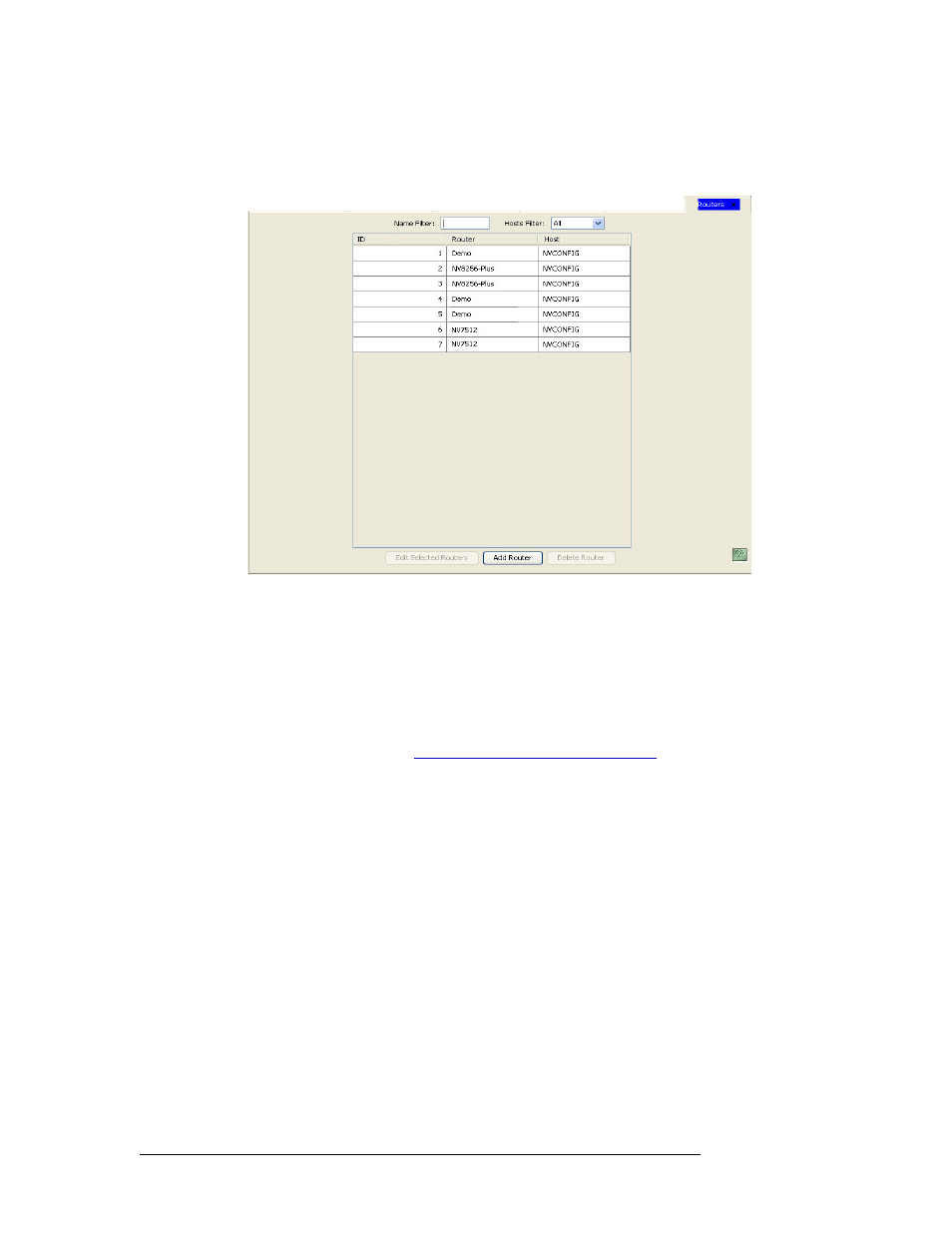

Figure 12-13. Routers Page
3 Click anywhere in the row listing the master control processor being deleted and click
Delete
Router
.
4 On the confirmation dialog box, click
Delete
.
5 Click
X
on the window title tab to close the page.
How to Delete a Router Using the ‘Routers’ Table
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the navigation area, select the ‘Views’ pane and then ‘Routers’. The ‘Routers’ table
appears, as shown in Figure 12-14.
