8. Level Sets
Managing Signal Types and Signal Binding
4 In the blank row, click on a cell in a column to activate it and enter information as follows:
5 Click
Save
.
6 Click
X
on the window title tab to close the table.
How to Bind a Signal Type to a Virtual Level
1 Launch NV9000-SE. (See Launching and Exiting the Application on page 12.)
2 From the Navigation area, select the ‘Views’ pane and then ‘Signal Types’. The ‘Signal Types’
table appears, as shown in Figure 8-33.
To narrow the list of virtual levels that display, enter the first characters of a virtual level in the
‘Virtual Level Filter’ field. The list is automatically reduced to display only virtual levels
matching that character string.
Or
Enter the first characters of a signal type in the ‘Signal Type Filer’ field. The list is automati-
cally reduced to display only signal types matching that character string.

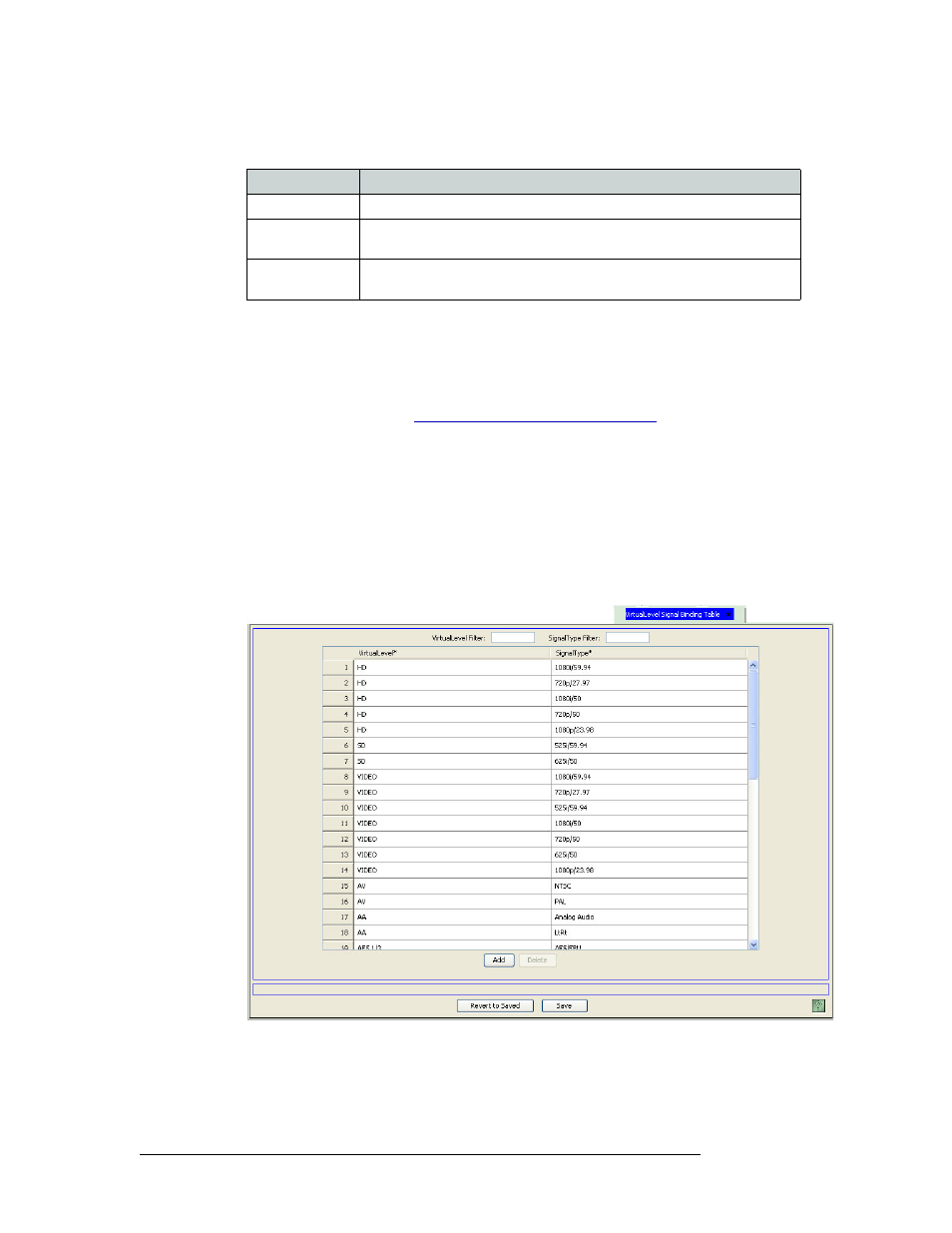

Figure 8-33. Virtual Level Signal Binding Table
3 Click
Add
. A blank row is added to the bottom of the list.
Column Description
ID Automatically assigned.
Name Enter a name for the signal type. Be sure the name is unique. Do not use any
punctuation marks or symbols.
Description Enter a description of the signal. It is strongly recommended that you use a
description commonly used in the industry.
