Grass Valley NV9000-SE v.3.0 - Manual (Page 181)

NV9000-SE Utilities • User’s Guide 161
9. Devices
Adding a Device
4 Click
Next
. The ‘Device Details’ page appears, as shown in Figure 9-2. The virtual levels that
compose the assigned level set display in the ‘Device Level Detail’ section.
Or
Click
Finish
. The device name is saved, but level sets, categories and other details are not
selected. To add details, locate the device and perform steps 5 through 7 as described in this
procedure. (See
How to Locate and View Devices Using the ‘Devices’ Page on page 168.)
Or
Click
Cancel to clear the fields without saving any information.

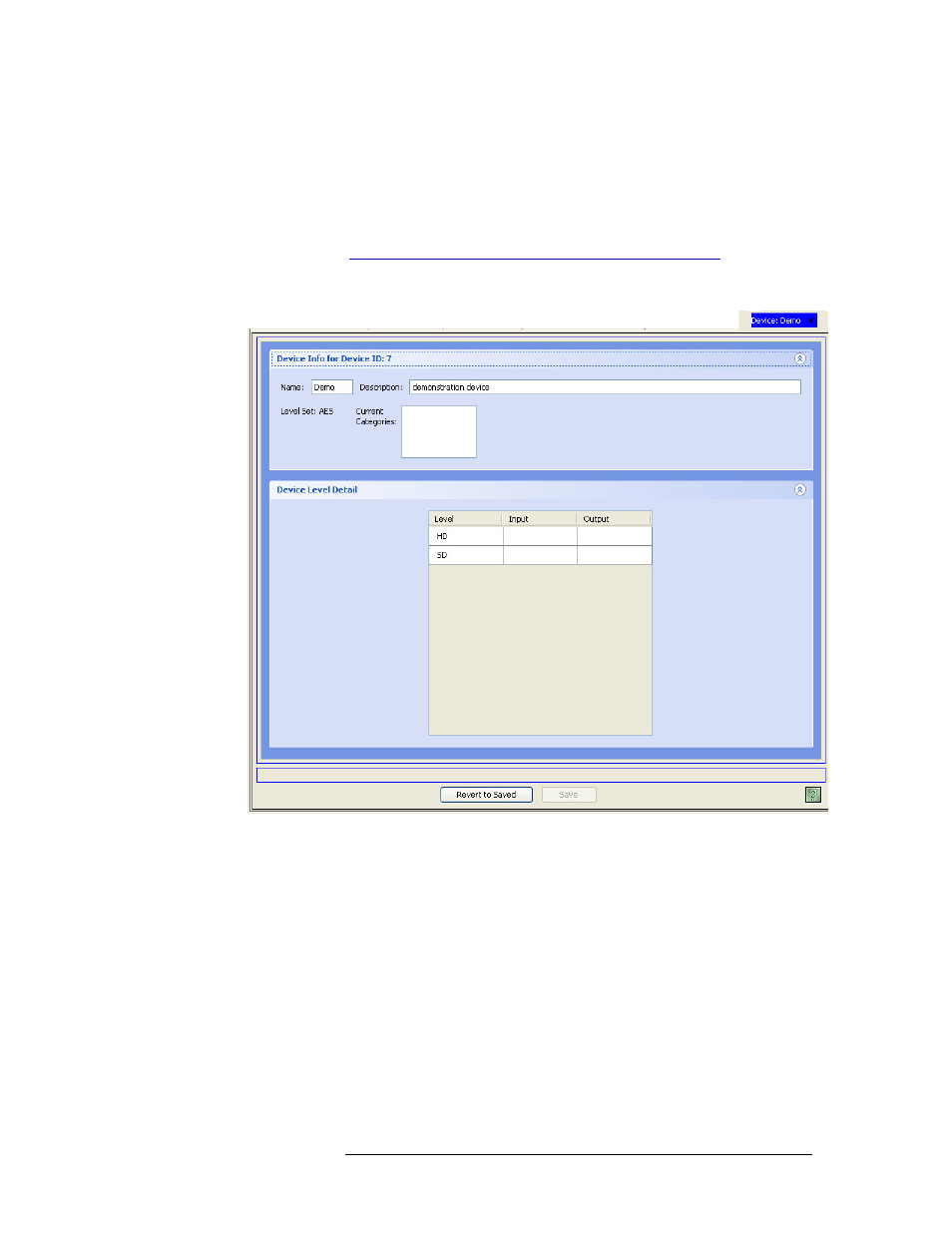

Figure 9-2. Device Details Page
5 Enter information in the fields provided. (See Figure 9-2.) At least one input/output connector
must be selected; connectors only need to be specified for the virtual levels the device is using.
