Clocking and Reset Structure
August 2014 Altera Corporation RapidIO MegaCore Function
User Guide
In Arria V, Cyclone V, and Stratix V devices, phy_mgmt_clk_reset must be asserted
with reset_n. However, each signal is deasserted synchronously with its
corresponding clock.
Figure 4–4 shows a circuit that ensures these conditions.
In systems generated by Qsys, this circuit is generated automatically. However, if
your Arria V, Cyclone V, or Stratix V RapidIO IP core variation is not generated by
Qsys, you must implement logic to ensure that reset_n and phy_mgmt_clk_reset are
driven from the same source, and that each meets the minimal hold time and
synchronous deassertion requirements.
For more information about the requirements for reset signals, refer to Chapter 5,
Signals .
Reset Requirements for Arria 10 Variations
To implement the reset sequence correctly for your RapidIO IP core configured on an
Arria 10 device, you must connect the tx_analogreset, tx_digitalreset,
rx_analogreset
, and rx_digitalreset signals to an Altera Transceiver PHY Reset
Controller IP core. User logic must drive the following signals from a single reset
source:
■ RapidIO IP core reset_n (active low) input signal.
■ Transceiver PHY Reset Controller reset (active high) input signal.
■ TX PLL mcgb_rst (active high) input signal. However, Arria 10 device
requirements take precedence. Depending on the TX PLL configuration, your
design might need to drive TX PLL mcgb_rst with different constraints.
User logic must connect the remaining input reset signals of the RapidIO IP core to the
corresponding output signals of the Transceiver PHY Reset Controller IP core.
f
For information about the Altera Transceiver PHY Reset Controller IP core, refer to
the
Arria 10 Transceiver PHY User Guide .

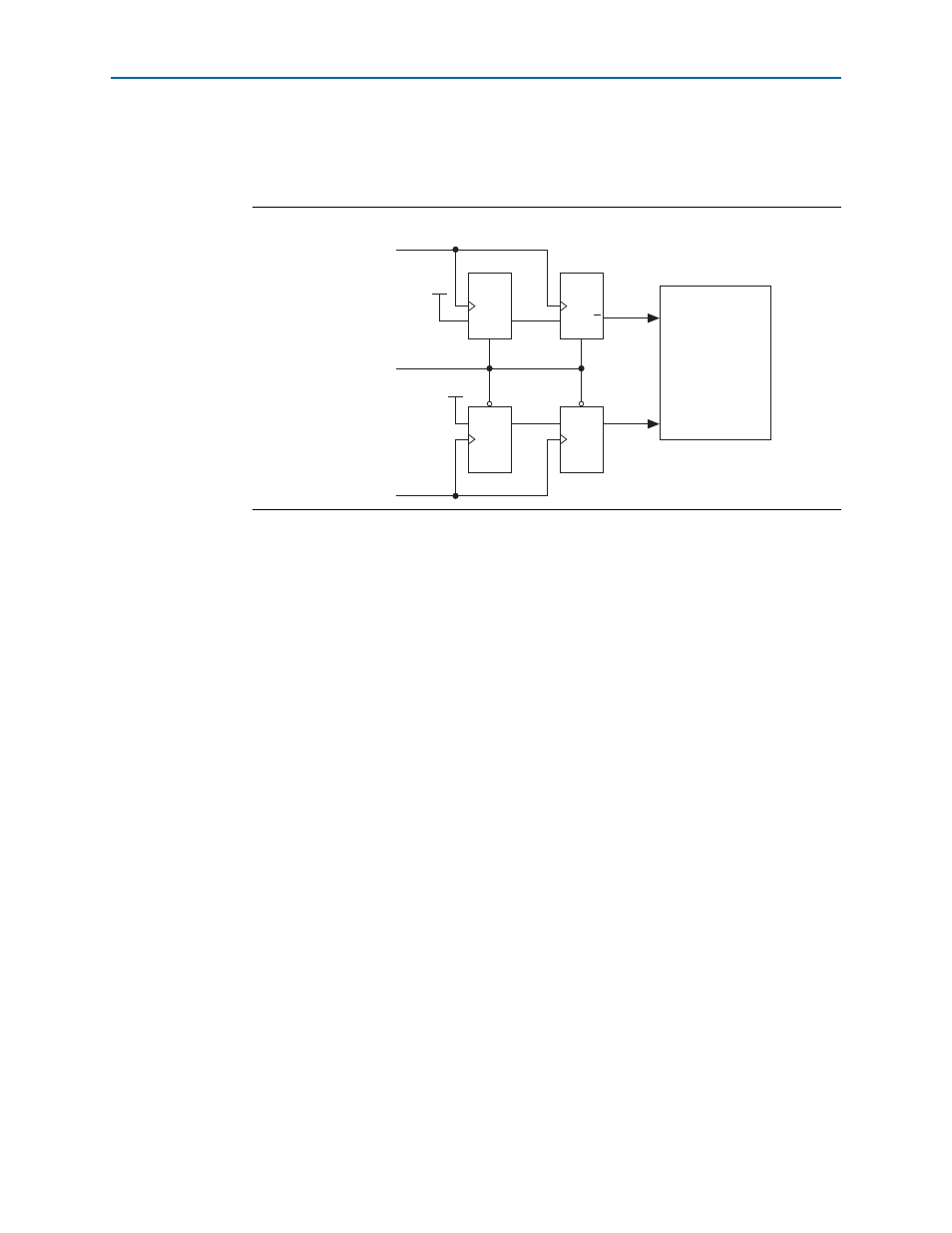

Figure 4–4. Circuit to Also Ensure Synchronous Assertion of phy_mgmt_clk_reset with reset_n
D D Q Q
rst_n rst_n
V
CC
sysclk
phy_mgmt_clk
rst
reset_n
RapidIO
IP Core
D D Q Q
rst rst
V
CC
phy_mgmt_clk_reset
