4–54 Chapter 4: Functional Description
Logical Layer Modules
RapidIO MegaCore Function August 2014 Altera Corporation
User Guide
■ Error Management module that reports detected errors, including the following
errors:
■ Unexpected response (a response packet was received, but its TransactionID
does not match any pending request that is waiting for a response).
■ Request time-out (an outbound DOORBELL request did not receive a response
from the target device).
Preserving Transaction Order
Your RapidIO IP core Doorbell module has a Tx staging FIFO in any of the following
situations:
■ You select Prevent doorbell messages from passing write transactions in the
RapidIO parameter editor.
■ Your RapidIO IP core targets an Arria 10 device.
If the module has a Tx staging FIFO, each DOORBELL message from the Avalon-MM
interface is kept in the Tx staging FIFO until all I/O write transactions that started on
the write Avalon-MM slave interface before this DOORBELL message arrived on the
Doorbell module Avalon-MM interface have been transmitted to the Transport layer.
An I/O write transaction is considered to have started before a DOORBELL transaction if
the io_s_wr_write and io_s_wr_chipselect signals are asserted while the
io_s_wr_waitrequest
signal is not asserted, on a cycle preceding the cycle on which
the drbell_s_write and drbell_s_chipselect signals are asserted for writing to the
Tx Doorbell
register while the drbell_s_waitrequest signal is not asserted.
If you do not select Prevent doorbell messages from passing write transactions in
the RapidIO parameter editor, the Doorbell Tx staging FIFO is not configured in the
RapidIO IP core.

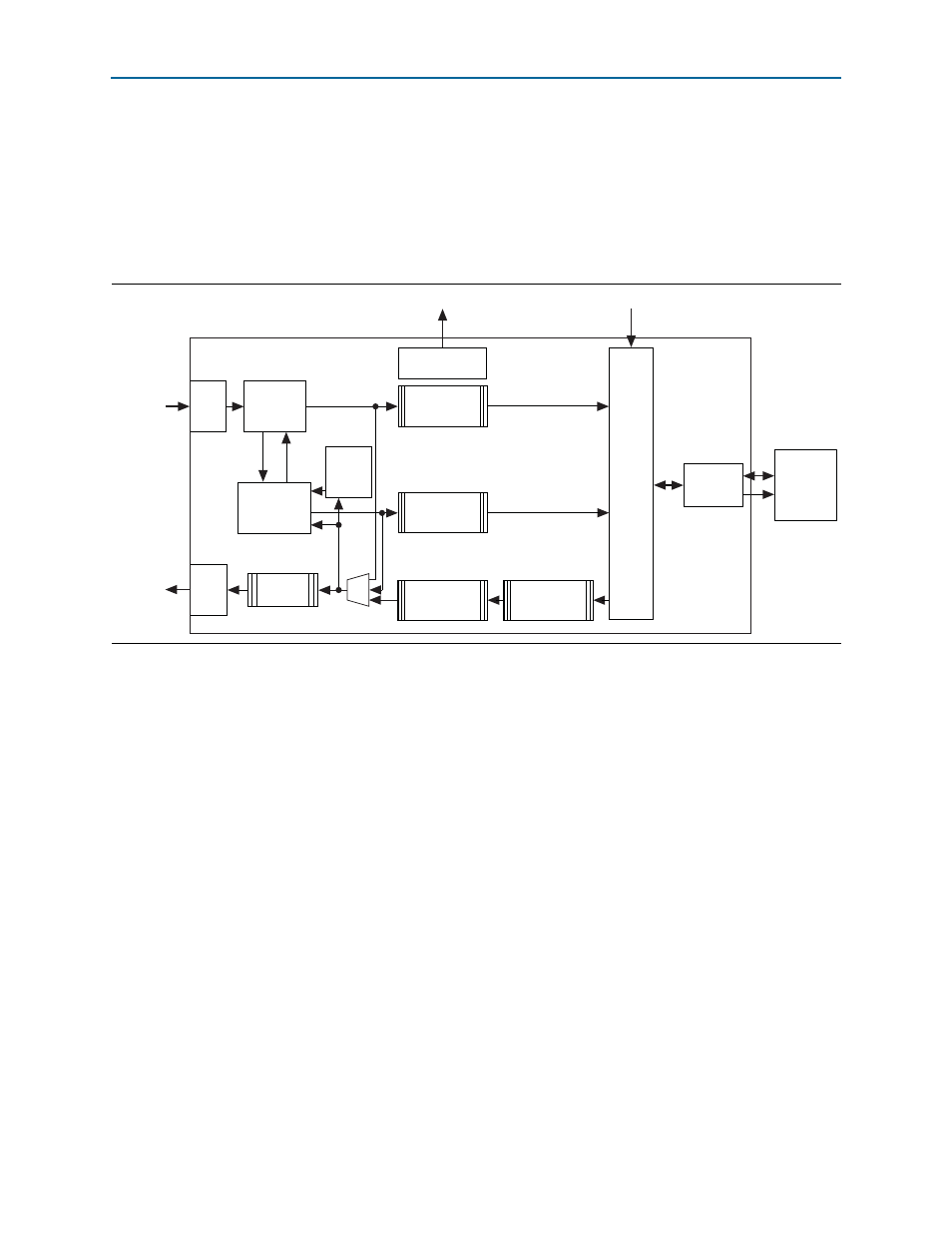

Figure 4–29. Doorbell Module Block Diagram
Sink Rx Control
Source
Acknowledge
RAM
Doorbell Logical Module
From
Transport
Layer
Module
To
Transport
Layer
Module
To Register Module From I/O Slave Module
Error
Management
Tx Output
FIFO
Rx
FIFO
IRQ
Avalon-MM
Slave
System
Interconnect
Fabric
Tx
FIFO
Tx Staging
FIFO
Tx Completion
FIFO
Tx
Timeout
Register
and
FIFO
Interface
