Chapter 12 Installing, Removing, and Replacing
Adding, Removing, and Replacing FC I/O Blades
Dell PowerVault ML6000 User’s Guide 365
4
Carefully align the FC I/O blade with the guide slots in the bay. The
status LEDs must be at the bottom.
5
Evenly apply pressure to both sides of the blade and slide it into the
9U Library Expansion Module until the latch hooks begin to move
toward the middle of the blade. Push the latch hooks toward the

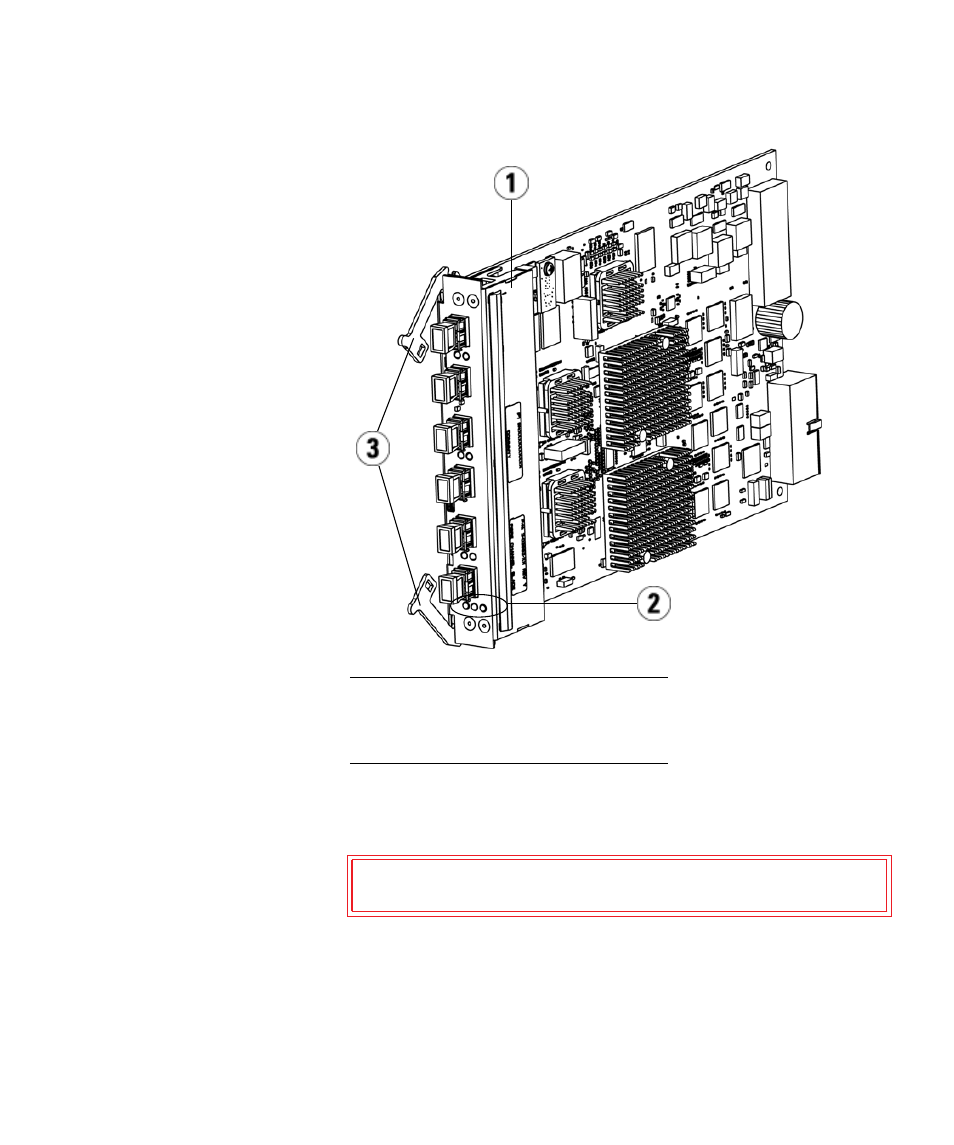

1 FC I/O blade
2 LEDs
3 Latch hooks, open
Caution:
Forcing the blade into the bay can cause the pins to
bend.
