Dell PowerVault ML6000 User Manual
Page 351

Chapter 12 Installing, Removing, and Replacing
Installing the Library in a Rack
Dell PowerVault ML6000 User’s Guide
351
8
Install the right rack ear. At the front of the library:
a
Open the I/E station door. At the lower right corner of the
module is a vertical slot. Insert the hinge of the right rack ear into
the slot and then position the holes of the rack ear flush with the
rack rail.
b
Using two M5 thumbscrews, fasten the rack ear to the rack. The
thumbscrews should thread through the nut clips (or cage nuts)
and fasten completely and evenly.

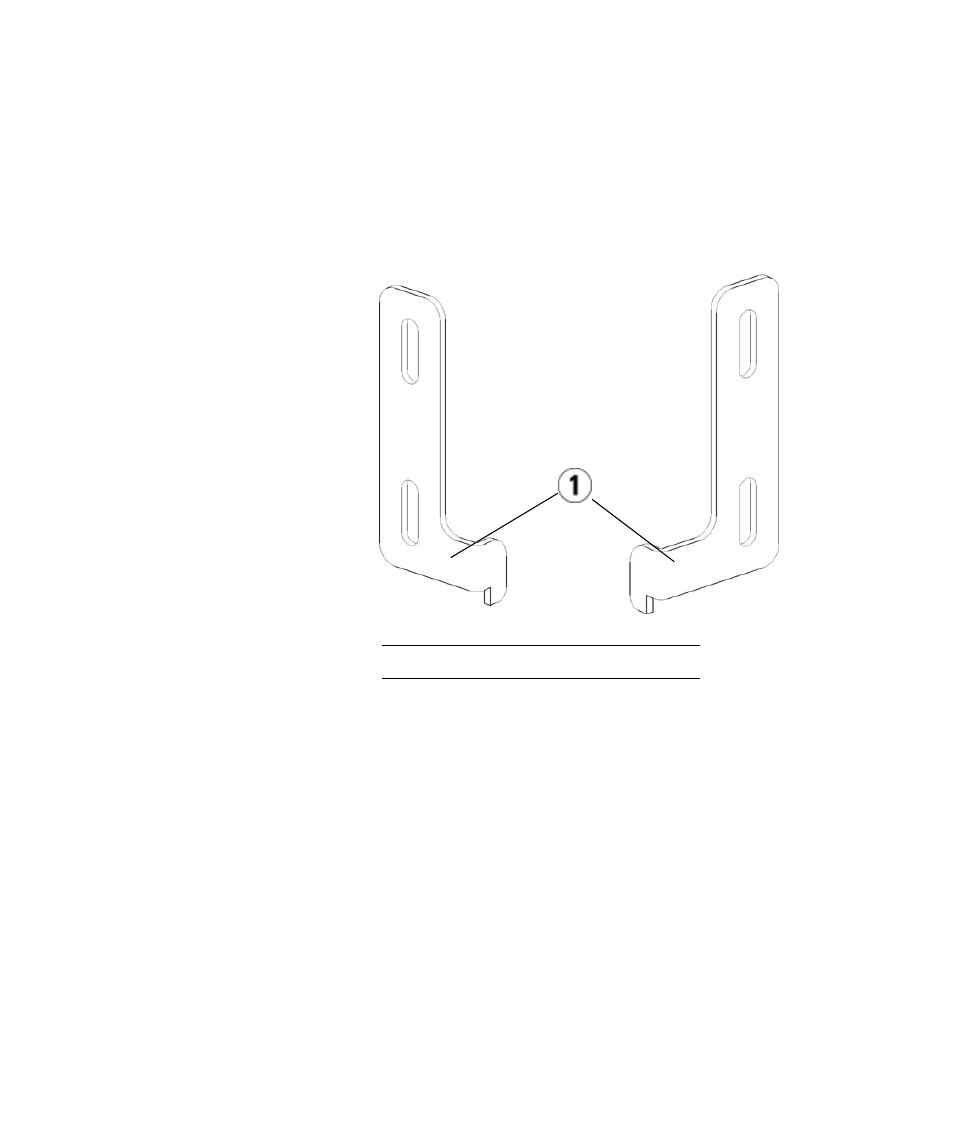

1
Hinge of rack ears
