Dell PowerVault ML6000 - Manual (Page 225)

Chapter 12 Installing, Removing, and Replacing
Cabling the Library
Dell PowerVault ML6000 User’s Guide 225

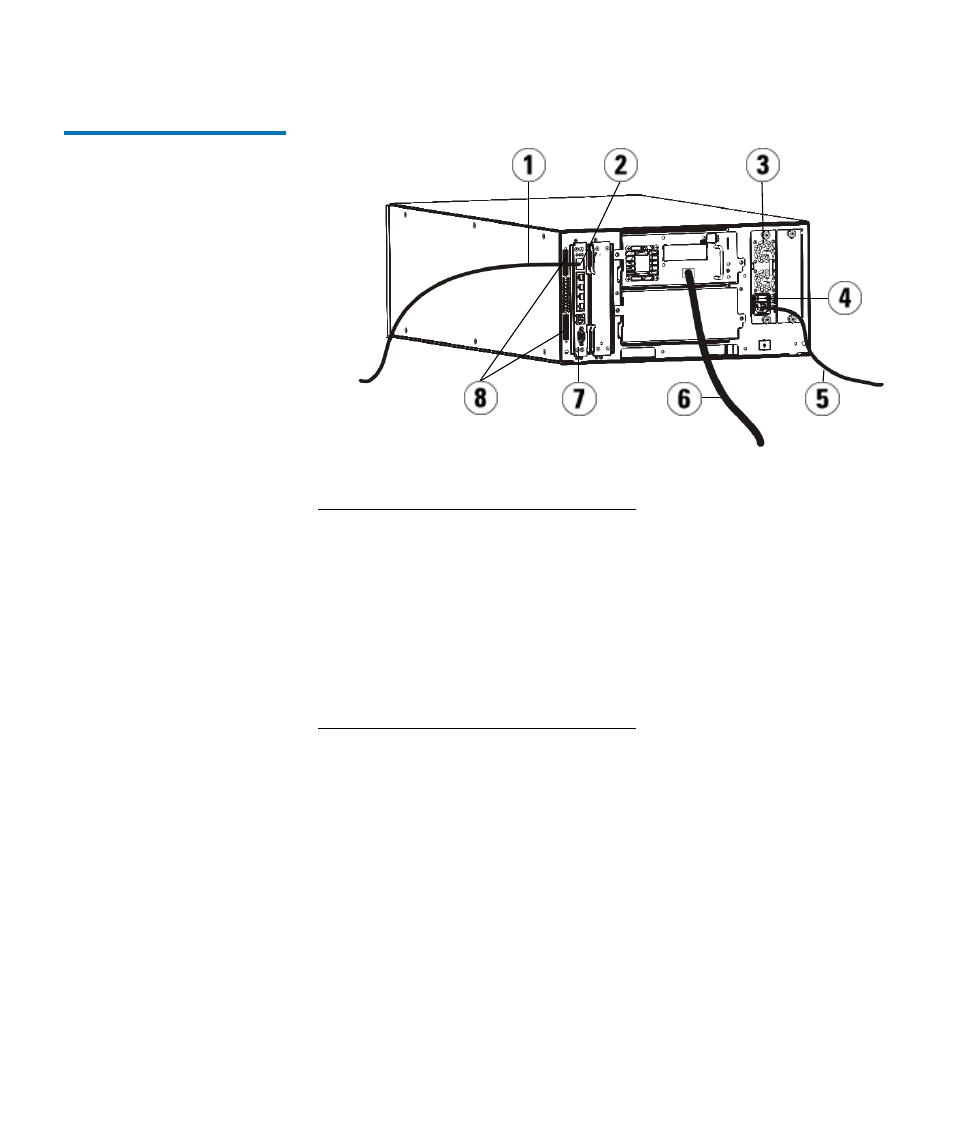

Figure 26 Stand-Alone 5U
Library Control Module Fibre
Channel Cabling
1 Ethernet cable to customer network
2 GB Ethernet port
3 Power supply
4 Rear power switch
5 Power cord
6 Fibre cable to host
7 Library control blade (LCB)
8 Module terminators
