4–13 Installing PanelView 1400e Terminals
Publication 2711E-6.17 – November 1998

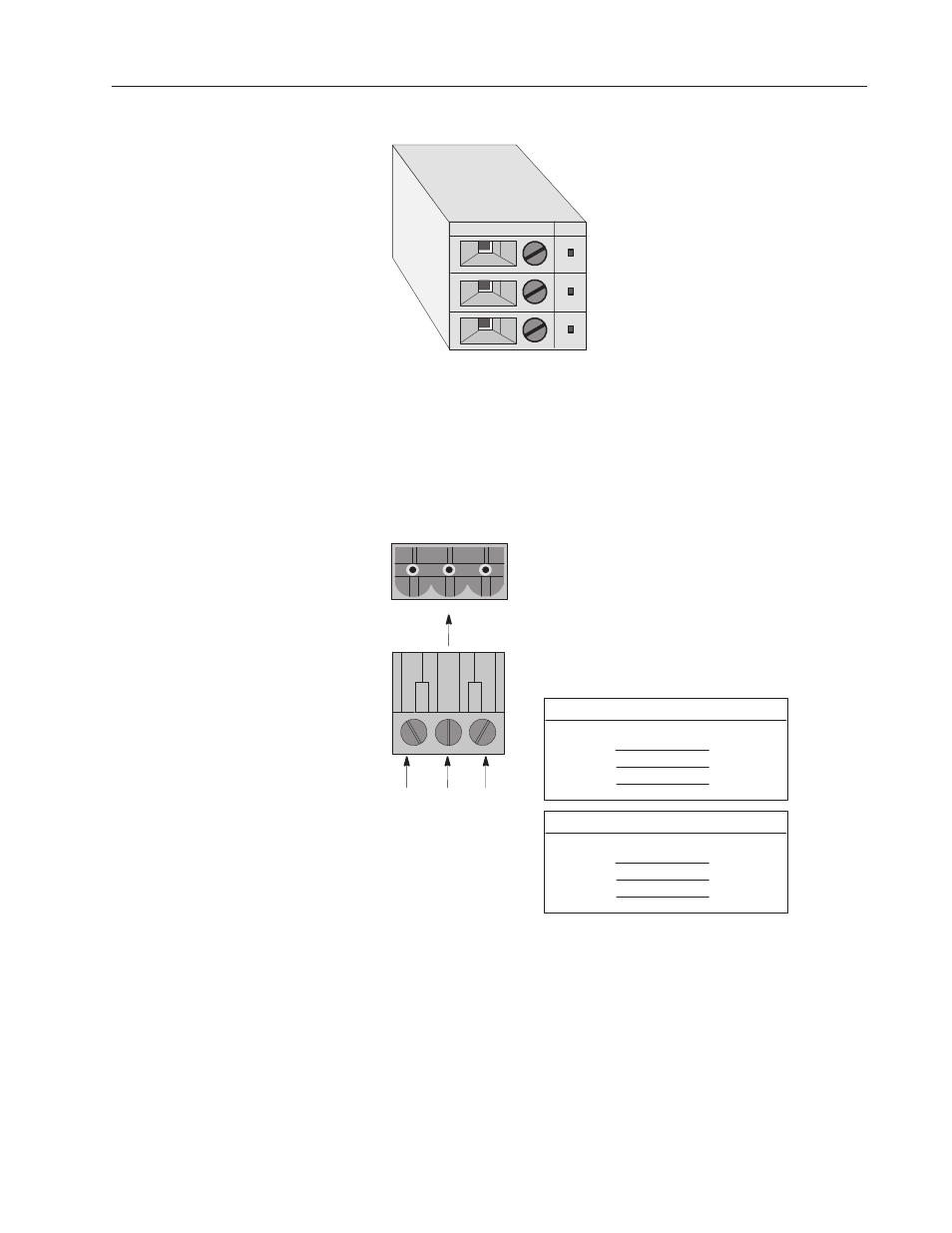

Figure 4.11 The Remote Alarm Connector
21162
N/O
COM
N/C
Connecting a Terminal to Your PLC System
Figure 4.12 shows the Remote I/O and DH+ connector on the back
of the terminal. This connects the terminal to the host PLC over
Remote I/O or DH+.
Figure 4.12 Remote I/O and DH+ Connector
20163
1
On rear of PanelView1400e Terminal
(Refer to Figure 4.1)
Remote I/O and DH + Plug
provided with installation kit
2 SHIELD
Remote I/O
PanelView Terminal PLC
Shield Shield
Pin1 Blue Pin 1 Blue
Pin 2 Clear Pin 2 Clear
DH+
PanelView Terminal PLC
Shield Shield
Pin1 Clear Pin 1 Clear
Pin 2 Blue Pin 2 Blue
