Rockwell Automation 2711E-xxxx User Manual PanelView 1000e, 1200e 1400e User Manual
Page 106
5–22
Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998

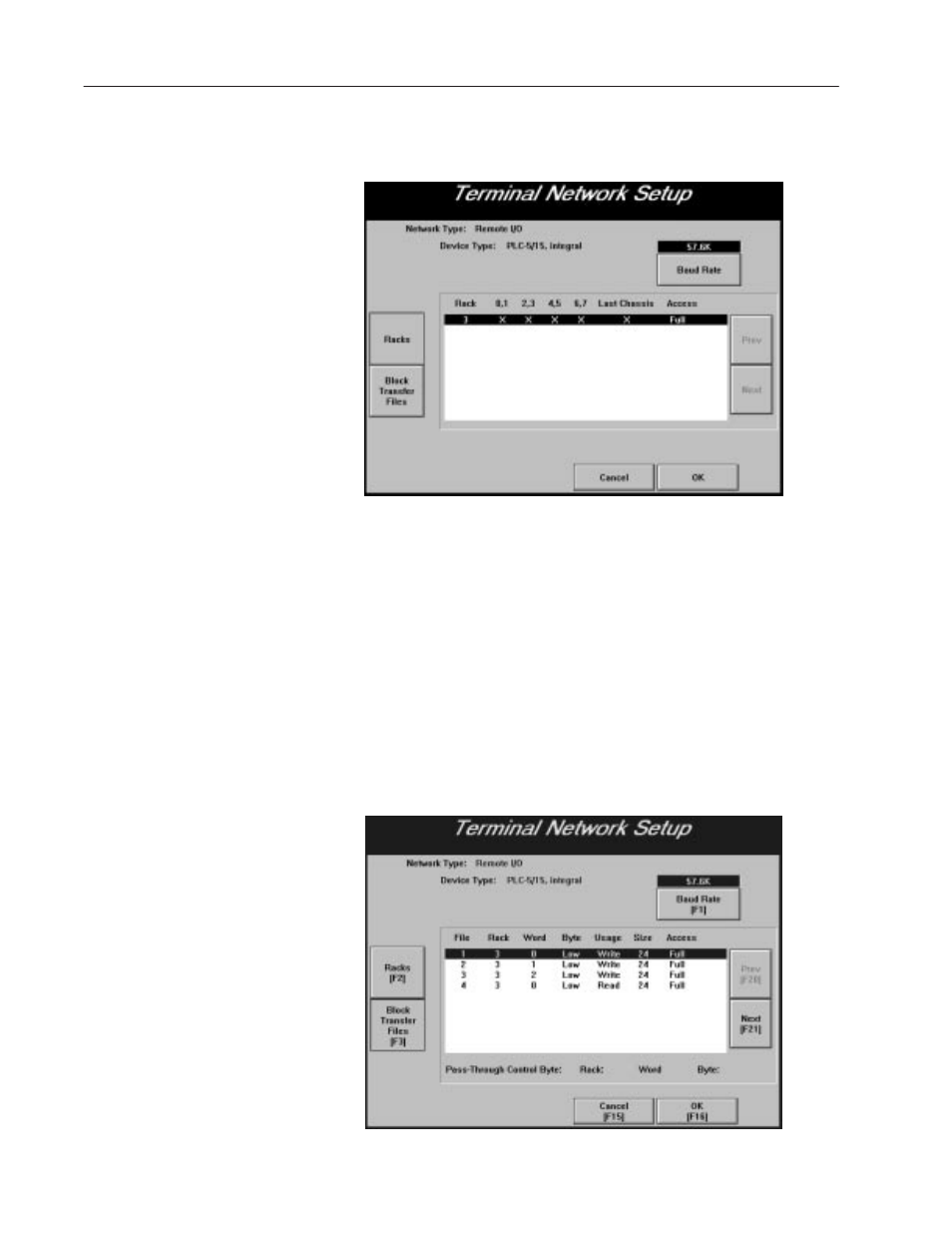

For PanelView touch screen terminals, the following Terminal
Network Setup screen appears.
The Rack Number, Module Groups, Last Chassis (Yes or No), and
Access (Full or Listen Only) values are displayed. Use the Prev
(Previous) and Next buttons to scroll through the entries in this
window.
To display Block Transfer assignments for Remote I/O:
"
Choose the Block Transfer Files button.
Your PLC Type, baud rate, Block Transfer File number, Rack
number, Word, High/Low Byte, File Size, Usage, and Access (Full
or Listen Only) values are displayed. Use the Prev and Next buttons
to scroll through the entries in this window.
